Section 10 STEERING SYSTEM
Subsection 01 (STEERING SYSTEM)
Ensure moto seat works and locks adequately (if
so equipped).
Perform steering alignment.

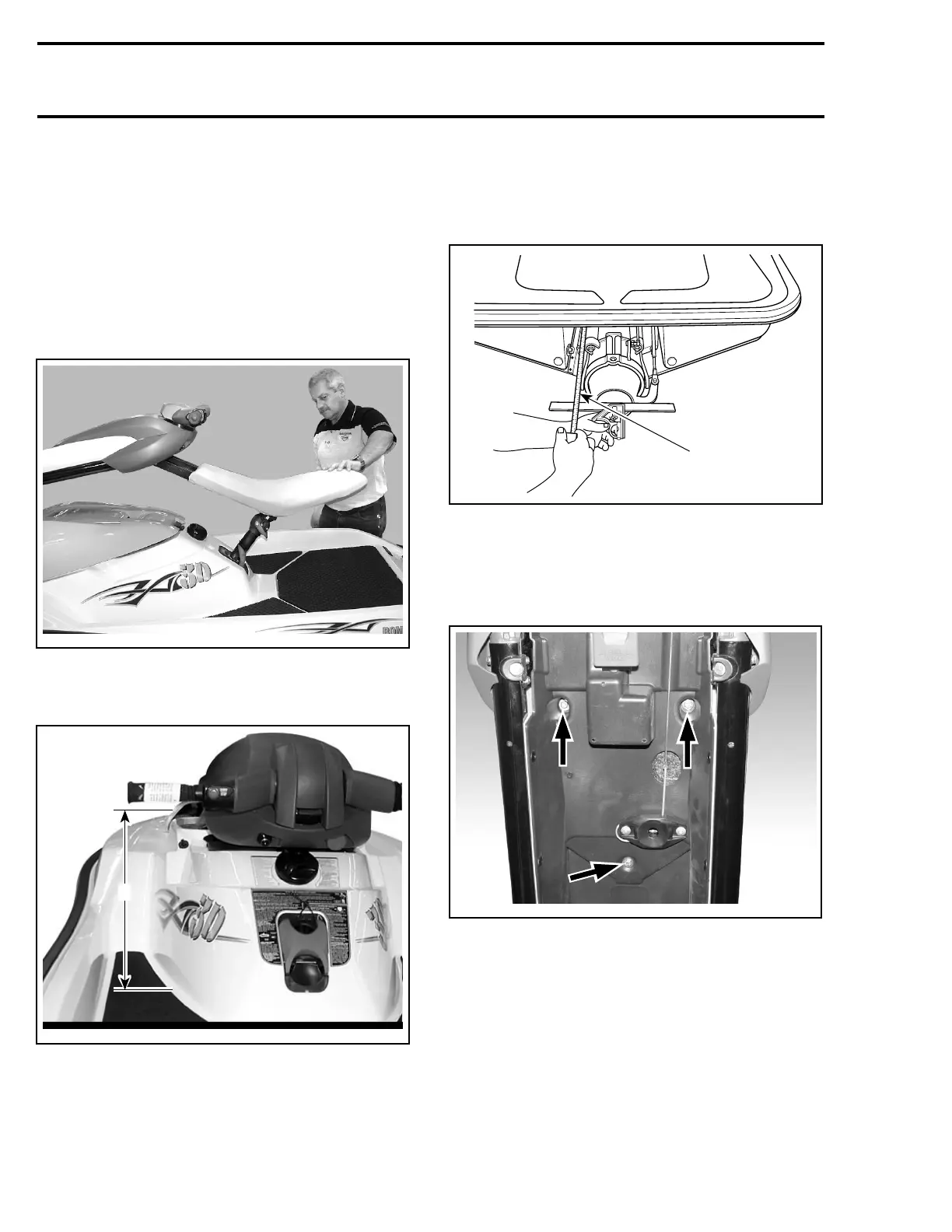

STEERING ALIGNMENT
Alignment is to be performed when moto seat is
deployed and installed or with the steering resting
on the engine cover; so it will not move during the
procedure.
F22L0PA
Position handlebar in straight ahead position by
measuring each side the distance from handlebar
grip end to floorboard.
F22J06A
1
1. Measuring handlebar grip end/floorboard distance
Check jet pump nozzle position by placing a
straight edge on nozzle outer end. Measure the
distance on each side of the straight edge. It
must be equalled.
F01J5ZA
1
TYPICAL
1. Measure the distance on each side of the straight edge
If necessary, steering alignment adjustment
should be performed at steering cable support.
Remove top cover.
F22K0YA
Loosen 2 bolts retaining block at cable support.
Turn adjustment nut as required.
302 smr2005-066
