Section 06 ENGINE MANAGEMENT (RFI)
Subsection 03 (COMPONENT ADJUSTMENT, INSPECTION AND REPLACEMENT)

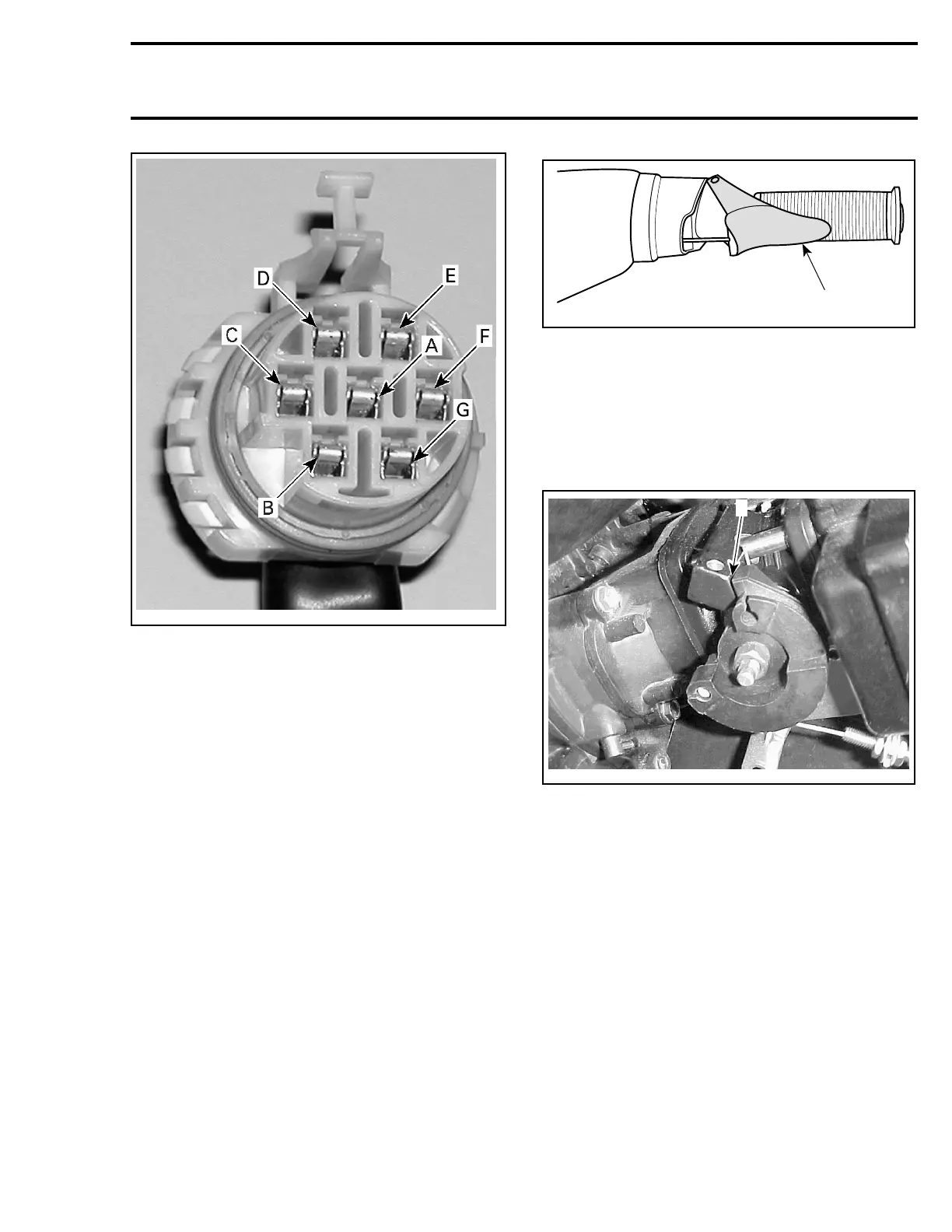

smr2005-056-003_a
NOTE: For more details on VCM connectors ser-
vicing, refer to ELECTRICAL CONNECTORS AND
WIRING DIAGRAMS section.
ADJUSTMENT
IDLE SPEED
Idle speed is controlled by the ECM. There is no
mechanical adjustment to perform.
CAUTION: The throttle stopper screw is tam-
per proof. Breaking the seal and changing the
adjustment will lead to poor engine operation
and possible engine damaged. If this occurs,
the throttle body must be replaced, as it is fac-
tory calibrated.
NOTE: Idle speed in water is 1550 ± 100 RPM.
THROTTLE CABLE
GTI RFI Series
Fully depress throttle lever. Lever must touch
handlebar grip without causing strain to cable or
brackets.
F01K08A
1
1. Must touch handlebar grip
Ensure throttle plate is fully open.
Fully depress throttle lever and hold. Throttle
lever stopper should almost contact throttle body.
To ensure there is free play, apply a light pres-
sure on the throttle plate, a slight play should be
obtained.
F22G03A
1
1. Free play here
CAUTION: If there is no free-play at idle posi-
tion, it may cause poor idling and startability.
Improper cable adjustment will cause strain on
cable and/or damage cable bracket or throttle
lever at handlebar. Fault code(s) may be gen-
erated.
Ensure to reset the Closed TPS. See below.
3D RFI Series
NOTE: For throttle cable replacement, refer to
STEERING SYSTEM.
smr2005-056 129
