Section 06 ENGINE MANAGEMENT (RFI)
Subsection 03 (COMPONENT ADJUSTMENT, INSPECTION AND REPLACEMENT)

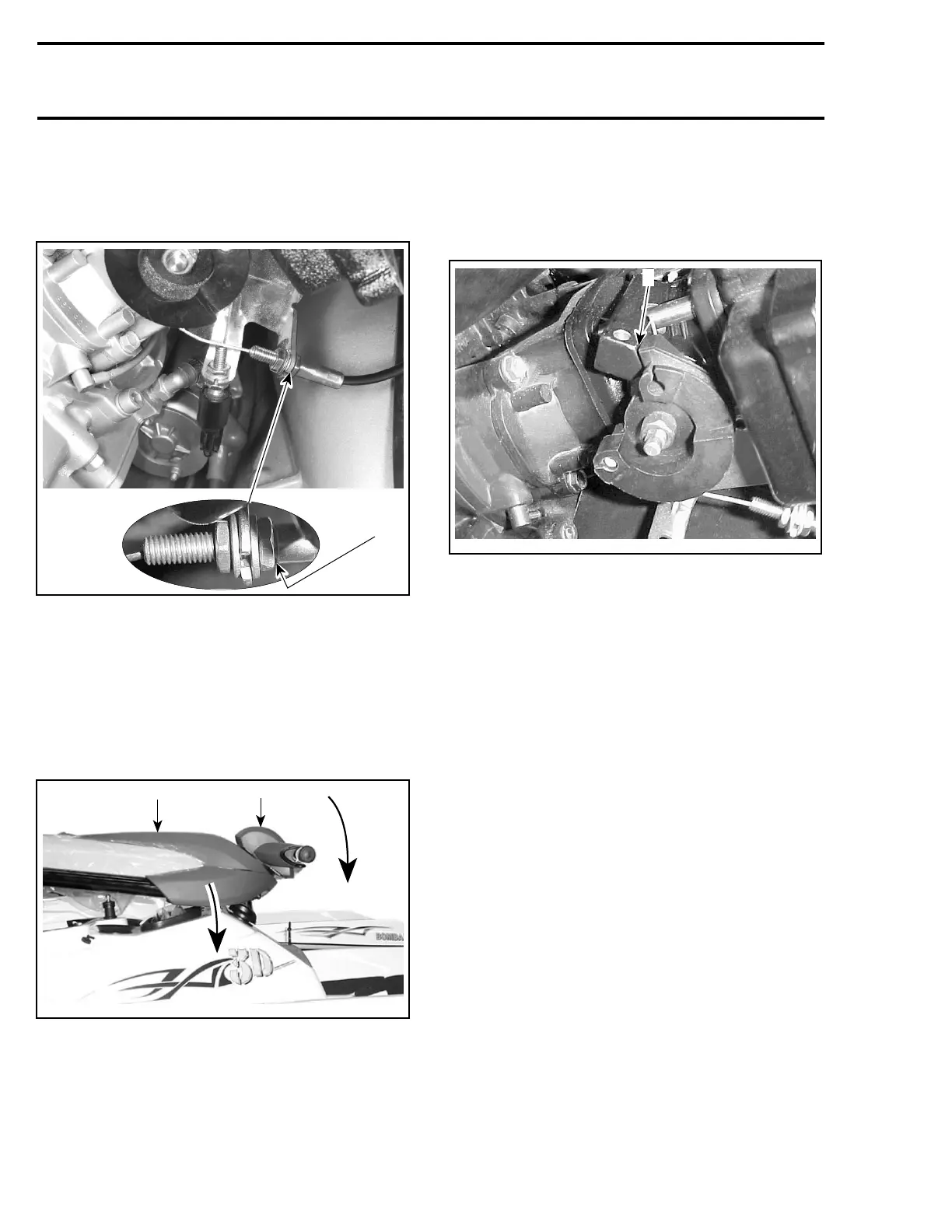

Right throttle cable adjustment is to be done at the
adjuster on top of steering pole. However, first
ensure adjuster at throttle body is fully screwed
in.
1
F22R06A
1. Adjuster fully screwed in
Otherwise, set it. Whenever adjuster is set at the
throttle body, the throttle cable must be adjusted
at the OTAS solenoid. Refer to STEERING SYS-
TEM for the procedure.
Position steering pole and handlebar to their low-
est position. Place handlebar in the straight ahead
position.
1
2
F22K09A
1. Steering pole at its lowest position
2. Handlebar at its lowest position and in straight ahead position
Fully depress throttle lever and hold. Throttle
lever stopper should almost contact throttle body.
To ensure there is free play, apply a light pres-
sure on the throttle plate, a slight play should be
obtained.
F22G03A
1
1. Free play here
CAUTION: If there is no free-play at idle posi-
tion, it may cause poor idling and startability.
Improper cable adjustment will cause strain on
cable and/or damage cable bracket or throttle
lever at handlebar. Fault code(s) may be gen-
erated.
When released, throttle lever must have a free
play of 1 - 7 mm (1/32 - 9/32 in).
To adjust cable, remove top cover of steering pole.
Refer to STEERING SYSTEM.
Set cable with the adjuster.
130 smr2005-056
