Section 11 HULL/BODY
Subsection 02 (3D SERIES)
F22K0JA

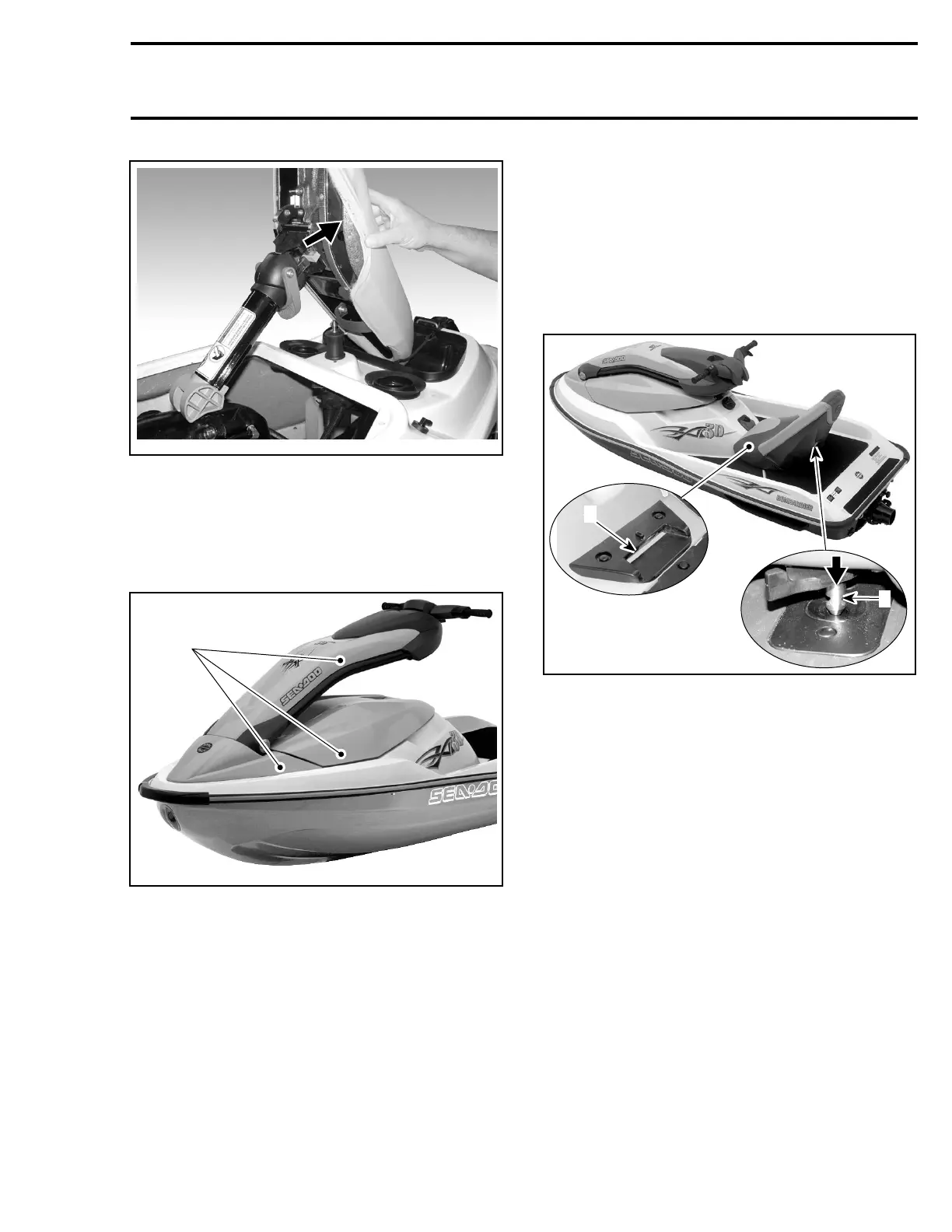

Remove screw and pull out post no. 5.
Cleaning
To clean the engine cover and the steering pole
nose and top pieces, use only flannel cloths or an
equivalent.
F22L0HB
1
1. Engine cover, steering pole nose and top pieces
CAUTION: Use only recommended material to
avoid damaging the surfaces.
To remove scratches on these parts, use Scratch
Remover Kit (P/N 861 774 800).
NOTE: Be aware that when using any scratch re-
mover product, the part finish will turn to a dull
appearance.
CAUTION: Never clean plastic parts or en-
gine cover with strong detergent, degreasing
agent, paint thinner, acetone, products con-
taining chlorine, etc.
To clean the carpets, use 3M™ Citrus Base Clean-
er (24 oz spay can) or the equivalent.
KART SEAT (if so equipped)
Check seat tab and anchor plate for wear or dam-
age. Check latch mechanism for tightness, wear,
cracks or other damage. Try pulling out the seat
without releasing the latch.
F22L0YA
2
1
1. Check seat tab and anchor plate
2. Check latch mechanism
BILGEVENTTUBES
Ensure they are not obstructed and they are well
fixed to body. Ensure they do not interfere with
any hose.
smr2005-069 341
