Section 07 ELECTRICAL SYSTEM
Subsection 04 (INSTRUMENTS AND ACCESSORIES)
INSTRUMENTS AND ACCESSORIES
SERVICE TOOLS
Description Part Number Page
Fluke 111.............................................................................. 529 035 868 ......................................... 195
GENERAL
Install safety lanyard to activate MPEM or
VCM/ECM to perform testing procedures that
requiresthedevicetobesuppliedwithelectricity.

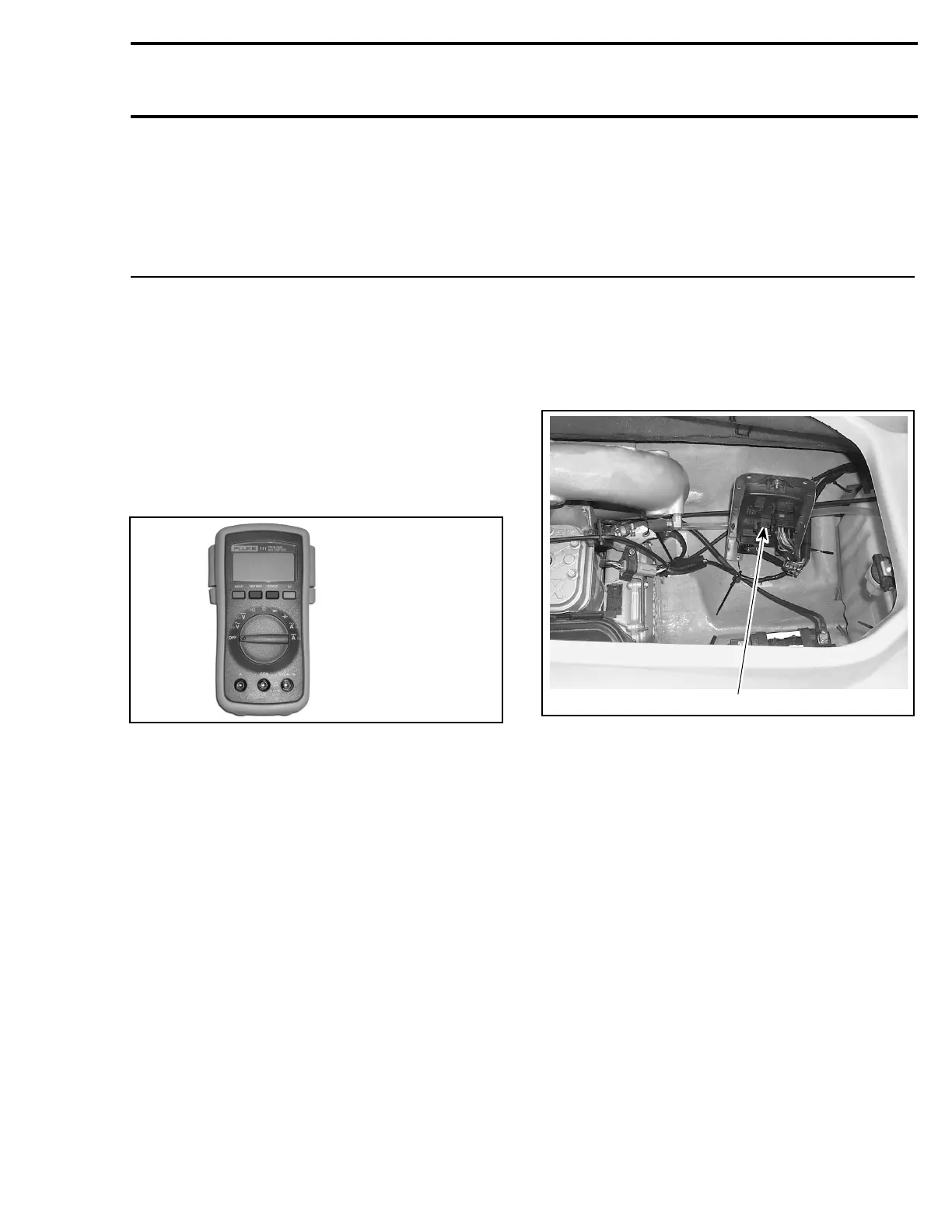

To perform verifications, a good quality multimeter
such as Fluke 111 (P/N 529 035 868) should be
used.
529 035 868
FUSES
GTI Models
Fuse are located on the Multi-Purpose Electronic
Module (MPEM) and in the rear electrical box.
Multi-Purpose Electronic Module
(MPEM)
F17H02A
1
TYPICAL
1. MPEM
Fuse identification is beside the fuse holder. SPR
means spare (fuse).
smr2005-060 195
