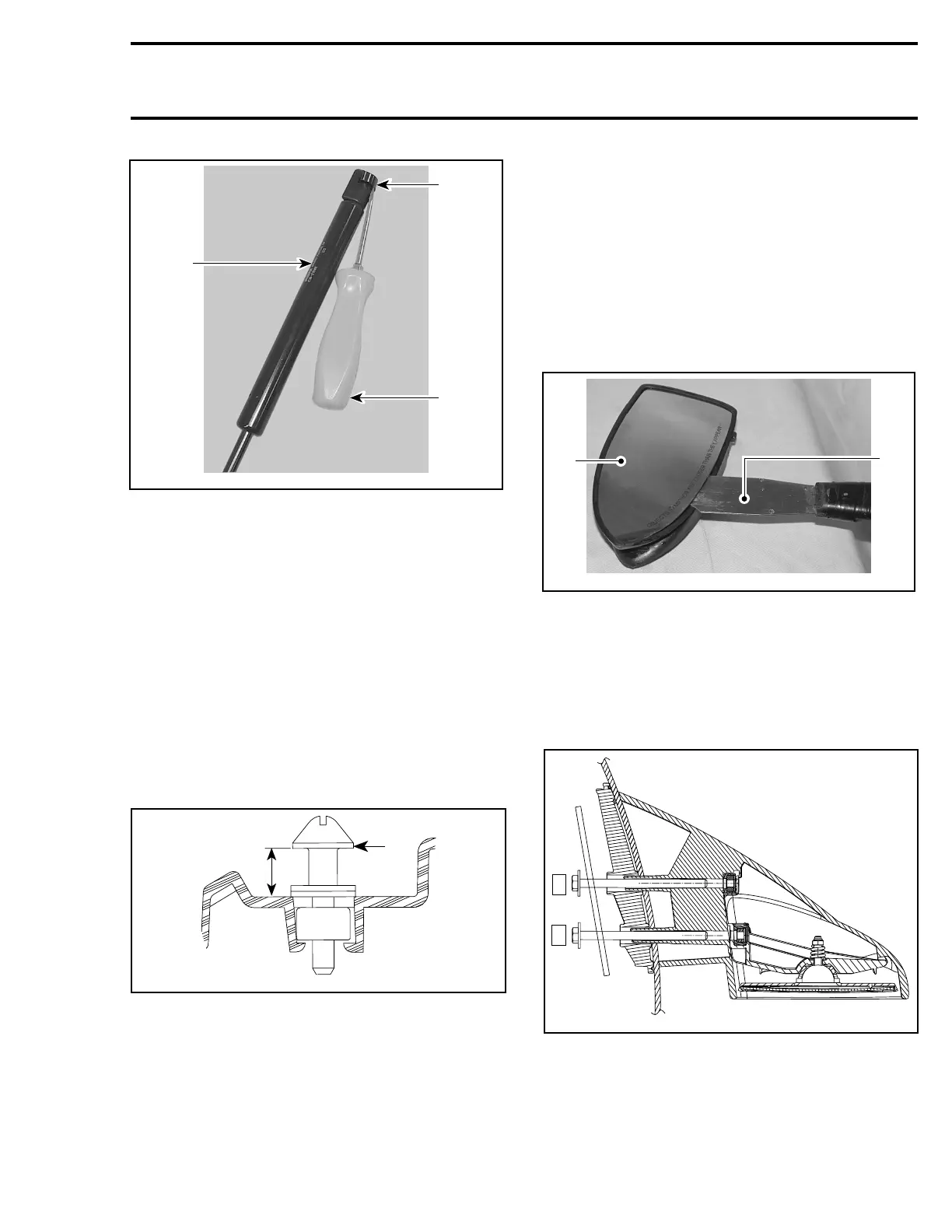

Section 11 HULL/BODY
Subsection 01 (GTI SERIES)
1
F18L20A
3
2
1. Shock absorber
2. Flat screwdriver
3. Shock top locking device
STORAGE COMPARTMENT
COVER
Adjustment
NOTE: Apply Loctite 243 (blue) (P/N 293 800 060)
on threads of lock pin when the adjustment is re-
quired or when the lock pin is removed then rein-
stalled. The threads on new lock pin are coated
with a self-locking product, do not apply Loctite
243onthreads.
Adjust lock pin no. 14 as per following specifica-
tions:
A
1
smr2005-069-005_a
1. Lock pin (apply Loctite 243). Torque to 4 N•m(36lbf•in)
A. 13.6 ± 1 mm (1-17/32 ± 3/64 in)
NOTE: Before torquing, move pin forward until it's
rested against the body.
MIRROR
Removal and Installation
To remove mirror proceed as follows:
– Remove storage compartment inner shell no. 6
from storage cover no. 1 as described earlier in
this section.
– Remove two hexagonal screws no. 15 and flat
washers.
– Remove defective mirror with a spatula.
1
F18L21A
2
1. Mirror
2. Spatula
– Place the mirror frame in hot water to “soft-
en” the material to allow mirror installation in
its frame.
– Torque mirror screws to 5 N•m(44lbf•in)as
per following sequence.
1
2
smr2005-069-006_a
– Reinstall storage compartment inner shell.
smr2005-069 323
