Section 11 HULL/BODY
Subsection 01 (GTI SERIES)
INLET GRATE
Removal and Installation
Loosen screws and remove inlet grate.
NOTE: An impact screwdriver should be used to
loosen tight screws.
When reinstalling inlet grate, apply Loctite 271
(red) (P/N 293 800 005) on threads.

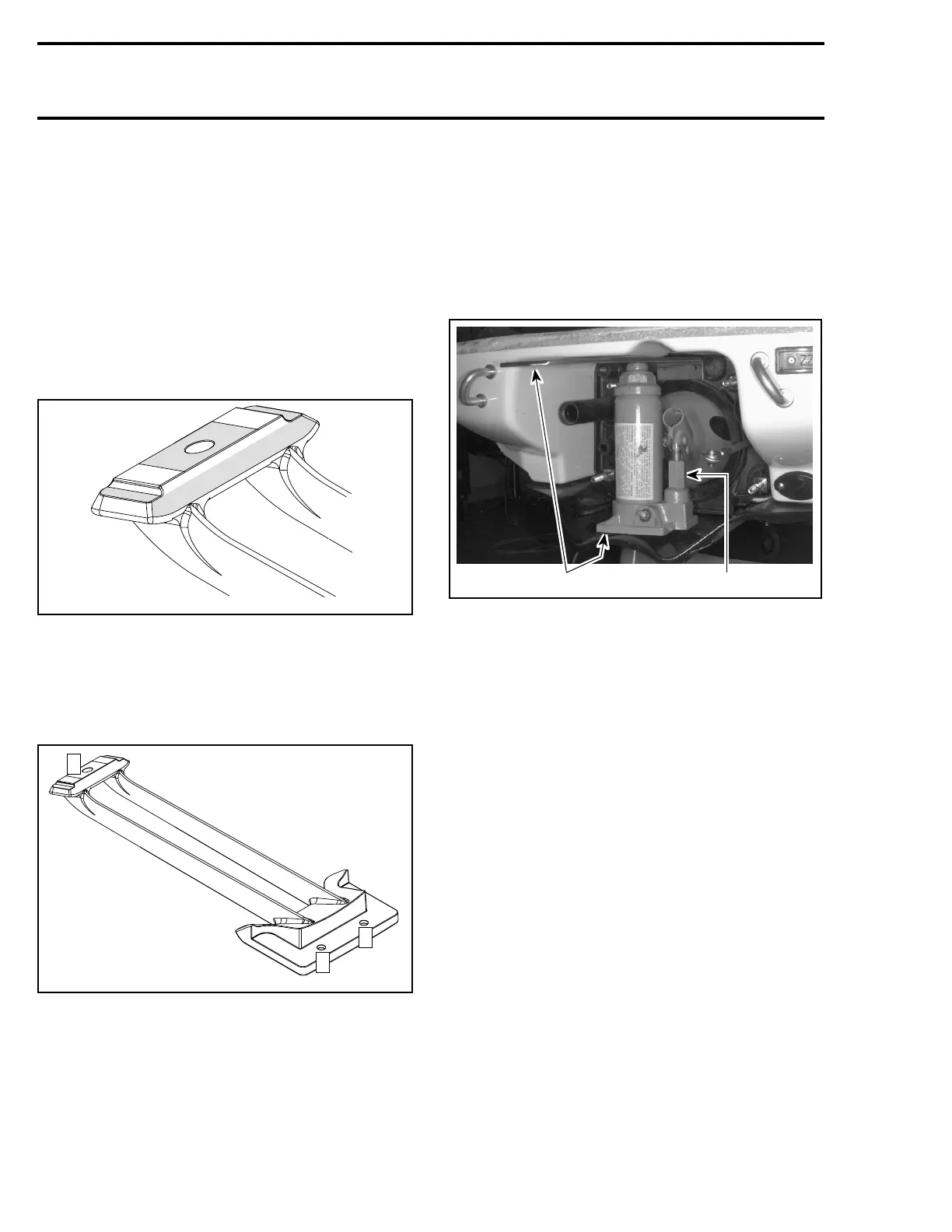

Apply Loctite 5900 (P/N 293 800 066) on the small
part of inlet grate as indicated by the shaded areas
in the next illustration.
smr2005-069-007
Follow this sequence referring to the illustration:
Hand tighten screws from 1 to 3.
Torque screws 1 and 2 to 11 N•m(97lbf•in)then
retorque the first screw.
Torquescrew3to26N•m(19lbf•ft).
1
3
2
smr2005-069-008_a
RIDING PLATE
Removal
Remove inlet grate.
Remove jet pump. Refer to JET PUMP.
Remove the speed sensor from the riding plate (if
applicable).
Loosen riding plate screws.
NOTE: An impact screwdriver should be used to
loosen tight screws.
Using a low height hydraulic bottle jack and 2 steel
plates, pry out riding plate.
F05J03A
2 1
TYPICAL
1. Hydraulic bottle jack
2. Steel plates
Cleaning
Scrape off all excess of sealant from riding plate
and hull.
Clean hull surface with solvent to eliminate
grease, dust and any residue of sealant. Clean
fitting threads.
Installation
Apply Loctite 5900 (P/N 293 800 066) as indicated
by the shaded areas in the next illustration. Follow
also the torquing sequence as shown in the same
illustration. Torque screws to 26 N•m(19lbf•ft).
324 smr2005-069
