Section 11 HULL/BODY

Subsection 02 (3D SERIES)

GENERAL

Verify hinges condition and latching mechanisms

condition and operation. Replace any damaged

components.

When applying threadlocker products, pay atten-

tion so that it does not come in contact with ABS

plastic parts (painted parts). It could lead to plas-

tic cracks or other damage.

PROCEDURES

MOTO SEAT (if so equipped)

Inspection

Check that the moto seat properly latches into the

steering pole. Inspect the latch mechanism for

wear.

Deploy the seat. Ensure that the seat moves

freely while rotating. Check for excessive lateral

play.

Also check for excessive play of seat post in seat.

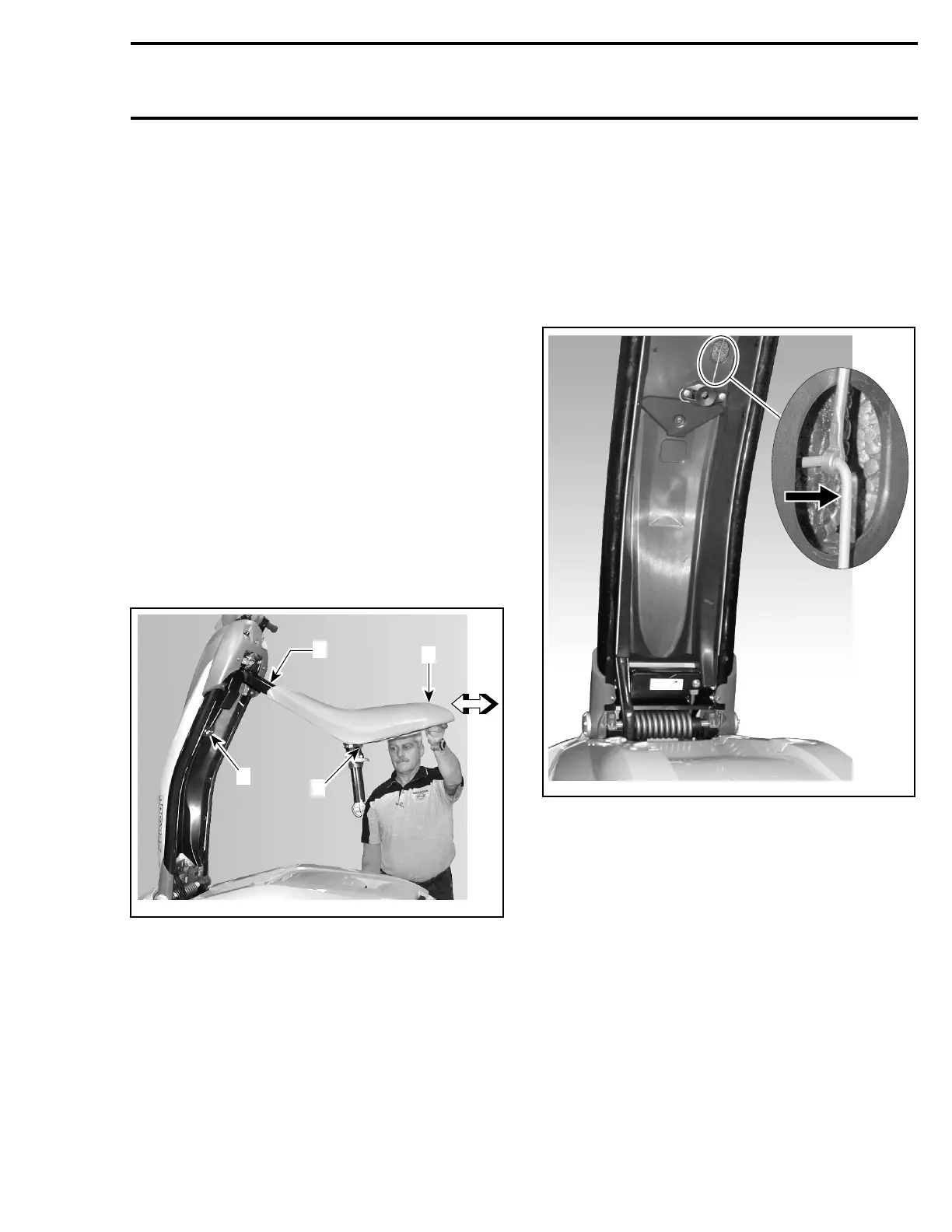

F22L0SA

1. Latch mechanism

2. Seat structure

3. Check play of seat post

4. Check lateral play of seat structure

Inspect the seat post receiver in the deck. Check

for dirt, sand or other debris. Check for excessive

wear. Ensure that the cover moves freely.

Inspect post knuckle condition. Check for wear,

cracks and tightness.

Install the seat post in its receiver and ensure

it latches properly. Inspect latch mechanism for

wear. Try pulling out the post without releasing

the latch.

Disassembly

Deploy moto seat.

Disconnect latch rod no. 1.

F22K0XA

Remove screws of lower cover then slide cover

rearward.

smr2005-069 339
