Section 03 ENGINE SYSTEM
Subsection 03 (REMOVAL AND INSTALLATION)
F04D10A
3 2 1

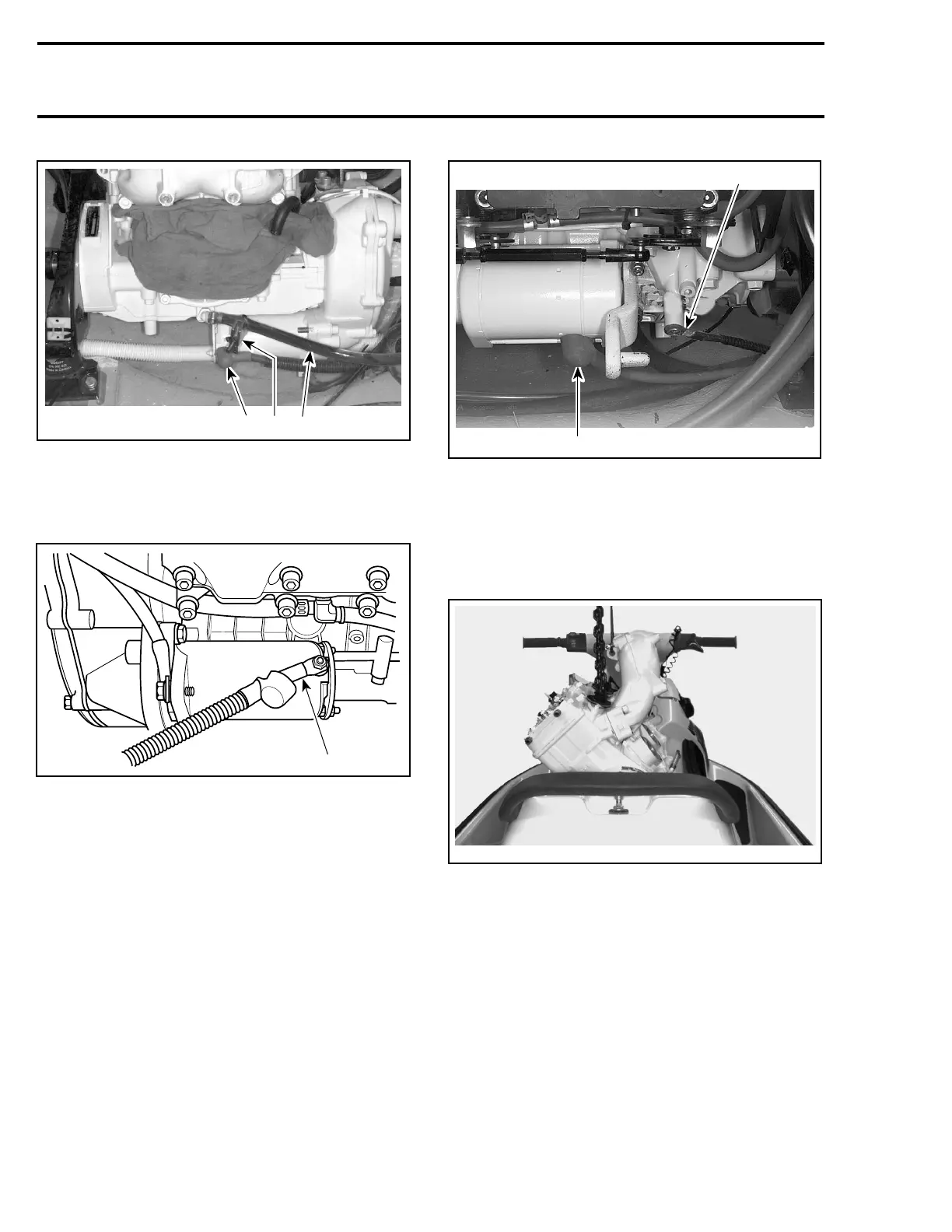

TYPICAL — 787 RFI ENGINES
1. Rotary valve oil supply line
2. Hose pincher installed
3. Starter cable
Disconnect RED (+) cable from starter post.
F01H1JB
1
TYPICAL
1. Disconnect RED (+) cable
Disconnect BLACK (–) cable from engine
crankcase.
F06H35A
2
1
1. Positive starter cable
2. Ground cable
Carry on engine lifting then tilt engine so that it can
be removed from the body opening.
CAUTION: Be careful not to scratch body or to
hit any component.
F01D7RA
TYPICAL — GTI RFI SHOWN
CLEANING
Wipe off any spillage in bilge. Clean with a bilge
cleaner.
Clean external parts of engine.
INSTALLATION
Installation of engine in watercraft is essentially
the reverse of removal procedures. However pay
particular attention to the following.
64 smr2005-049
