SeaDoo 3D User Manual

Section 06 ENGINE MANAGEMENT (RFI)
Subsection 03 (COMPONENT ADJUSTMENT, INSPECTION AND REPLACEMENT)
If voltage test is not good, try a new ECM.
If voltage test is good, everything is in order.

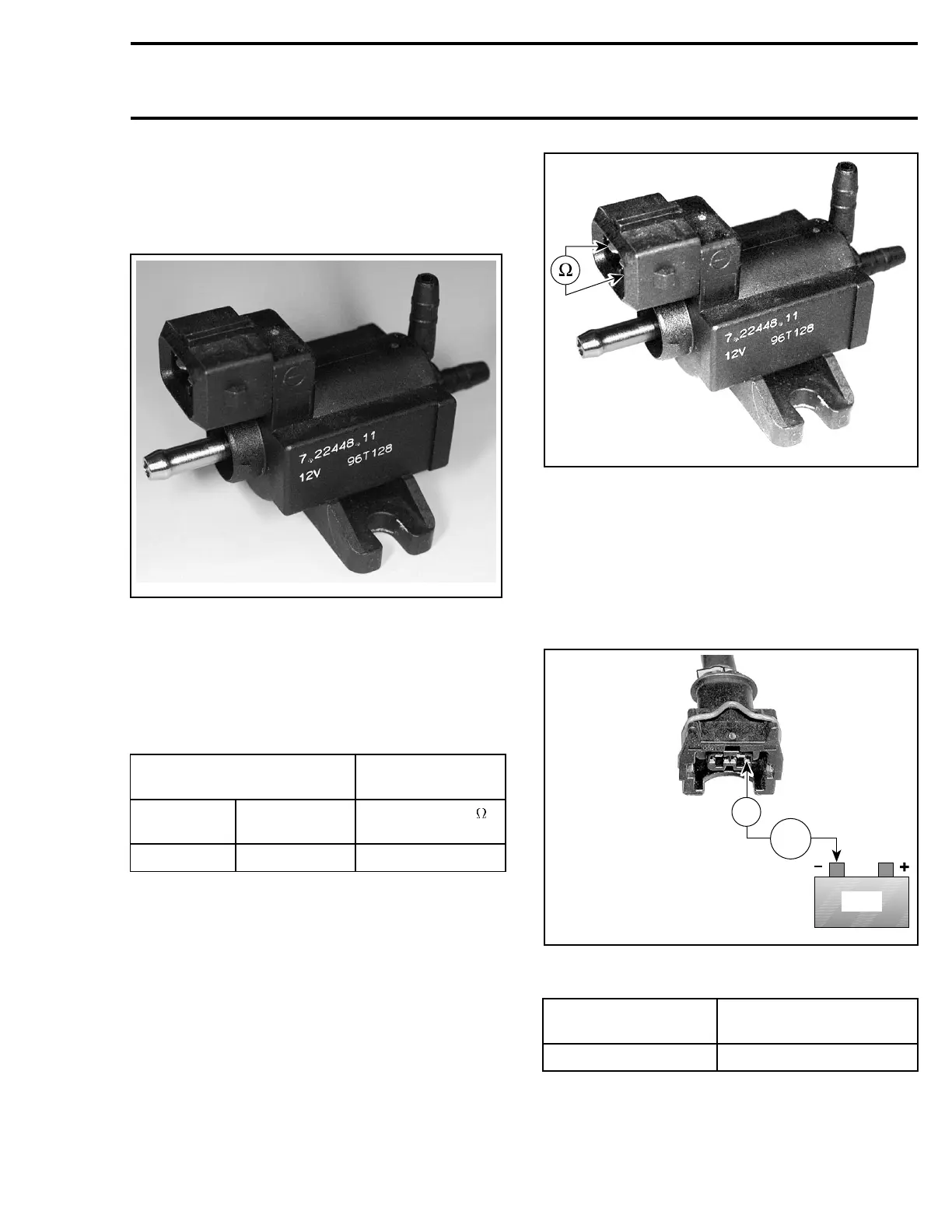

RAVE SOLENOID
F07D0GA
RAVE SOLENOID
Resistance Test
Disconnect the connector from RAVE solenoid.
Using a multimeter, check the resistance on the
RAVE solenoid connector as per table.
RAVE SOLENOID
CONNECTOR
MEASUREMENT
PIN PIN
RESISTANCE
@20°C(68°F)
1
2 30
smr2005-056-018_a
If resistance is incorrect, replace RAVE solenoid.
If resistance is correct, proceed with the VOLT-
AGE TEST below.
Voltage Test
SafetylanyardmustbeonDESSpost.
Disconnect RAVE solenoid connector.
Probe terminal as shown.
BAT
Vdc
2
smr2005-056-011_b
– If 12 V is read, check continuity of ground circuit
going to ECM connector as per following table.
RAVE SOLENOID
CONNECTOR
ECM CONNECTOR
1
B-15
smr2005-056 139
