Section09PROPULSION
Subsection 03 (REVERSE SYSTEM)
DISASSEMBLY

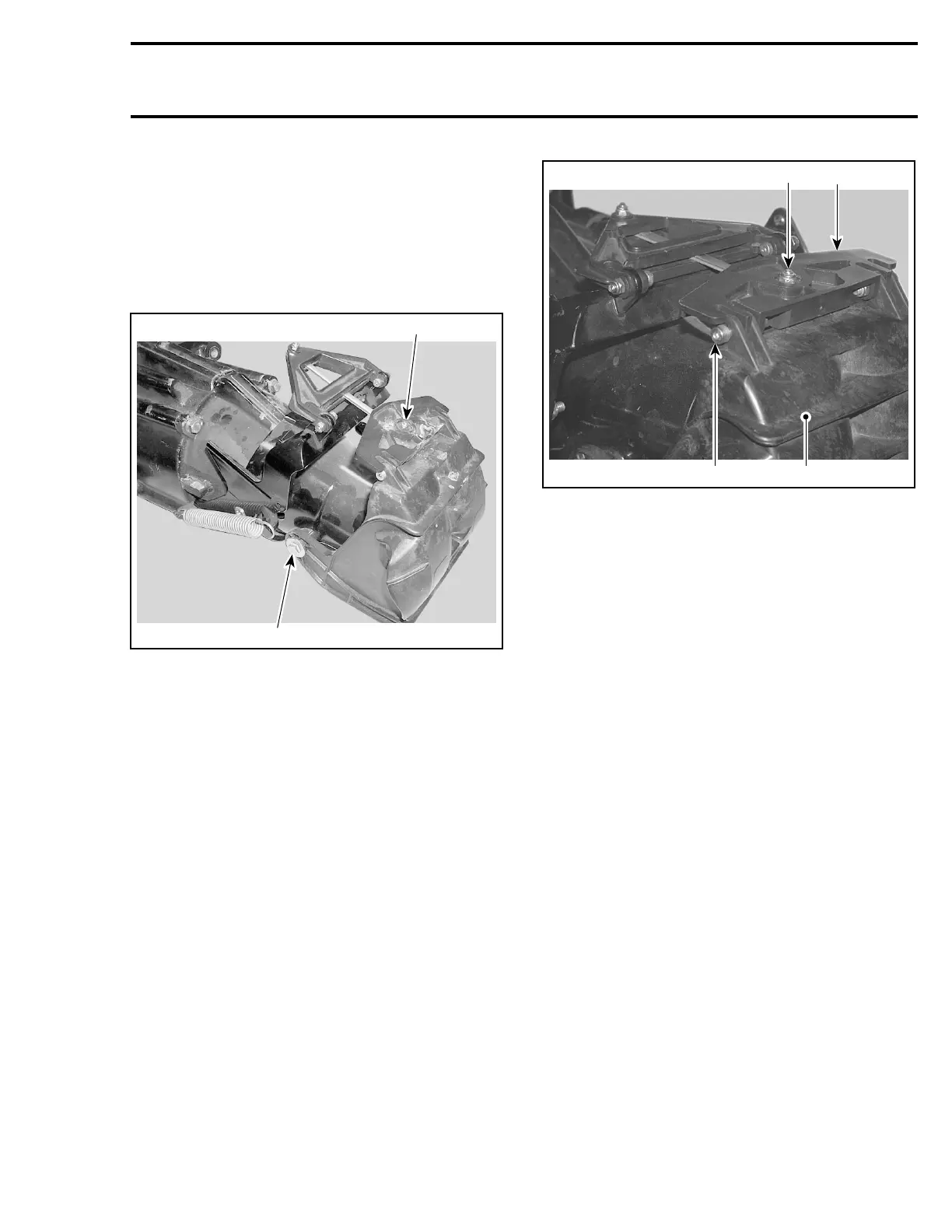

Reverse Gate
To remove reverse gate no. 1, put shift lever in
reverse position.
Unscrew pivot bolt no. 2, located on the top of
reverse gate.
F16J04A
2
1
1. Pivot bolt
2. Reverse gate screw
Remove both reverse gate screws no. 3.
Pivot Support
Remove reverse gate.
Unscrew pivot support bolts no. 4.
1
F18J0JA
2
34
1. Pivot bolt
2. Pivot support
3. Reverse gate
4. Pivot support bolt
Withdraw pivot support no. 5.
Connecting Rod
Remove:
– reverse gate
– pivot bolt no. 6 holding connecting rod no. 7 to
pivot triangle no. 8.
Withdraw connecting rod.
Pivot Triangle
Remove:
– reverse gate
– connecting rod
– pivot triangle bolts no. 9.
Withdraw pivot triangle no. 8.
Pivot Arm
Position shift lever in forward.
Remove:
– reverse gate
– connecting rod
– reverse spring no. 10
– reverse cable no. 11
– pivot arm bolts no. 12. Takenoteofbushing
size for reinstallation.
Withdraw pivot arm no. 13.
smr2005-064 269
