Section 09 PROPULSION
Subsection 03 (REVERSE SYSTEM)
Make sure the shift lever action is smooth and
precise. Forward and reverse positions should be
easy to select with a decent position between
each.
Pivot Triangle

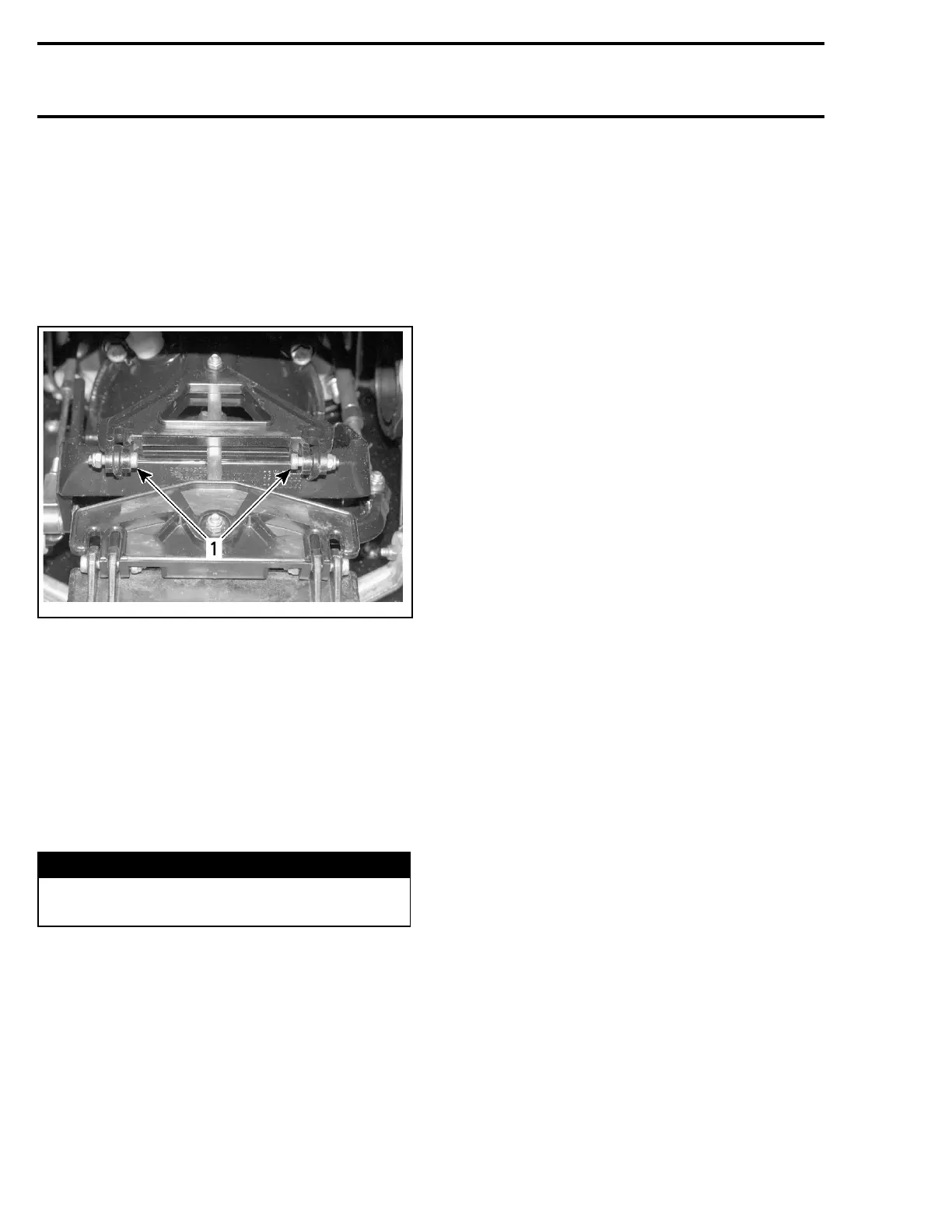

When installing pivot triangle, install head of bolts
toward inside. Torque bolts to 2.5 N•m(22lbf•in).
smr2005-064-002_A
1. Head of bolts inside
Make sure the pivot triangle turns freely.
Reverse Gate
Install reverse gate with spacers no. 31 and wash-
ers no. 32. Torque reverse gate bolts no. 3 to
20 N•m(15lbf•ft).
ADJUSTMENT
Putshiftleverinforwardposition.
WARNING
When adjusting reverse cable, make sure
lever is well engaged into the spring slot.
Place reverse gate in the up position.
Turn the joint no. 18 at the end of reverse cable
and align its hole with hole in pivot arm.
Secure with bolt no. 14, washers no. 15, bush-
ing no. 17 and elastic stop nut no. 16. Torque to
7N•m(62lbf•in).
272 smr2005-064
