SeaDoo 3D User Manual

Section 03 ENGINE SYSTEM
Subsection 02 (EXHAUST SYSTEM)

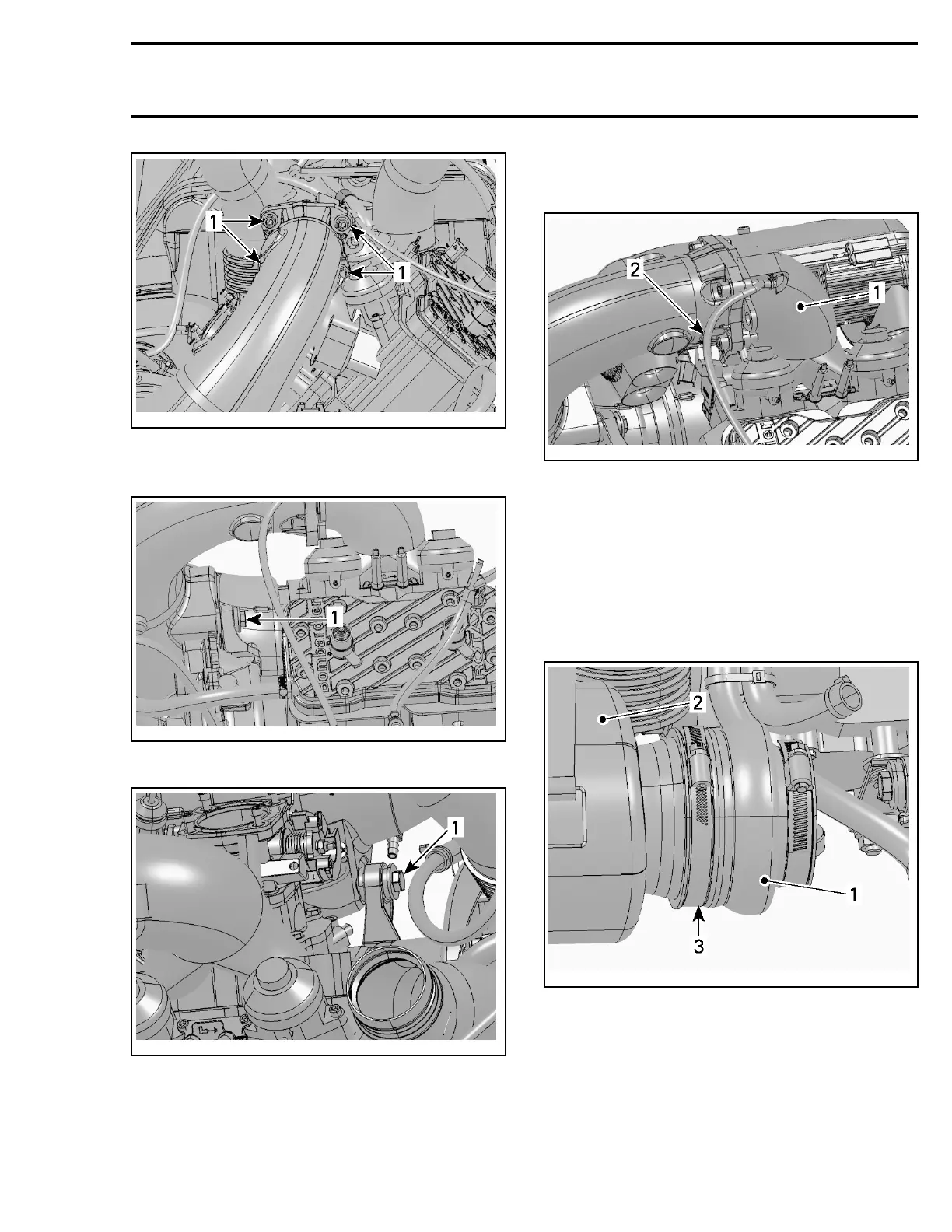

smr2005-048-007_A
1. Tuned pipe retaining screws
– tuned pipe support screws
smr2005-048-008_A
1. Upper screw
smr2005-048-009_A
1. Bottom screw
– tuned pipe.
Exhaust Manifold
Disconnect hose from exhaust manifold.
smr2005-048-010_A
1. Exhaust manifold
2. Cooling system indicator hose
For removal procedure of the exhaust manifold,
refer to the 717/787 RFI ENGINE SHOP MANUAL.
Exhaust Bellow
Remove tuned pipe.
Unscrew clamp holding exhaust bellow to water
trap.
smr2005-048-011_A
1. Exhaust bellow
2. Water trap
3. Remove this clamp
Remove exhaust bellow.
Muffler
Open rear access panel.
smr2005-048 53
www.SeaDooManuals.net

SeaDoo 3D Specifications

General

Manufacturer	Sea-Doo
Model	3D
Engine	Rotax 947
Horsepower	130 hp
Category	Personal Watercraft
Engine Type	2-stroke
Width	46.5 inches
Seating Capacity	1 person
