Section 03 ENGINE SYSTEM
Subsection 02 (EXHAUST SYSTEM)

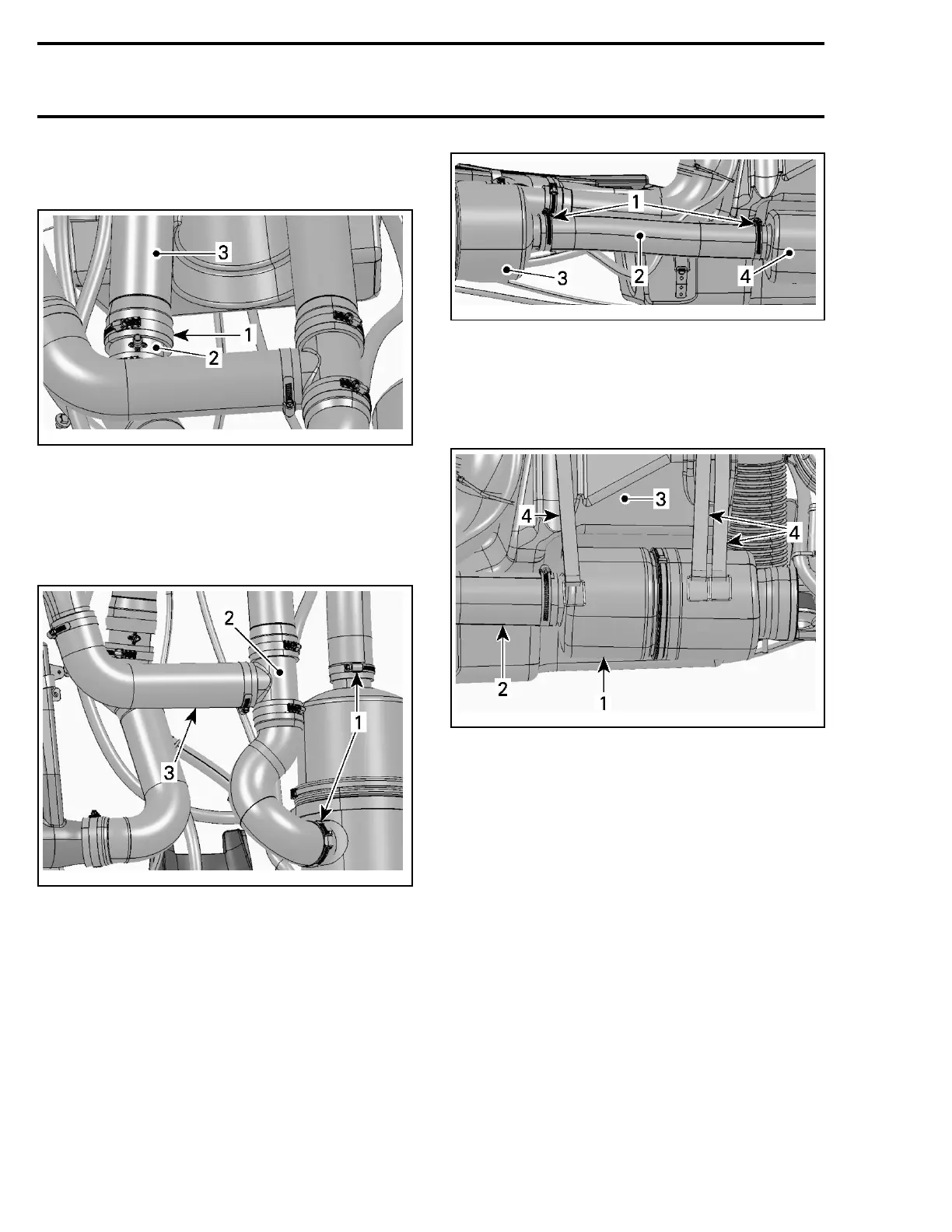

Unscrew hose adaptor clamp then disconnect
hose from adaptor.
smr2005-048-015_A
1. Hose adaptor clamp
2. Hose adaptor
3. Disconnect this hose
Unscrew muffler hose clamps.
Remove hose with T-fitting and straight resonator.
Remove muffler strap.
smr2005-048-013_A
1. Muffler clamps
2. T-fitting
3. Straight resonator hose
Disconnect muffler from extension pipe by pulling
muffler rearward.
Pull muffler out of vehicle.
Inspect muffler, shell and boot condition.
Water Trap and Exhaust Pipe
Remove tuned pipe and exhaust bellow.
Unscrew clamps retaining extension pipe to muf-
fler and water trap.
smr2005-048-014_A
1. Clamps
2. Extension pipe
3. Muffler
4. Water trap
Remove heat shield from extension pipe.
Detach straps holding water trap against fuel tank.
smr2005-048-012_A
1. Water trap
2. Extension pipe
3. Fuel tank
4. Retaining straps
Remove water trap by pulling and turning it rear-
ward.
Resonators
Straight Resonator
Unscrew clamp retaining straight resonator hose
to T-fitting.
54 smr2005-048
