SeaDoo 3D User Manual

Section 13 ELECTRICAL CONNECTORS AND WIRING DIAGRAMS
Subsection 01 (ELECTRICAL CONNECTORS)

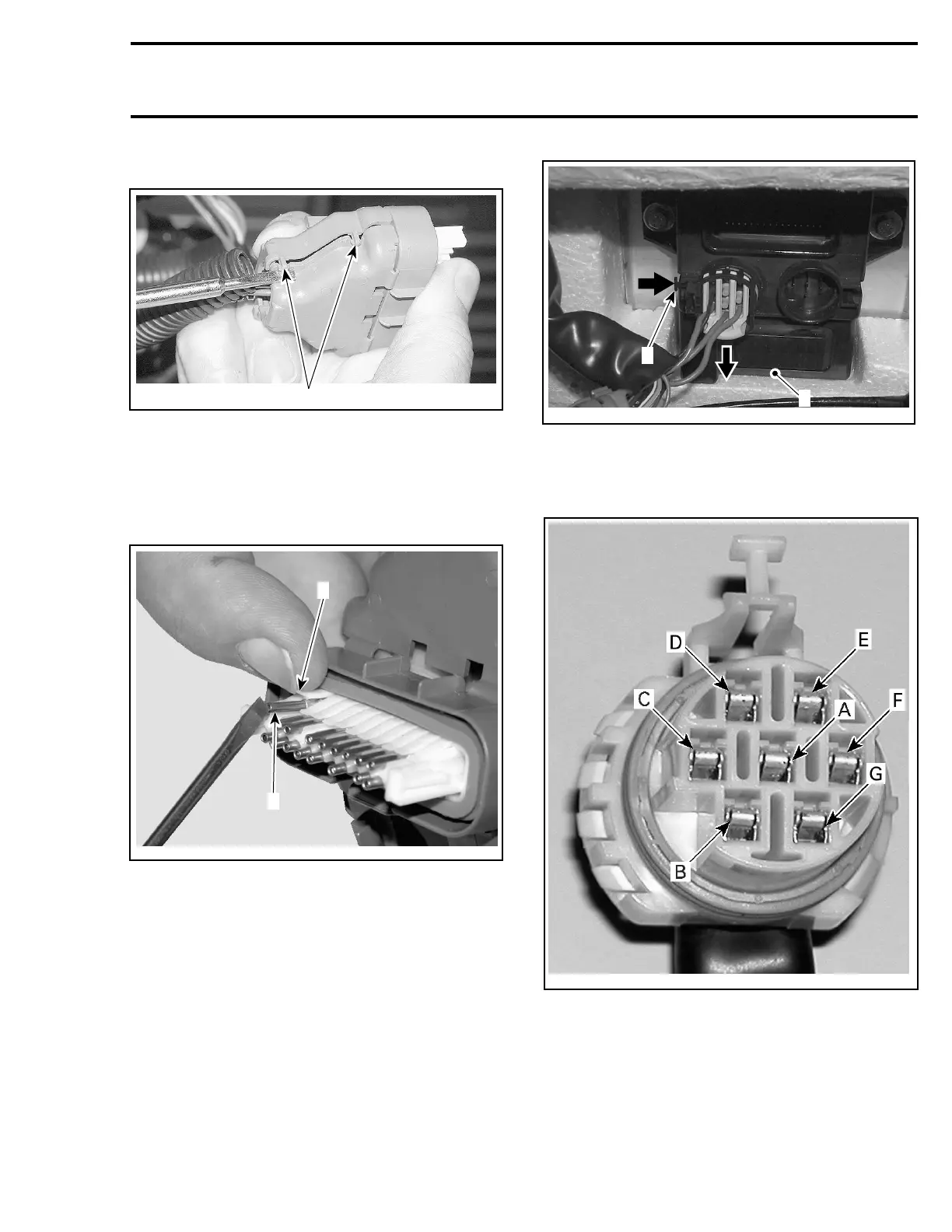

Open housing by lifting 4 tabs.
1
A33Z02A
TYPICAL
1. Tabs (2 on each side)
Lift the top plastic lock of the female terminal to
be removed and hold in position. Lift the female
terminal to unlock from the housing and push out
of housing.
A32E3XA
2
1
TYPICAL
1. Lift and hold plastic lock
2. Lift to unlock and push out
7-Pin Connector
Firmly push down tab and hold to unlock connec-
tor while pulling it out.
F22H0JA
1
2
TYPICAL
1. VCM (vehicle control module)
2. Firmly push down this tab and hold while pulling out connector
Refer to the illustration for the connector pinout.
smr2005-056-003_a
