Siemens SINUMERIK 828D Commissioning Manual

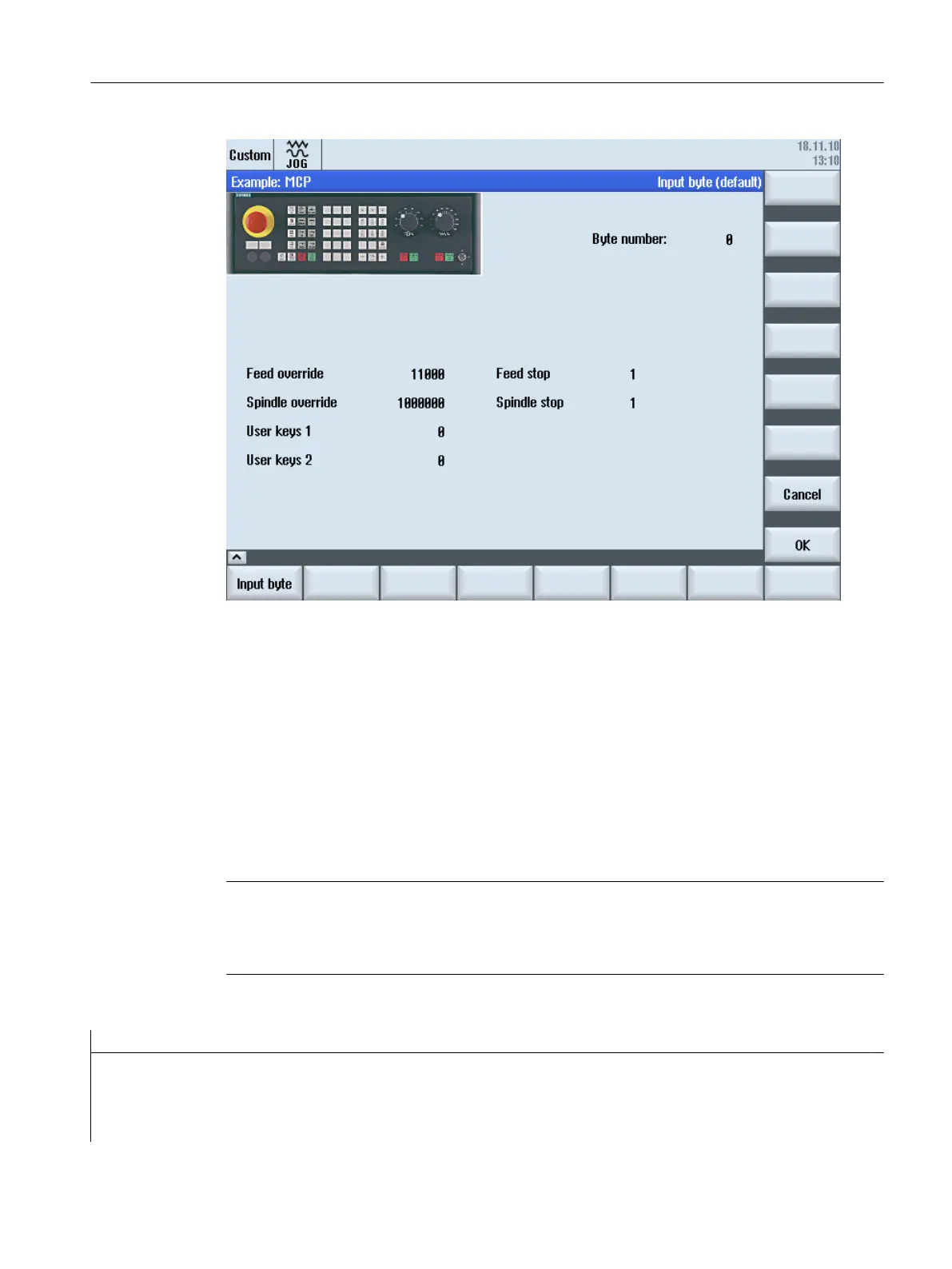

Figure 8-2 Example with bitmap and text fields
File overview
The following files are required:
●
custom.com
● easyscreen.ini
Programming
Content of the custom.com file:
Note
The graphic file mcp.png integrated in the example is also only a sample file. If you wish to
use this programming example in your application, you must replace the graphic by one of
your own graphics.
//S(Start)
HS7=("Start example", se1, ac7)
PRESS(HS7)
LM("Maske4")
"Custom" operating area
8.4 Programming example for the "Custom" area
SINUMERIK Integrate Run MyScreens
Programming Manual, 10/2015, 6FC5397-3DP40-5BA3 189

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
