5.1.5 Example: This is how you configure an encoder for an axis (DO4)
Configuring encoder 2 for the axis
Drive object DO4 was commissioned with the automatic device configuration.
● Encoder 1 was detected.
● Encoder 2 is not in the selection list and must still be configured.
Procedure:

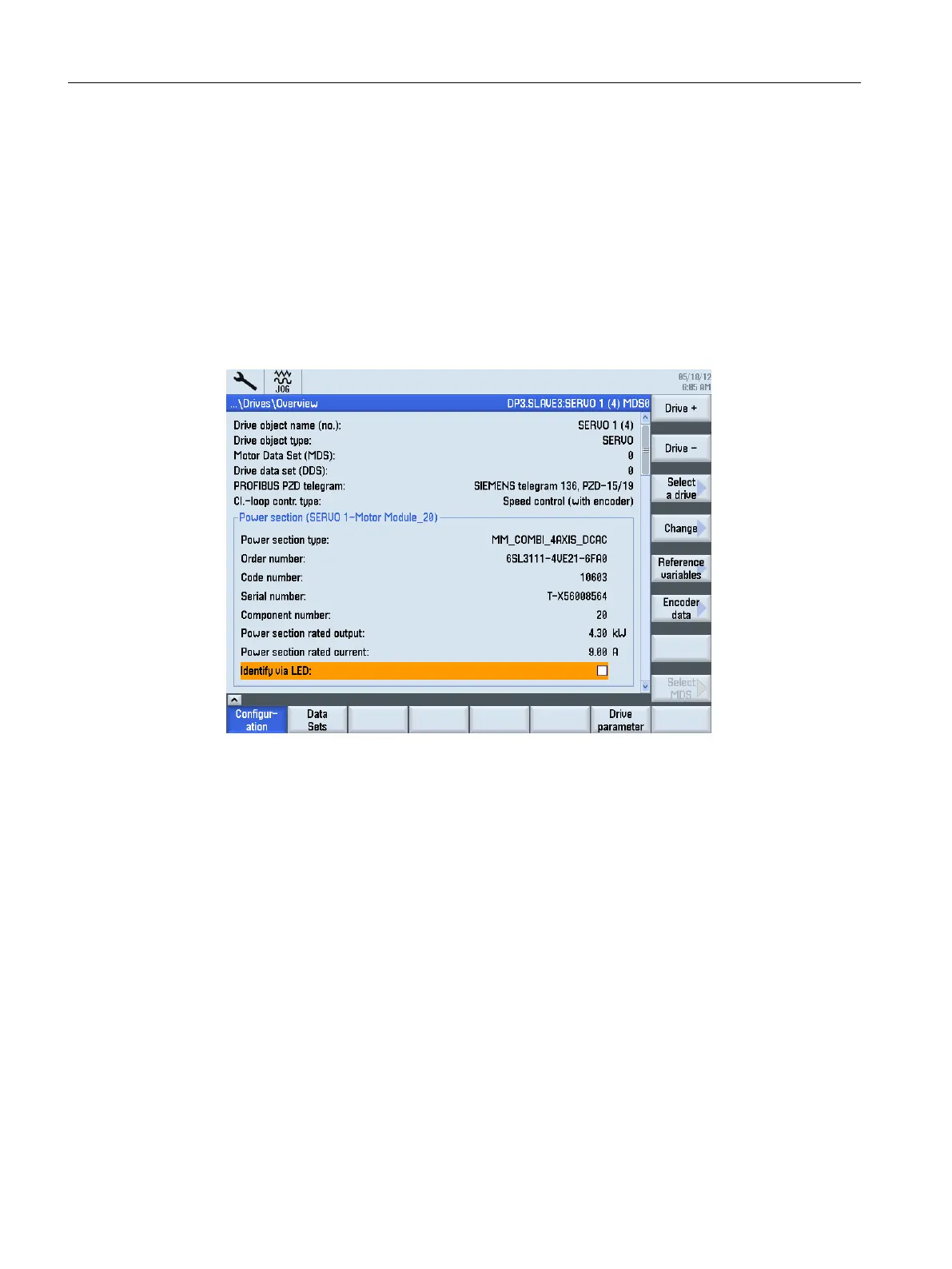

1. This is demonstrated using the following example:
2. Select "Change >".
Commissioning the drive
5.1 Commissioning the drive
CNC commissioning
110 Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3
