4.4.3.2 Accessible nodes
Pressing the "Accessible nodes"
softkey creates and displays the list of nodes accessible via
PROFINET. The list content can be compared as current topology with a reference topology.
Note
Although handheld terminals are not determined for the list of accessible nodes, they can be
added as additional nodes to the topology.

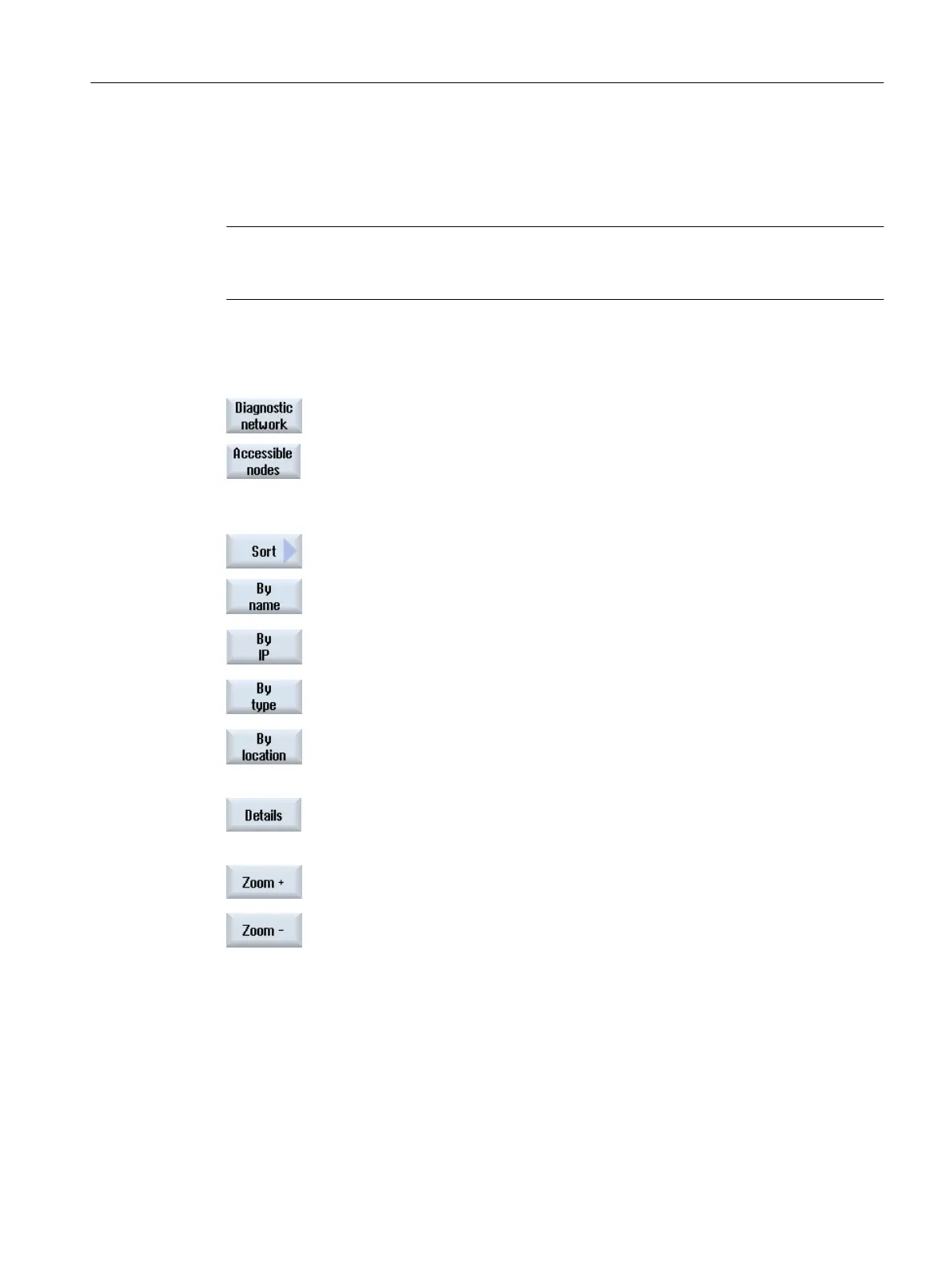

Procedure
1. The "Network Status" window opens.
2. Press the "Accessible nodes" softkey.
The "Accessible Nodes" window opens.
The name, IP address, HW ID/type, status and location are displayed in
tabular form for each node.
3. Press the "Sort" softkey.
4. Press the "By name", "By IP", "By type" or "By location" softkeys to sort
the display.
- OR -
3. If further information is provided for a selected node, press the "Details"
softkey.
The "Details" window opens and the additional information is displayed.
4. Press the "Zoom +" or "Zoom -" softkey until the desired display size is
reached.
Configuring the network
4.4 Station-related network diagnostics
SINUMERIK Operate
Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3 45
