Getting Started
2
2.1 Introduction
Using the following example, you get to know the steps necessary to insert your own dialogs
into
the SINUMERIK Operate user interface using Run MySreens. You also learn how to create
your own dialogs, insert context-sensitive help screens and help calls, define softkeys and how
you can navigate between the dialogs.
2.2 Example
2.2.1 Task description
You will create the following dialogs in the example.
Dialog 1
R parameters that can be written to (0 and 1) and geometry axis names are displayed in the
first dialog (input fields). The corresponding help screens are linked in for the two R parameters.
A context-sensitive help is linked in for the geometry axes. Further, the dialog includes
examples for separating lines (horizontal and vertical), toggle fields, input/output fields with
integrated unit selection and progress bars (with and without color change).

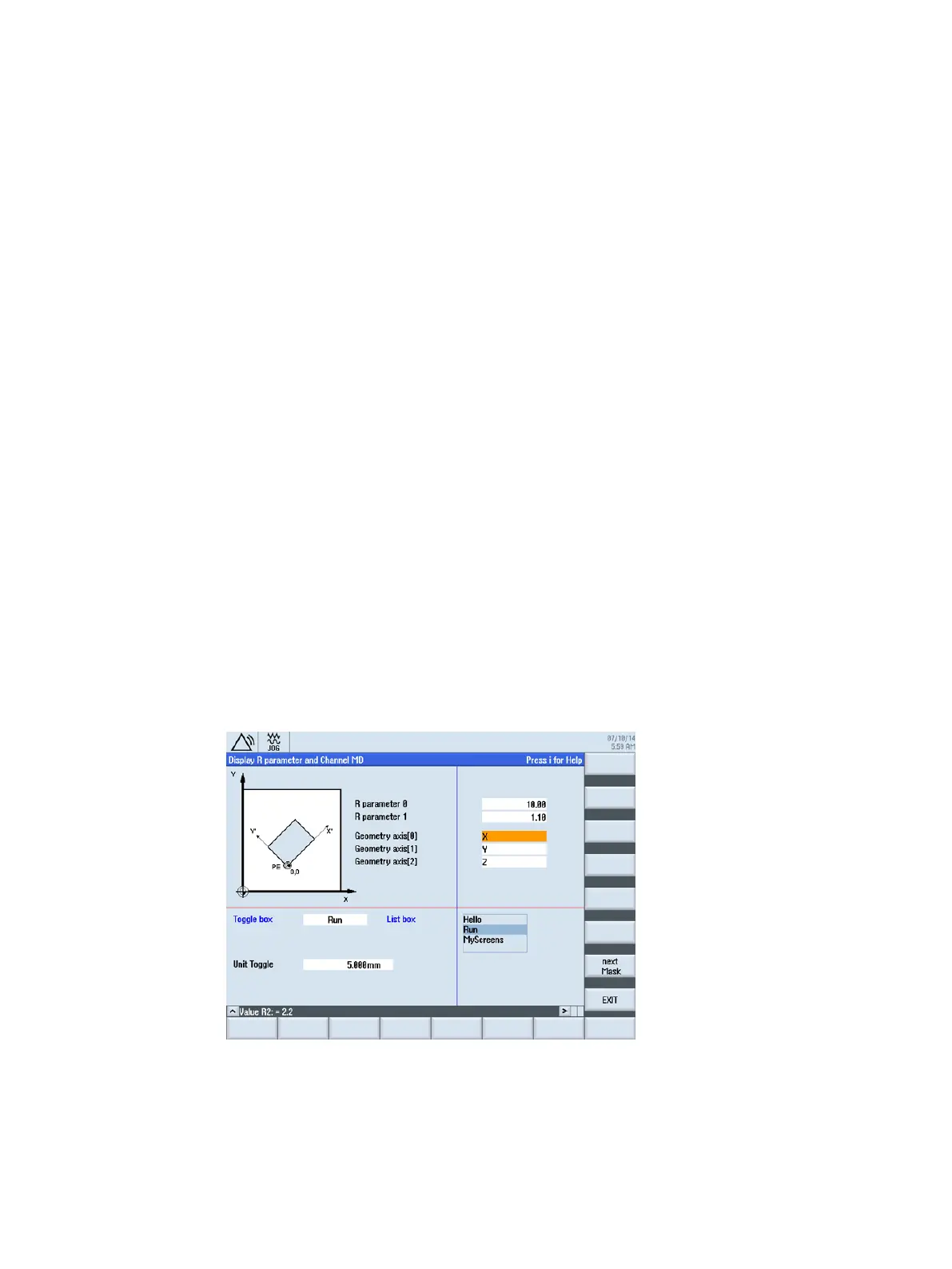

Figure 2-1 R parameters with help displays
SINUMERIK Integrate Run MyScreens
Programming Manual, 10/2015, 6FC5397-3DP40-5BA3 13
