Siemens SINUMERIK 828D Commissioning Manual

The dialog indicates whether an axis has already been tuned. A tuned axis is marked with
the date and time of the tuning.

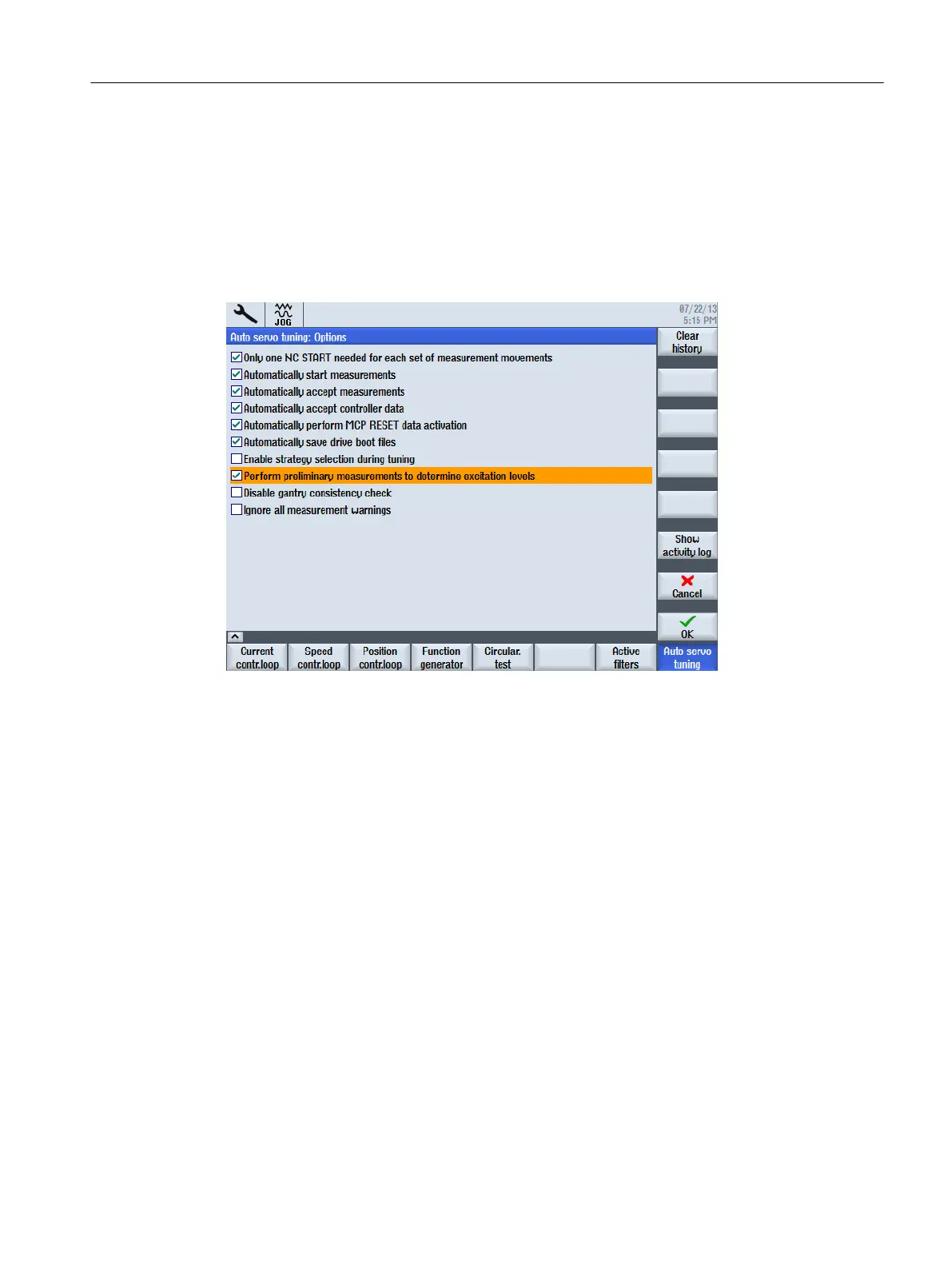

Selecting options
Check whether all options
for an automatic procedure are set: "Options" softkey. This permits
tuning by pressing a single softkey. Follow the messages and instructions shown on the screen.
The "Permit strategy selection during the tuning" option is recommended only for experts.
6.2.2 Selecting the tuning strategy
Default setting for "Axis" strategy
Select a tuning strategy for axis, speed controller and position controller with the "Select
strategy >" softkey. It is recommended that strategies 102, 303 and 203 are used:
Tuning
6.2 Automatic servo optimization
CNC commissioning
Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3 171

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
