9.8 Application example for milling machine
9.8.1
Example: Milling machine with chain magazine and dual gripper
(MAGKONF_EXAMPLE_MPF)
Example file
You can find the program for configuring the magazine in the Toolbox.
The program can be read into the control and should be adjusted for the specific machine
concerned.
Configuration











6SLQGOH

0DJD]LQH
*ULSSHU

&KDQJHSRVLWLRQ
0DJD]LQHORDGLQJSRLQW
*ULSSHU

/RDGDQGXQORDG
PDJD]LQH
1 ... 11 Transfer steps

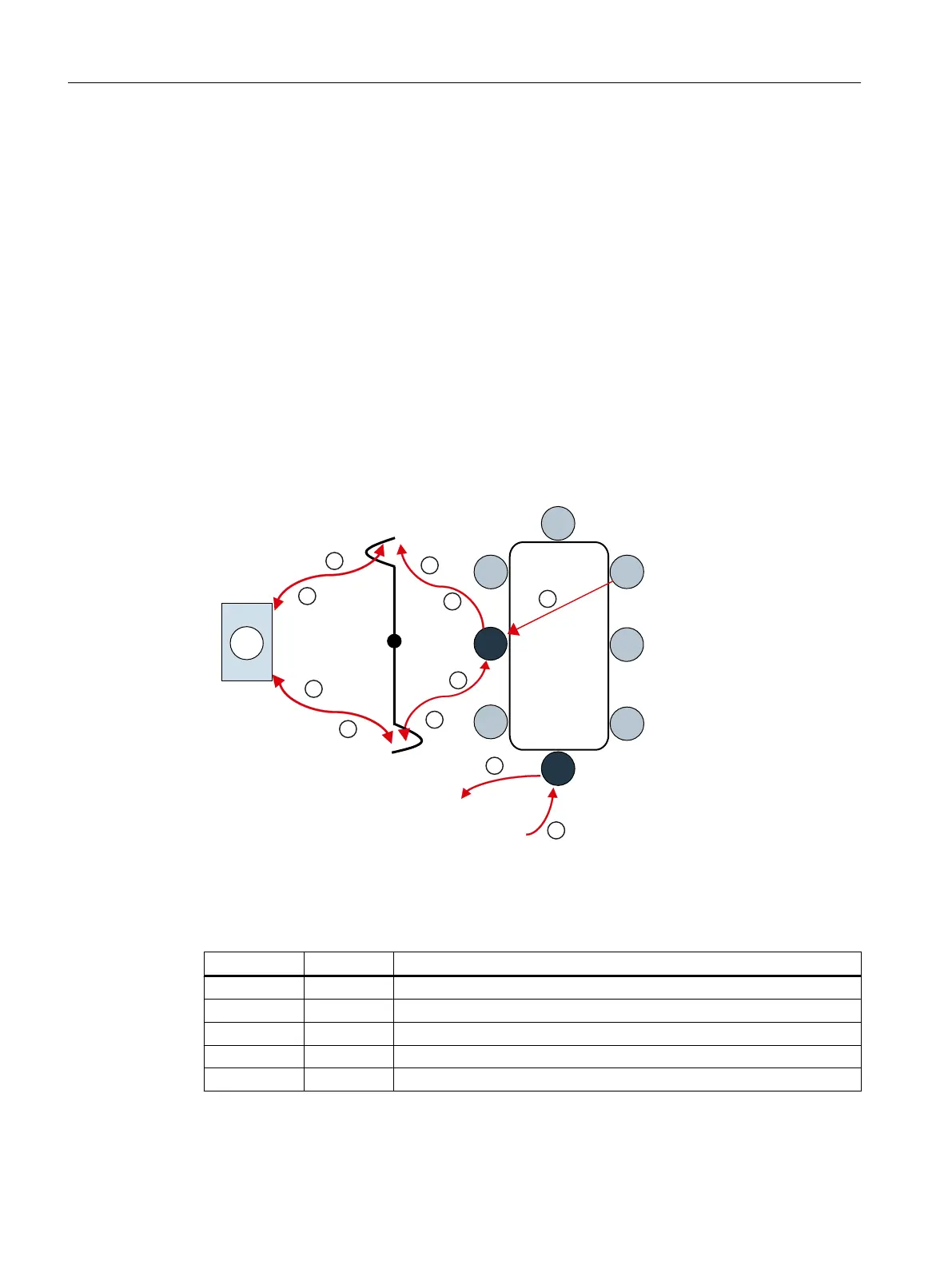

Figure 9-6 Milling machine with chain magazine
Description of the buffers and loading points:
Magazine Location Meaning
1 xx Real magazine (chain, plate, box), position xx
9998 1 Spindle
9998 2 Gripper 1
9998 3 Gripper 2
9999 1 Magazine loading point
Tool management
9.8 Application example for milling machine
