7.4.5 Example: Milling machine with general axis configuration and TRACYL

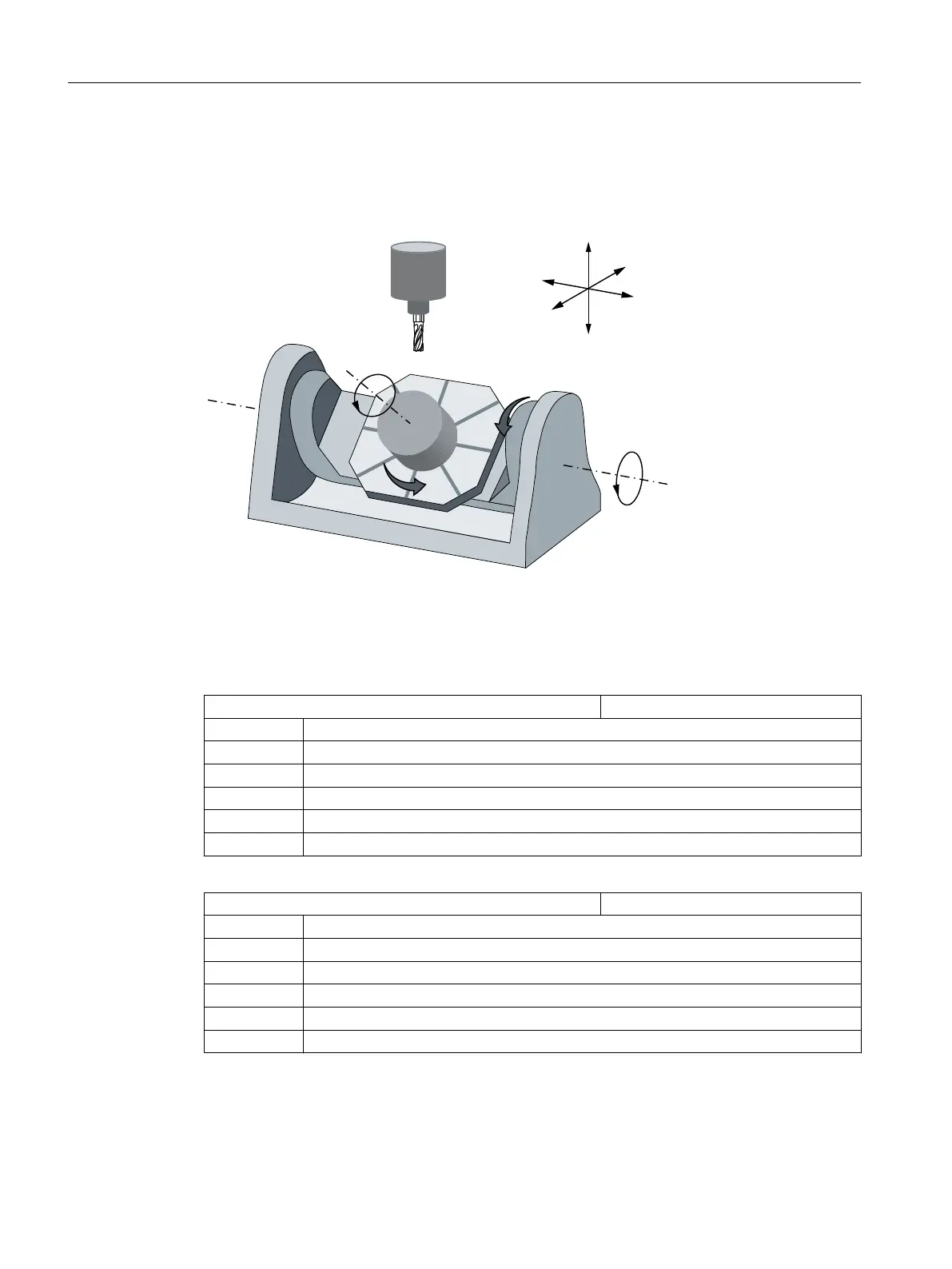

Example of a general axis configuration and activation of TRACYL on the following machine:

;

Axis configuration

For the machine shown with rotary axis A and C, you must configure the following machine

data:

MD10000 $MN_AXCONF_MACHAX_NAME_TAB[ ] Machine axis name

[0] = MX1 1st machine axis

[1] = MY1 2nd machine axis

[2] = MZ1 3rd machine axis

[3] = MSP1 4th machine axis

[4] = MA1 5th machine axis

[5] = MC1 6th machine axis

MD35000 $MA_SPIND_ASSIGN_TO_MACHAX[ ] Assignment of spindle to machine axis

[AX1] = 0 X is not a spindle

[AX2] = 0 Y is not a spindle

[AX3] = 0 Z is not a spindle

[AX4] = 1 MSP1 spindle 1

[AX5] = 0 A is not a spindle

[AX6] = 0 C is not a spindle

Configuring cycles
