Siemens SINUMERIK 828D Commissioning Manual

The device connection voltage entered in the "Network data" dialog is displayed: This is the
basis for monitoring the
supply voltage (p0281 - p0283) for the alarm threshold and shutdown
threshold.

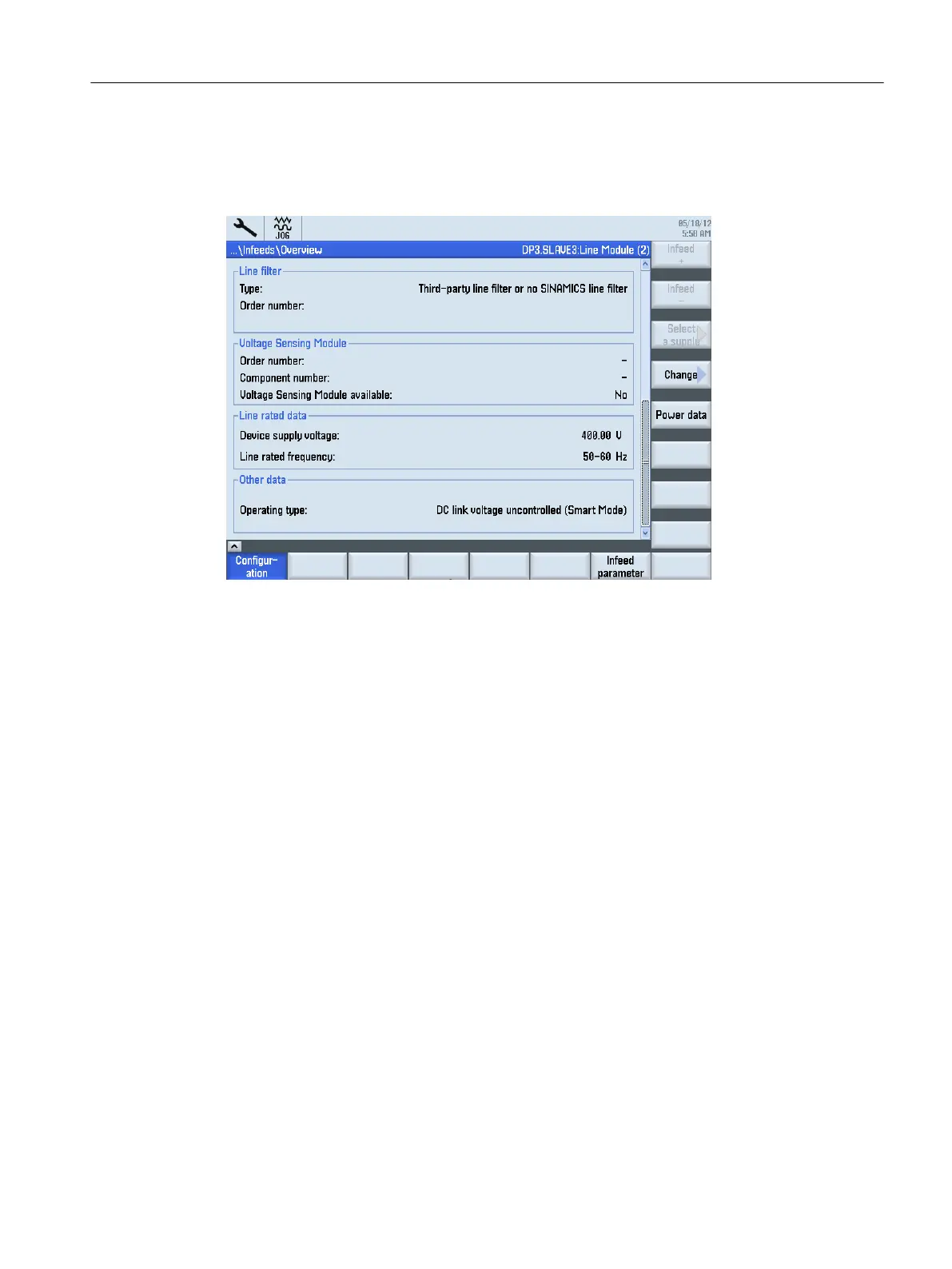

Figure 5-3 S120 Combi infeed (page 2)
5.1.4 Example: This is how you configure the spindle (DO3)
Configuring the spindle
The spindle (drive object DO3) must be manually commissioned, because it is not operated
with an SMI motor. As a consequence, the motor and measuring systems cannot be
automatically determined.
Commissioning the drive
5.1 Commissioning the drive
CNC commissioning
Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3 99

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
