9.7.2 Loading and unloading multitool
A multitool is loaded and unloaded into or out of the magazine just the same as loading or
unloading an individual tool.
Acknowledgment from the PLC and information about the multitool position
Acknowledgment is realized using position value "0" (DB40xx.DBWy004). "0" is a permitted
value and means that the multitool is not positioned. If a multitool is directly loaded to the
spindle or to a
revolver, then after selecting the location or initializing using reset, the tool that
is located at machine data MD20274 $MC_MULTITOOLLOC_DEFAULT is activated.
Example

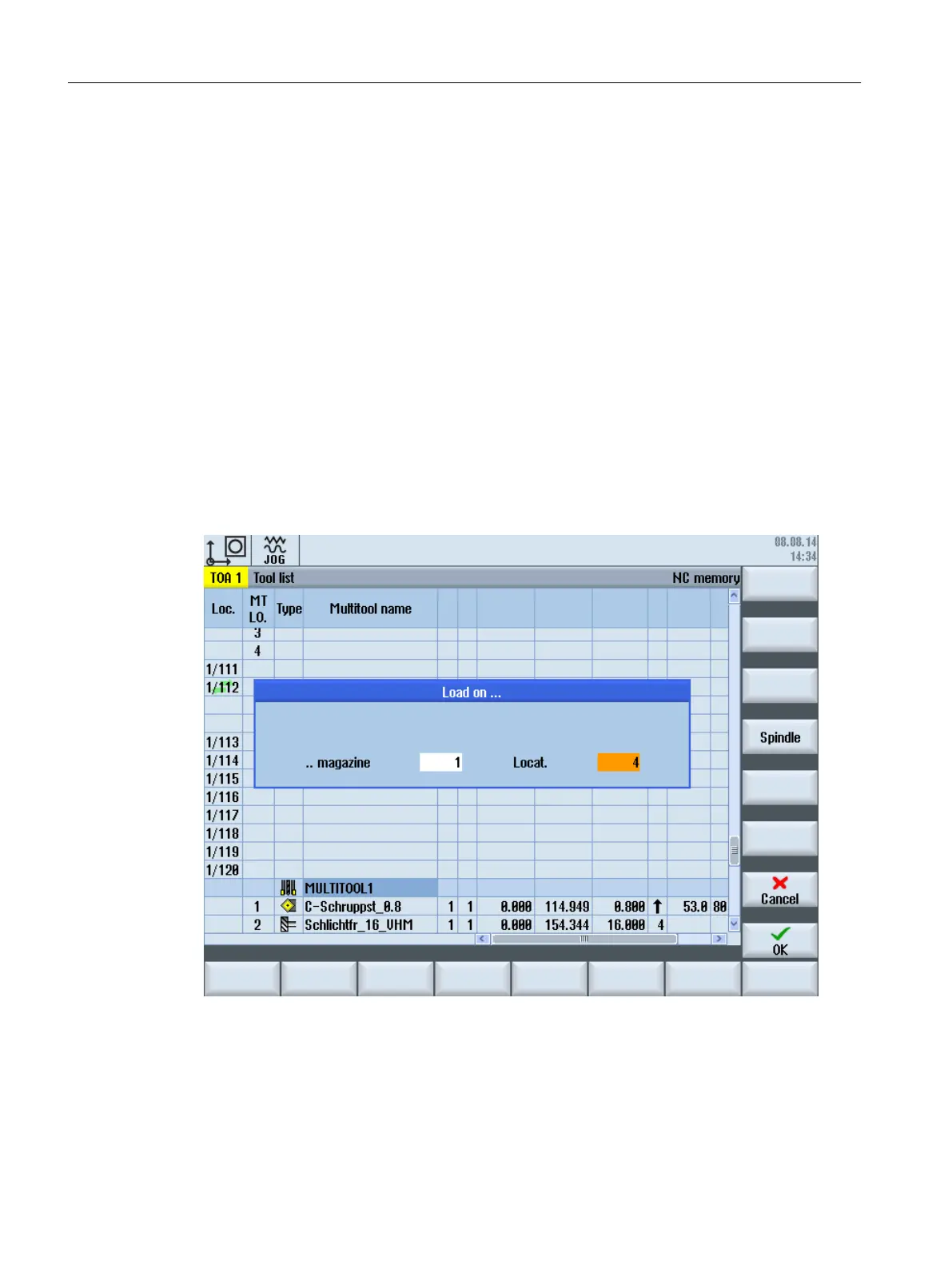

Figure 9-4 Loading dialog for a multitool
Tool management
9.7 Deploy multitool
SINUMERIK Operate
308 Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3
