3.7.5 Example: How to create an online help for user PLC alarms
Overview
If a user PLC alarm is triggered, a context-sensitive online help can be created for the
respective alarm, e.g. with explanation and remedy. The online help texts for the user PLC
alarms are managed in the following file: "sinumerik_alarm_oem_plc_pmc.html"

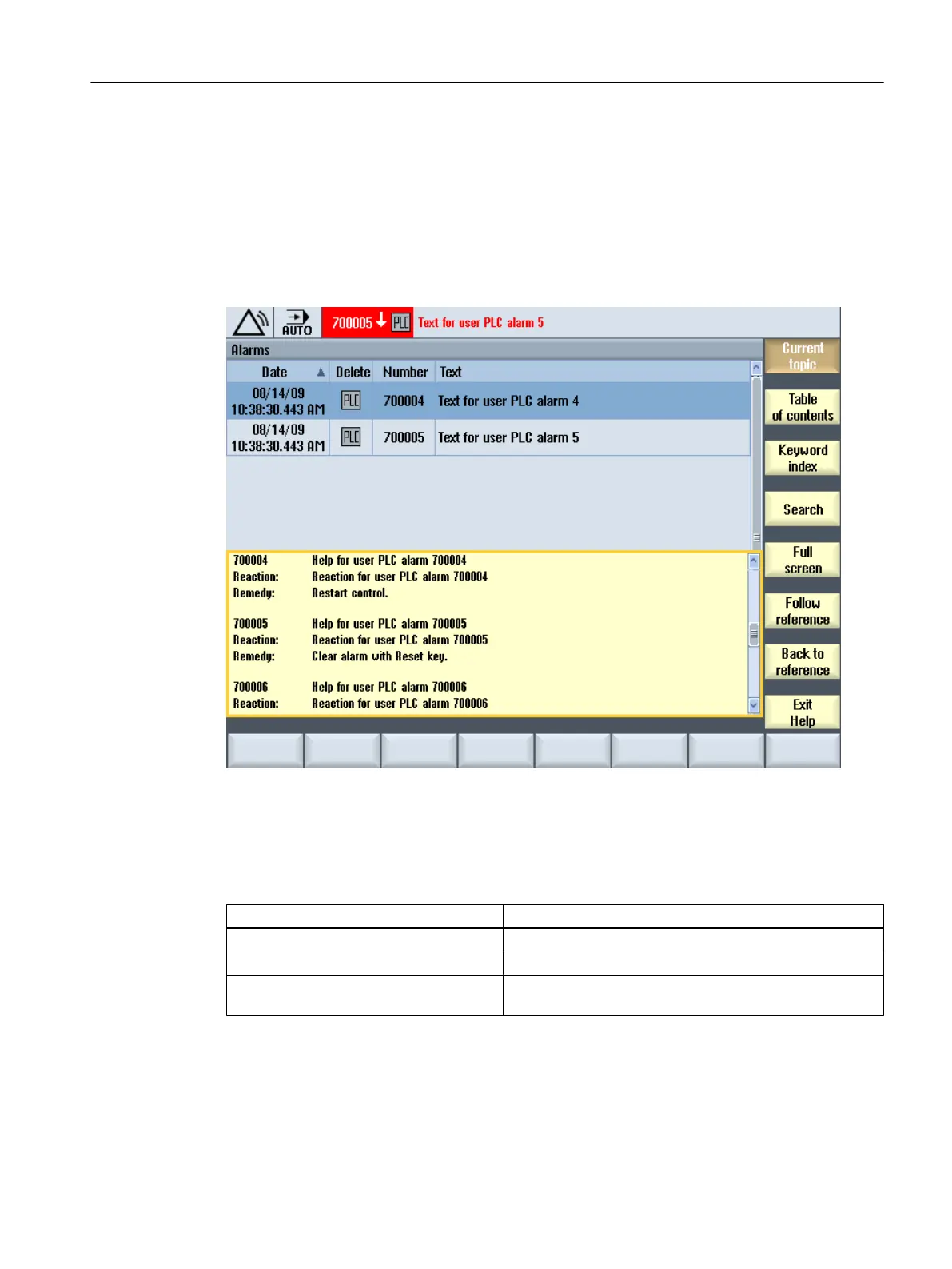

Figure 3-12 Example: Online help of user PLC alarms
Structure of the help file
The following entries are permitted in the help file:
Entry Meaning
<a name="AlarmNo">AlarmNo</a> Hyperlink to the alarm number
<b> .....</b> Help text for the corresponding alarm
<td width="85%">......</td> Text that is displayed after the "Explanation" or "Remedy"
field.
Operating software settings
3.7 Creating OEM-specific online help
CNC commissioning
Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3 69
