Siemens SINUMERIK 828D Commissioning Manual

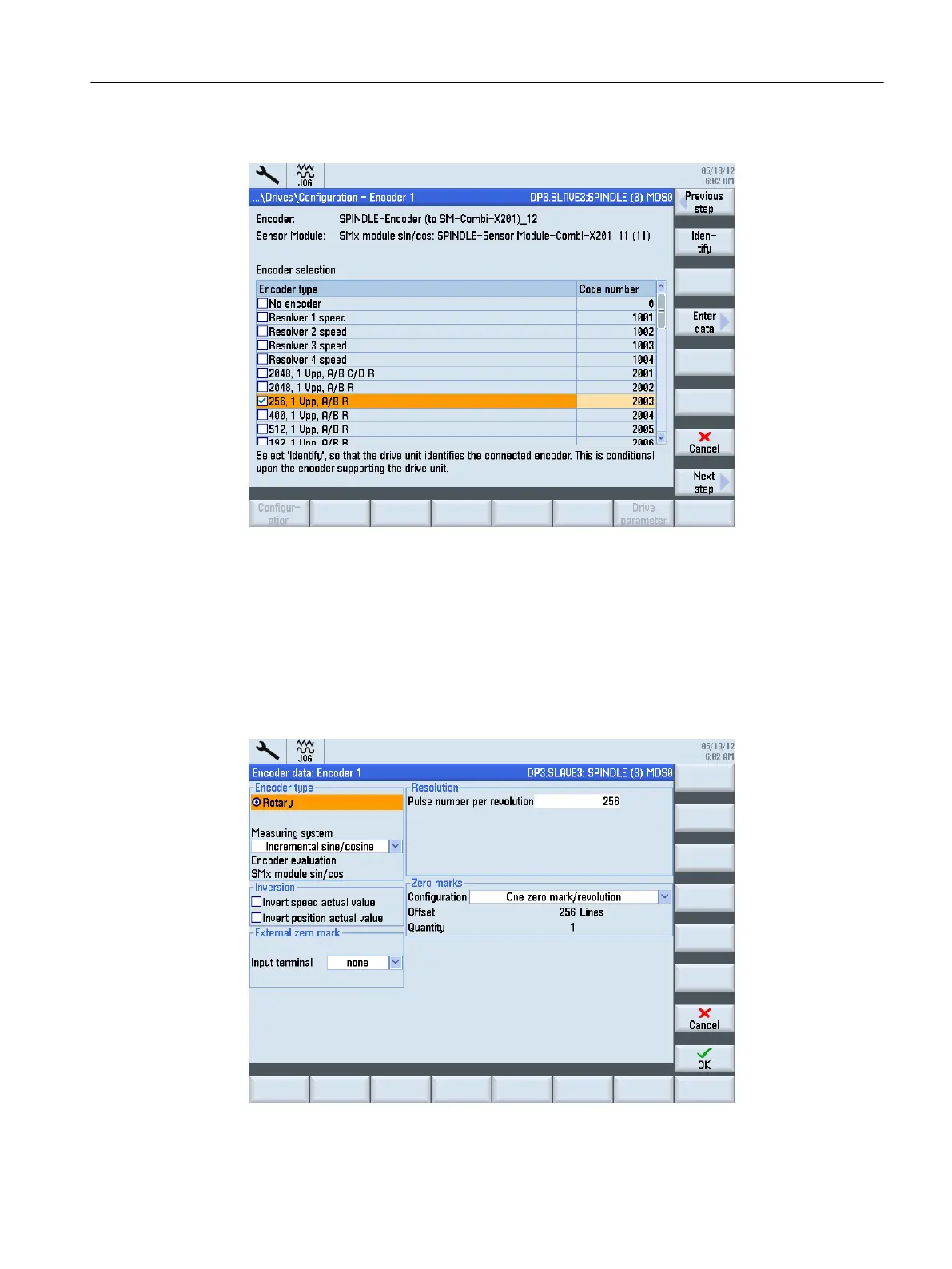

6. Select "Next step" >.
The name of the encoder and the Sensor Module are displayed here via which the encoder
is connected.
– Case 1: Automatically selected with EnDat and DRIVE-CLiQ, no further settings
required. To check the default settings, press the "Enter data" softkey.
– Case 2: Encoder was not
automatically detected. If the connected encoder is in the list,
select the encoder based on the name/code number. Otherwise, select a similar encoder
from the list to enter the encoder data.
7. Select "Enter data >".
Commissioning the drive
5.1 Commissioning the drive
CNC commissioning
Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3 103

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
