Siemens SINUMERIK 828D Commissioning Manual

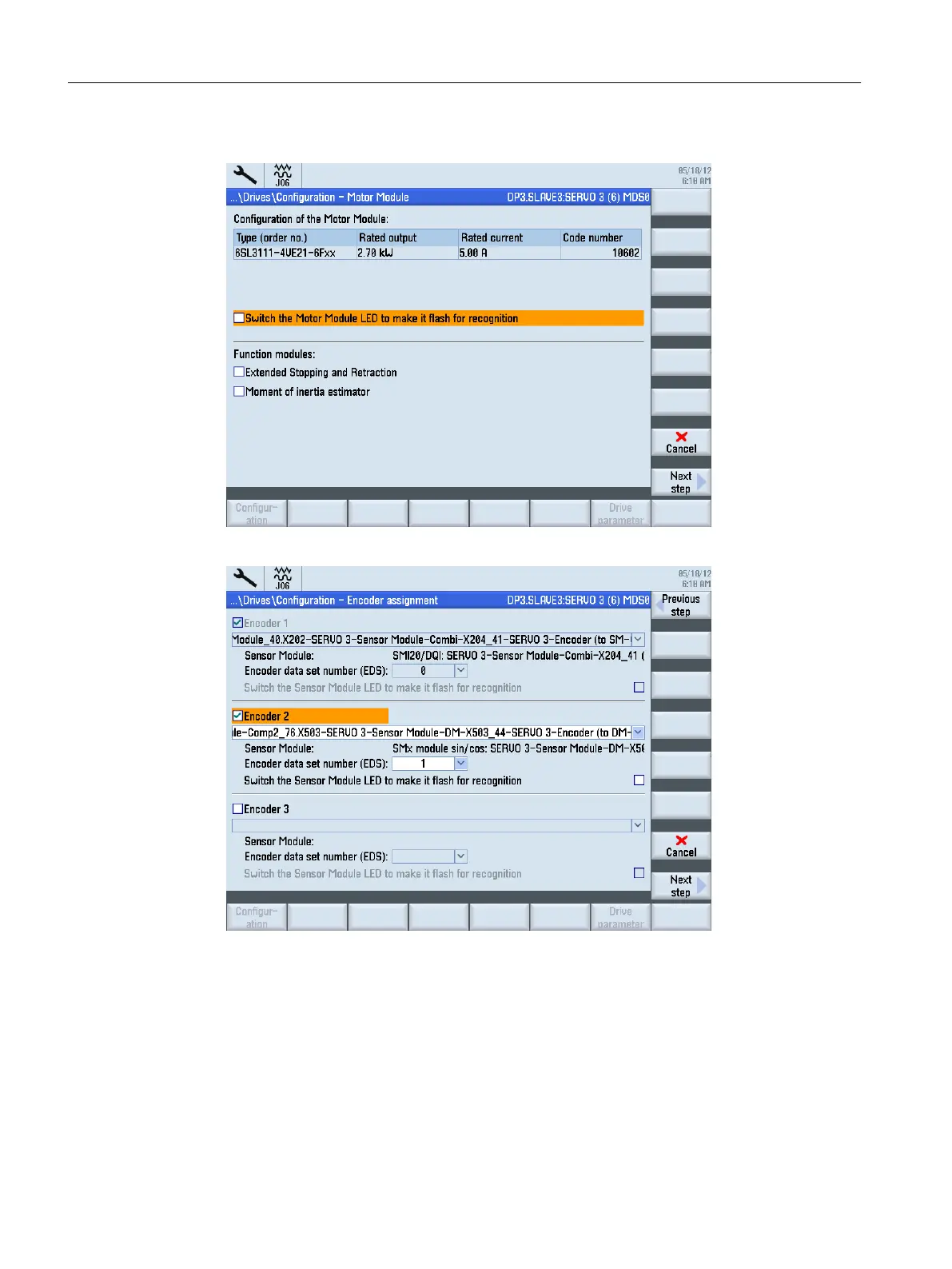

1. Select "Change >".
2. Select "Next step >".
In this case, the Sensor Module (SMx) is already inserted correctly on the SERVO and it
is automatically assigned. More than one measuring system can also be assigned
automatically.
3. Select "Next step >".
Commissioning the drive
5.1 Commissioning the drive
CNC commissioning
116 Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
