6. Select "Finish". In the event of changes, a save query is issued in each case: If you save
the data, then it is retained upon Power On/Off. The data is saved on the CompactFlash
card and can therefore be saved in a commissioning archive.

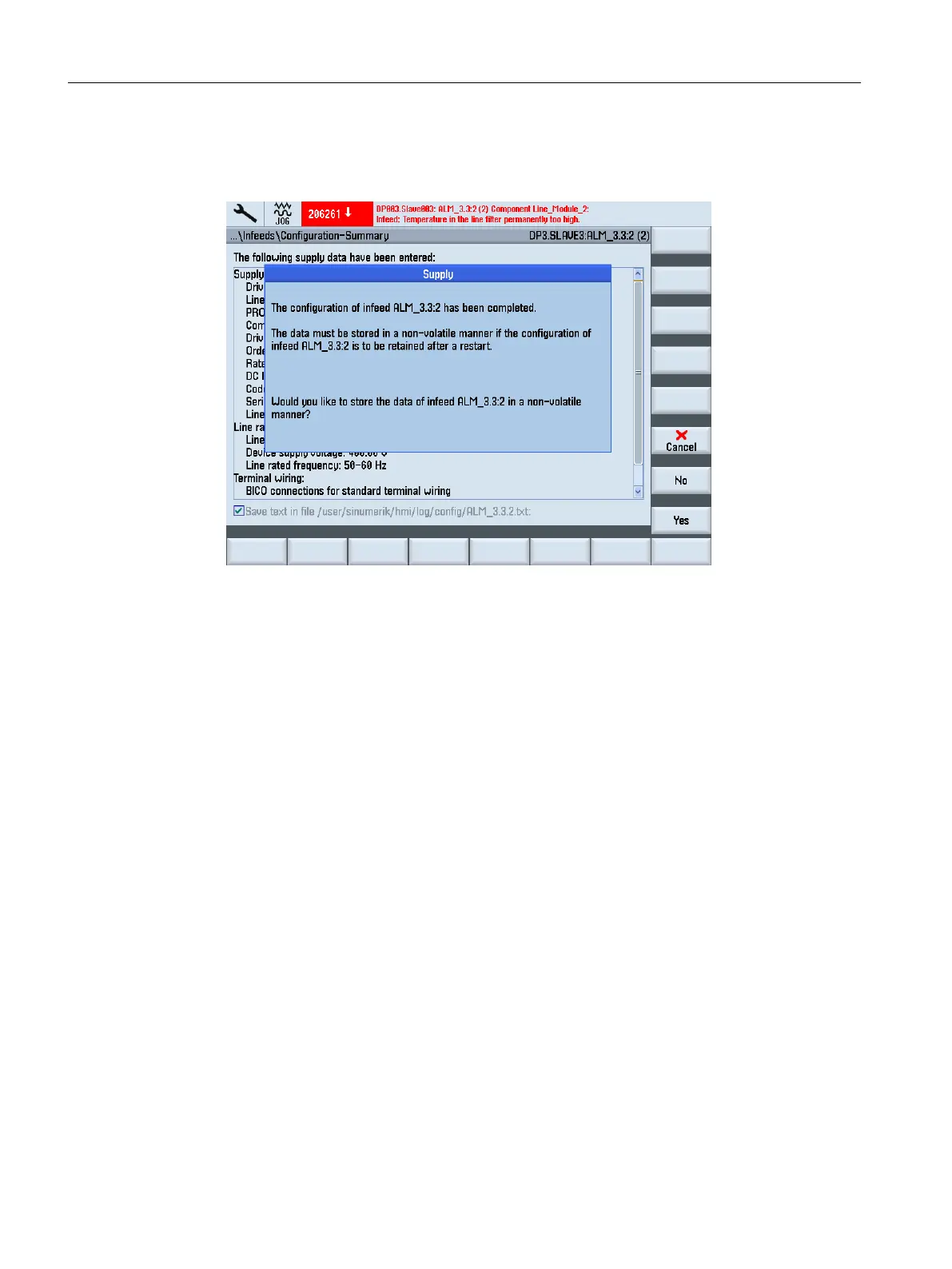

Figure 5-9 Saving the configuration
Commissioning the drive
5.1 Commissioning the drive
CNC commissioning
124 Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3
