Siemens SINUMERIK 828D Commissioning Manual

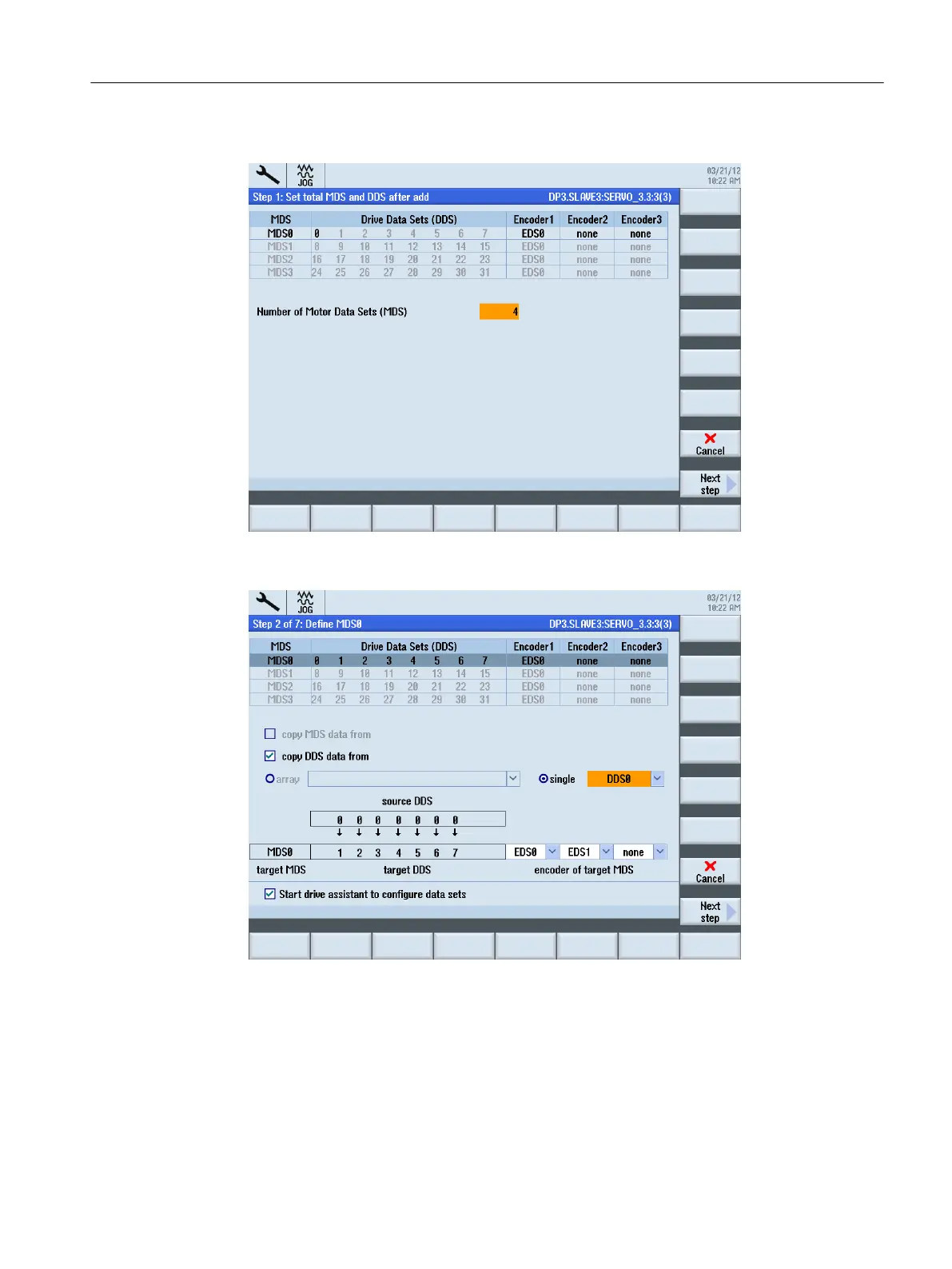

1. Press "Add data set". In the example, the maximum number of four MDSes are created.
2. Press "Next step >".
In the first step, the DDS1 to DDS7 drive data sets are created in the MDS0.
Commissioning the drive
5.6 Configuring data sets
CNC commissioning
Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3 157

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
