Siemens SINUMERIK 828D Commissioning Manual

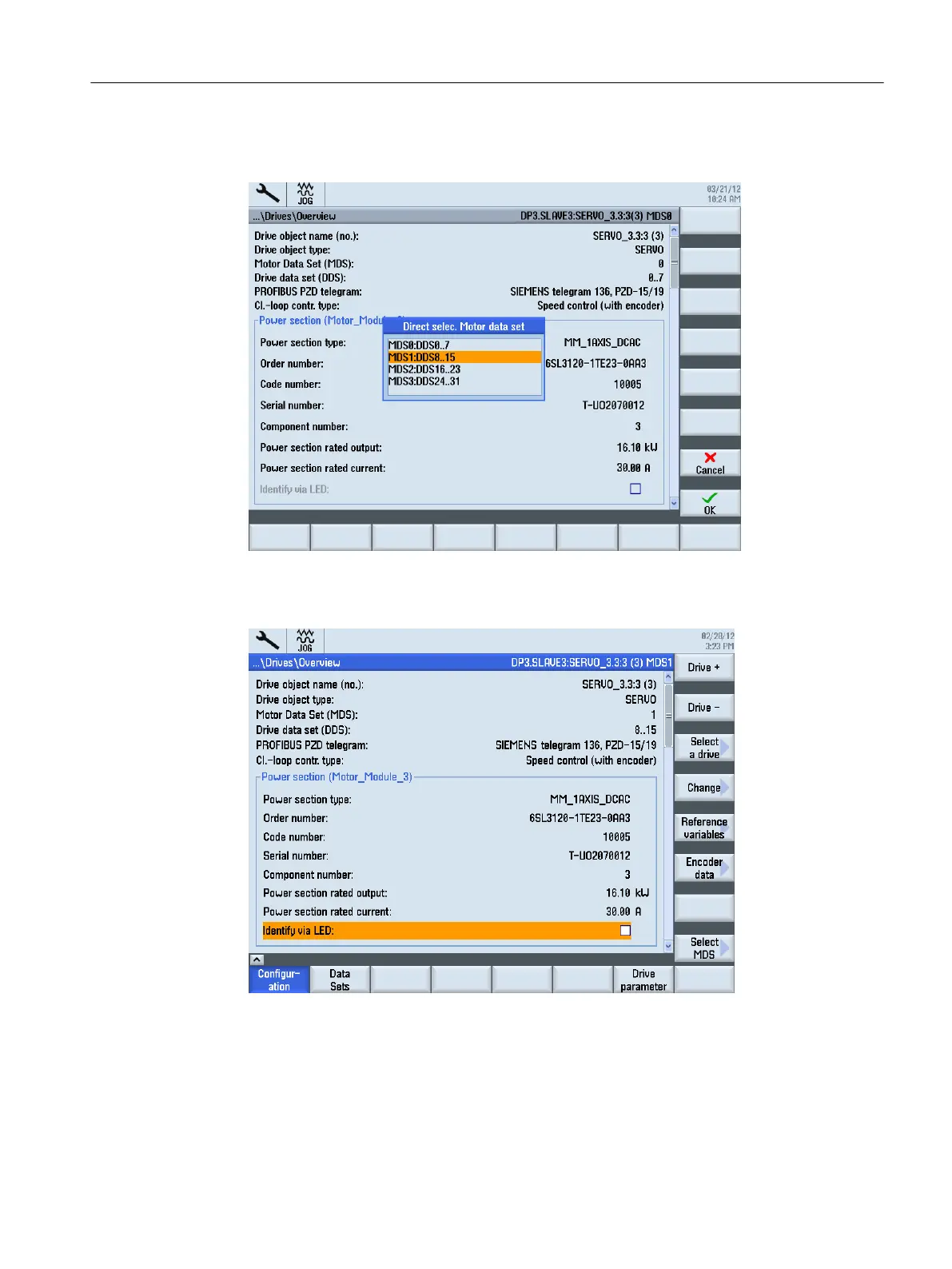

10.The "Drives" → "Overview" dialog of the drive object is displayed. The "Select MDS >"
softkey is now available. Press "Select MDS...".
In the direct selection, select the motor data set, e.g. in this case MDS1.
11.Press "OK" to display the new motor data set for the drive object.
The drive is now operational.
Commissioning the drive
5.6 Configuring data sets
CNC commissioning
Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3 161

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
