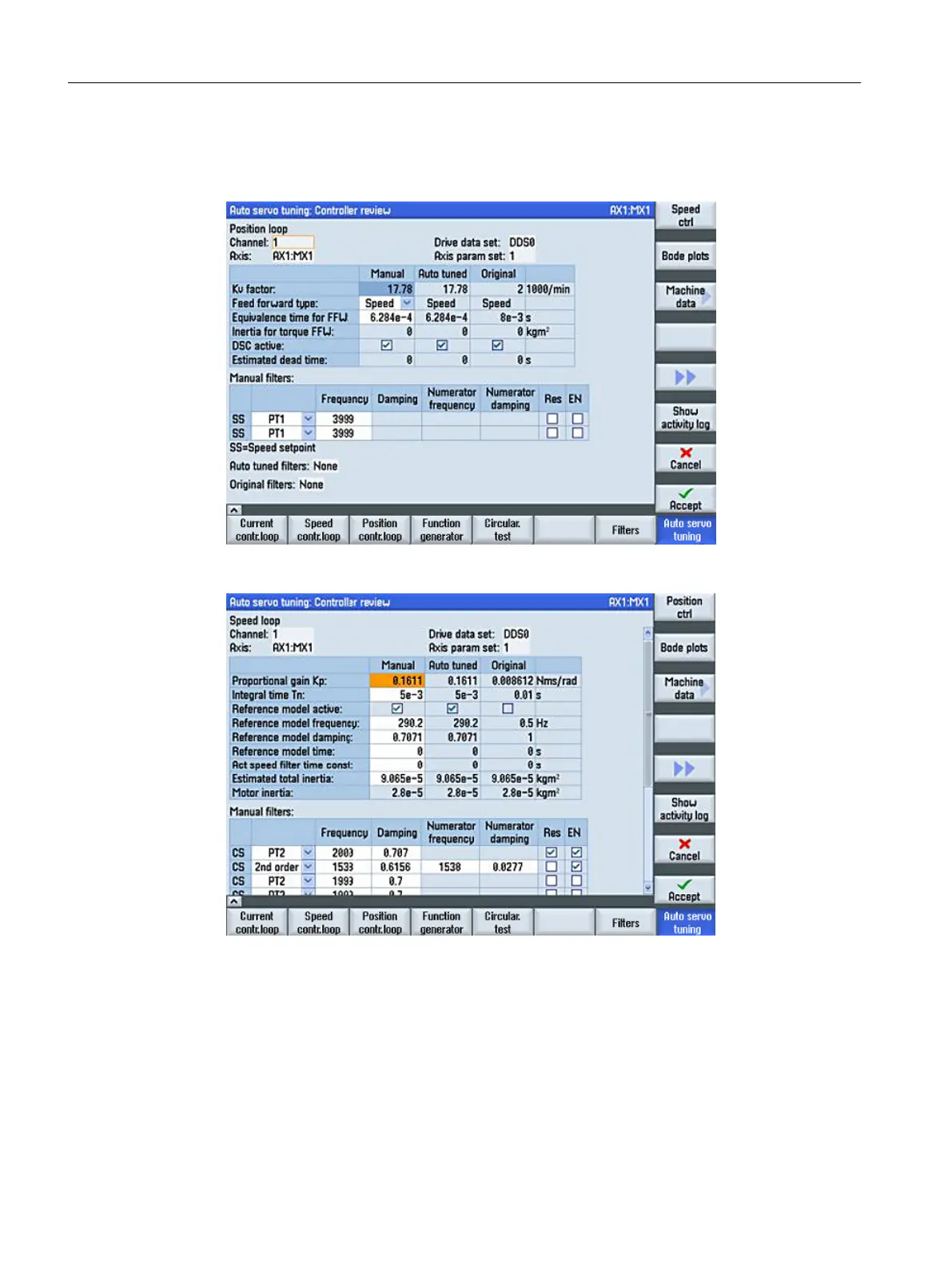

4. On completion of the tuning, the following display appears in which the new values and the
original values should be checked.
Example: Position controller
Example: Speed controller
The new values are accepted when the "Accept" softkey is pressed.
5. The following message indicates that more axes must be tuned to provide a regular
interpolation result:
Tuning
6.2 Automatic servo optimization
CNC commissioning
178 Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3
