Siemens SINUMERIK 828D Commissioning Manual

Motor data sheet
Example: 1PH8089-1VM02-0MG1 induction motor

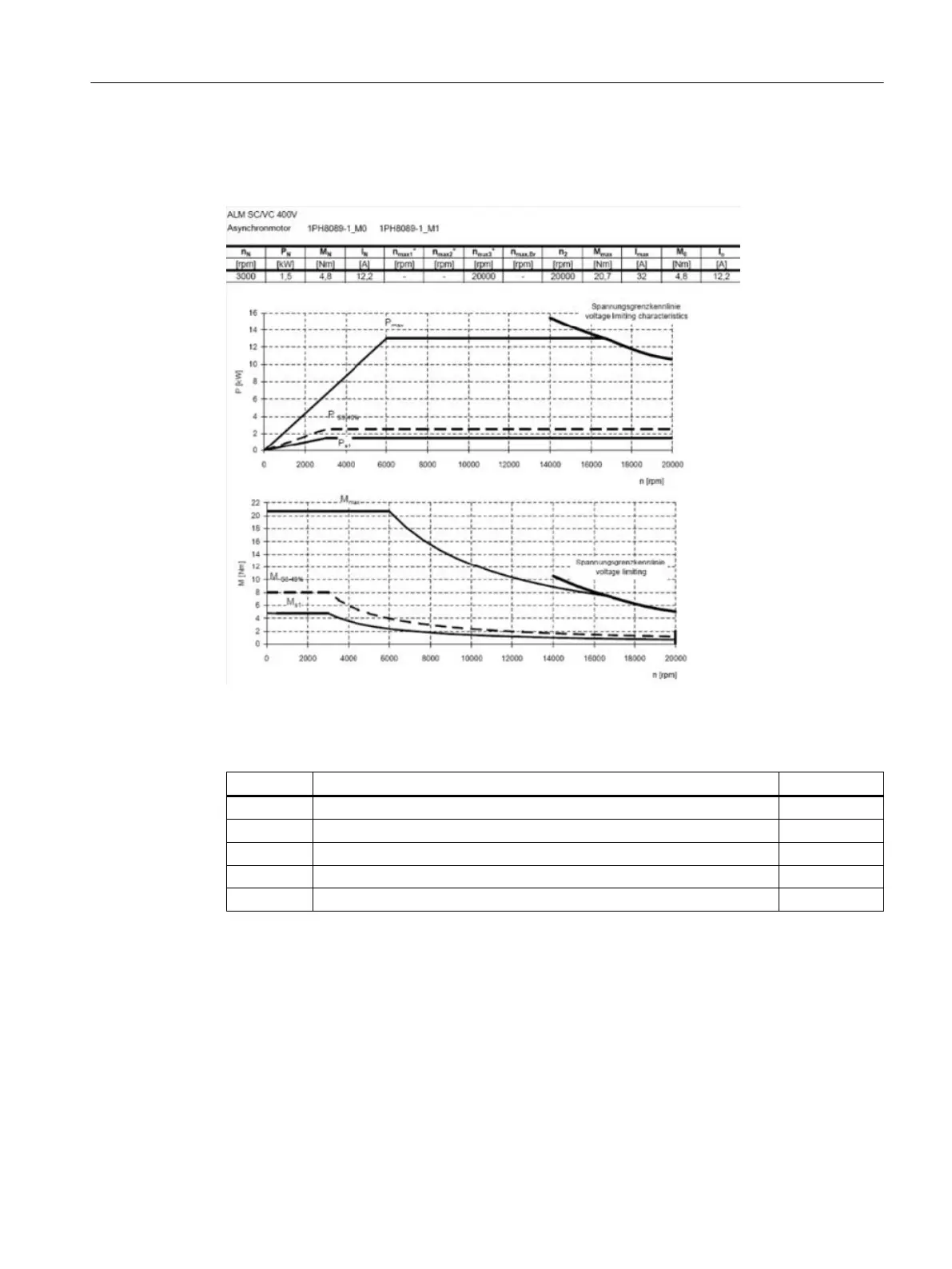

Figure 6-6 1PH8 induction motor
Accelerating and decelerating with
the original data of the motor corresponds to the S1 curve.
Number Designation Value
p0640 Current limit (p0305 motor rated current * 1.5) 17.7 A
p1520 CO: Torque limit upper/motorized M_max upper/mot 4.8 Nm
p1521 CO: Torque limit lower/regenerative / M_max lower/gen -4.8 Nm
p1530 Power limit motorized / P_max mot 1.5 kW
p1531 Power limit regenerative / P_max gen -1.5 kW
Tuning
6.5 Optimize the spindle
CNC commissioning
Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3 197

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
