Configuration with SINAMICS S120 Combi
The following configuration shows an example with SINAMICS S120 Combi:
SINUMERIK 828D
BASIC
DRIVE-CLiQ
SINAMICS S120
Motor Module
Booksize Compact format
1FK7 feed motor 1FK7 feed motor 1FK7 feed motor1FK7 feed motor
1PH8 auxiliary spindle
1PH8 spindle
motor
3 AC
380 ... 480 V
SINAMICS S120
Combi
Line
reactor
Optional line
filter
TTL spindle encoder
Up to 5 linear scales
DMC20/DME20
X100
X101
X102

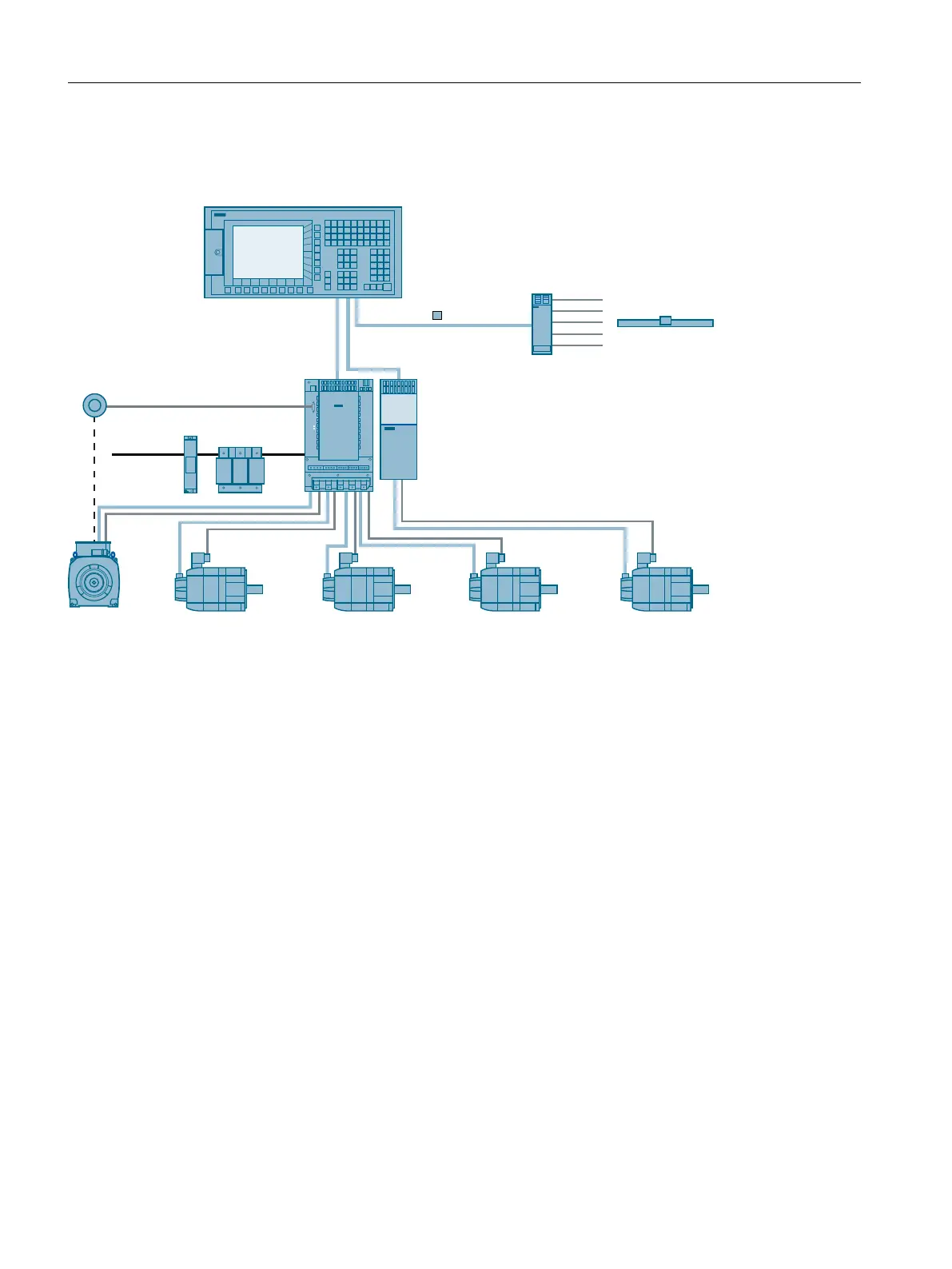

Figure 1-2 Configuration example 2: SINUMERIK 828D BASIC with S120 Combi
Scope of delivery and requirements
1.1 System overview
CNC commissioning
10 Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3
