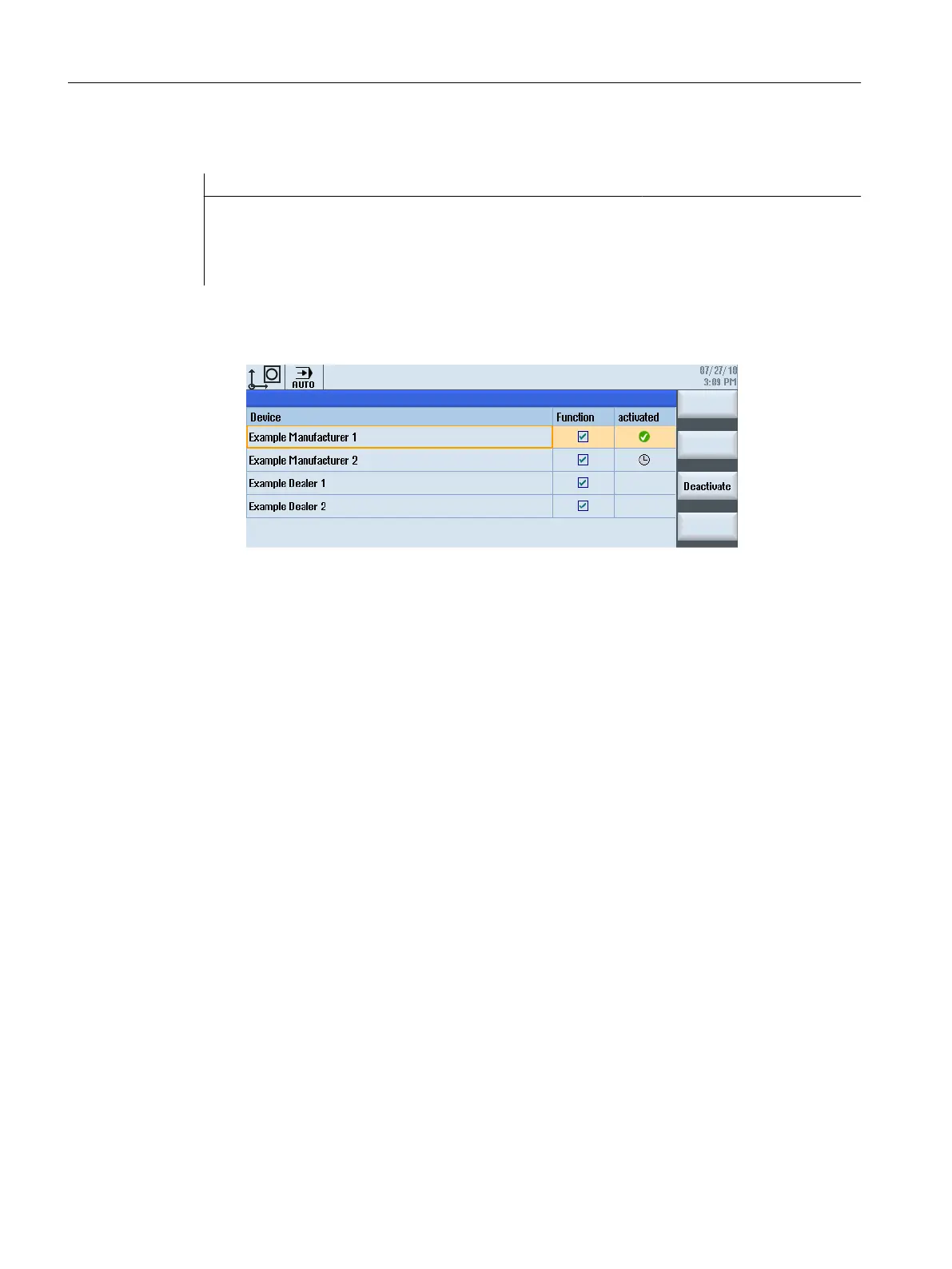

Example of a fixed assignment:
<device option_bit="bit number">
...
</device>
Example
①
②
③
④
Block-by-block assignment:
① DB9905.DBB0 Device 1
② DB9905.DBB4 Device 2
...
③ DB9905.DBB192 Device 49
④ DB9905.DBB196 Device 50
Assignment to free locations:
① DB9905.DBB0 Device 1
② DB9905.DBB4 Device 2
...
③ DB9905.DBB72 Device 19
④ DB9905.DBB76 Device 20
...
Feedback from the PLC
If
dealers cannot integrate
their own PLC logic, then the PLC feedback signals must be set by
the script.
Easy Extend
8.3 Option bits for machine manufacturers and dealers
CNC commissioning
242 Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
