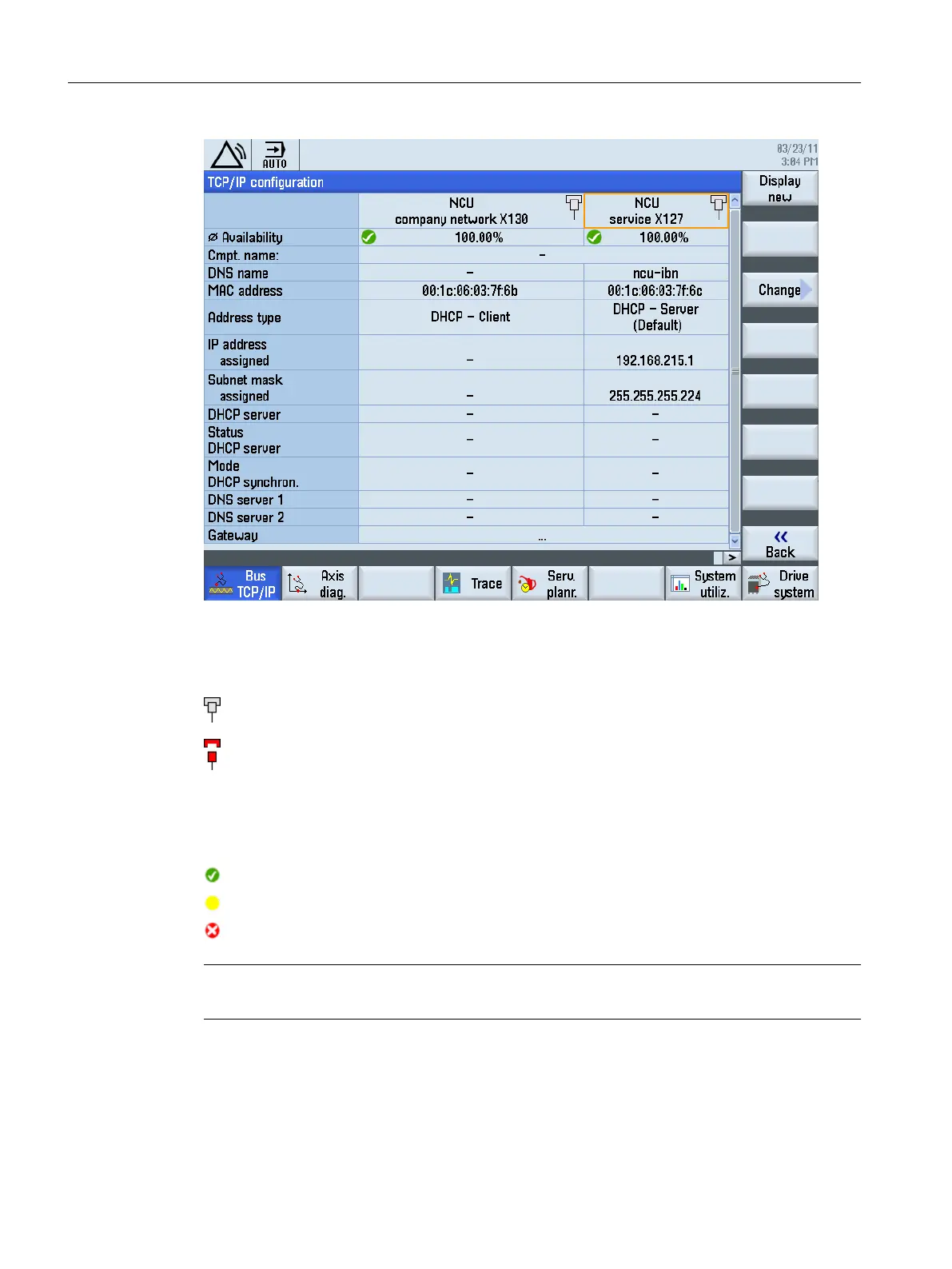

Figure 1-3 Network settings
Company network X130
white Network cable inserted
red Network cable not inserted
Availability
The availability describes the percentage of faulty data compared to the entire data volume.
Problems in the company network (e.g. logical drives that cannot be reached, double IP ad‐
dress, etc.) as well as settling time during power up can result in fluctuations in availability:
green Greater than 95%
yellow 50 - 95 %
red Less than 50%
Note
All information that is not available is marked in the relevant table line with a hyphen "-".
Scope of delivery and requirements
1.6 Communication with the control
CNC commissioning
24 Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
