Siemens SINUMERIK 828D

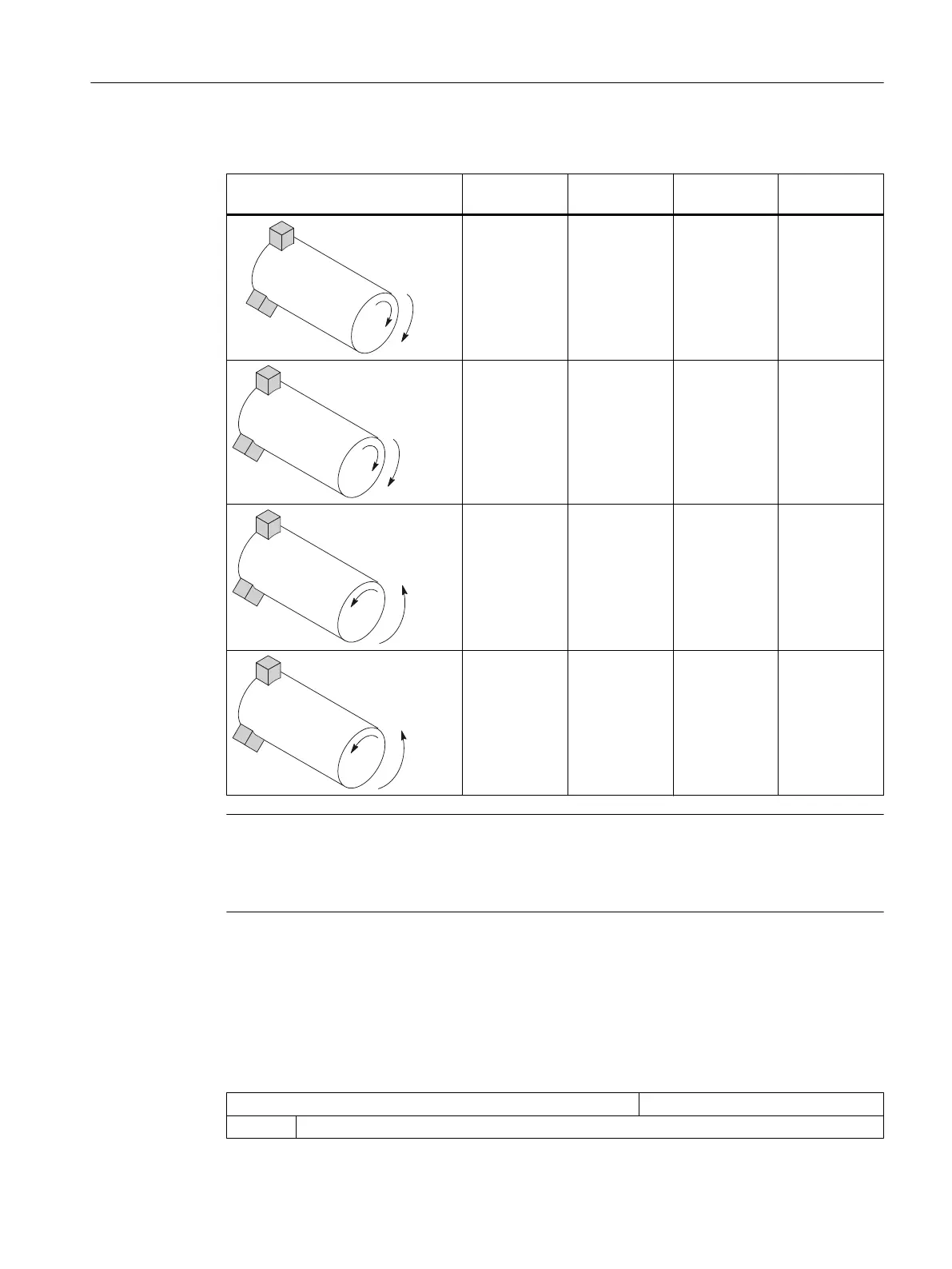

As a result, the following setting options are obtained for the main spindle:
Main spindle direction of rotation 52207[n]
bit 3 =
52207[n]
bit 4 = *)
52207[n]
bit 5 =
DB38xx
DBX2001.6
&
0
0 0 0 0
&
0
0 1 1 1
0
&
1 1 0 0
0&
1 0 1 1
Note
MD52207[n] bit 4 = *)
Bit 4 can be
set from the operator's view (values as specified) or according to DIN ("0" and "1"
are then interchanged).
Dimensions
To define the reference point for moving the counterspindle, you must first communicate the
dimensions of the counterspindle. You can either enter the dimensions in the following axis-
specific cycle machine data
or in the menu "Parameter" -> Setting data -> Spindle chuck data"
Changes to the machine data are automatically accepted in the menu and vice versa.
MD53240 $MAS_SPINDLE_PARAMETER[ ] Spindle chuck data
[0] Chuck dimensions
Configuring cycles
7.5 Turning
SINUMERIK Operate
Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3 107
