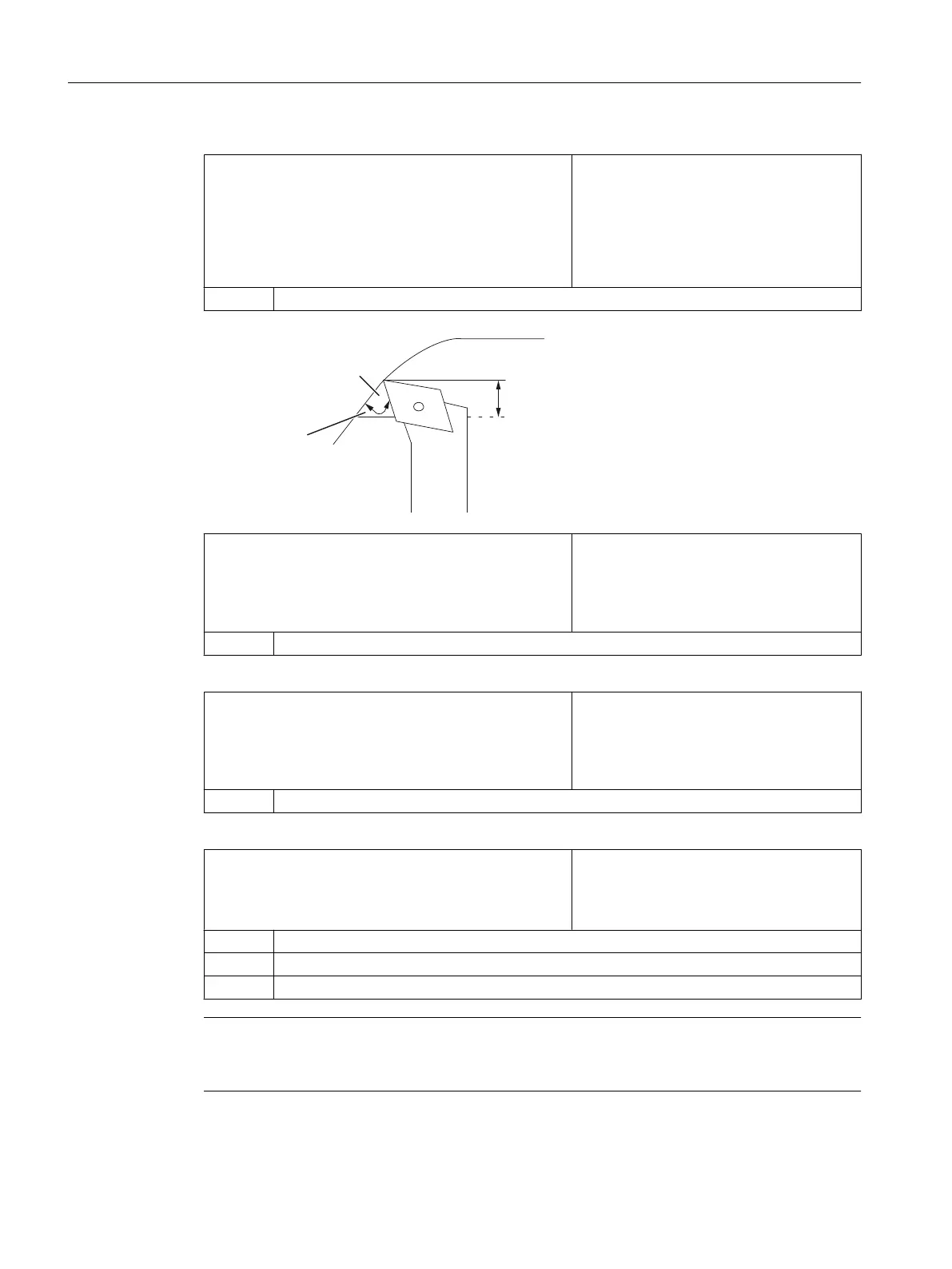

SD55582 $SCS_TURN_CONT_TRACE_ANGLE
The angle between cutting edge and con‐
tour as of which rounding is performed on
the contour during contour turning in order
to remove residual material.
If the angle of
the residual material is greater
than that specified in the setting data, the
tool will round the contour.
= 5 5 degree angle
&RQWRXU
$QJOH
5HVLGXDOPDWHULDO
&X
UUHQWFXWWLQJGHSWK'
SD55583 $SCS_TURN_CONT_VARIABLE_DEPTH Percentage of the changing cutting depth
when turning a contour
You can select changing the cutting depth
for stock removal and
for removing residual
material.
= 20 20% variable cutting depth
SD55584 $SCS_TURN_CONT_BLANK_OFFSET Safety clearance when avoiding obstacles,
to avoid collisions during approach or retrac‐
tion from the machining.
This also applies to stock removal, grooving
and plunge turning.
= 1 1 mm or 1 inch blank allowance
SD55585 $SCS_TURN_CONT_INTERRUPT_TIME Time for the feedrate interruption for contour
turning.
This also applies to
stock removal, grooving
and plunge turning.
= > 0 Interruption time in seconds
= < 0 Interruption time in revolutions
= 0 No interruption
Note
The channel-specific cycle setting data SD55585 is only evaluated if
SD55586 $SCS_TURN_CONT_INTER_RETRACTION = 0.
Configuring cycles
7.5 Turning
SINUMERIK Operate
116 Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3
