Siemens SINUMERIK 828D

¡
5RWDU\D[LV%
5RWDU\D[LV&
5HIHUHQFHSRLQWRIWKHPDFKLQH
0.6;<=
,

,\ 
,
,] 
,
9
9
,] 
;
=
<
Rotary axis vector V1 Rotary axis B rotates around Y and around Z.
Rotary axis vector V2 Rotary axis C rotates about Z.
Offset vector I2 The distance from the reference point of the machine to the center of rotation/
intersection of rotary axis 1.
Offset vector I3 The distance from the center of rotation/intersection of rotary axis 1 to the
center of rotation/intersection of rotary axis 2.
Offset vector I4 Closure of vector chain, I4 = - (I2 + I3).

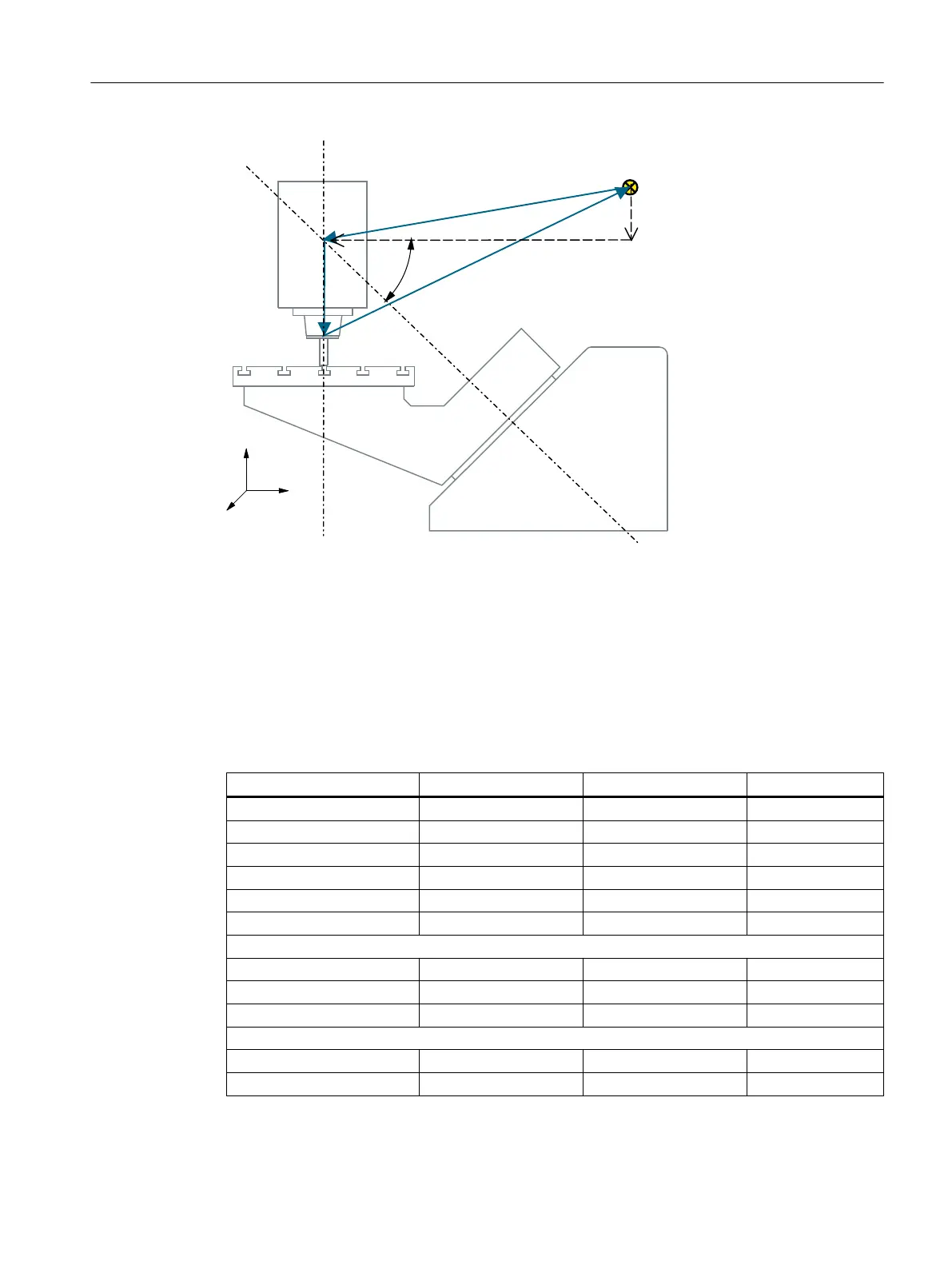

Figure 7-11 Side view of the machine
Kinematics Swivel table TABLE_45
X Y Z
Offset vector I2 0.000 -100.000 -20.000
Rotary axis vector V1 0.000 -1.000
1)
1.000
1)
Offset vector I3 0.000 0.000 -30.000
Rotary axis vector V2 0.000 0.000 -1.000
Offset vector I4 0.000 100.000 50.000
Display version
Swivel mode Axis-by-axis
Direction reference Rotary axis 2
Correct tool No
Rotary axes
Rotary axis 1 B Mode Auto
Angular range 0.000 180.000
Configuring cycles
7.7 Swiveling
SINUMERIK Operate
Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3 153
