</MAGAZINE_1>
</MAGAZINEPLACENAMECONFIGURATION>
Name for a magazine
Dedicated texts can also be allocated for magazines. The text or the text identifier is entered
into the magazine configuration file (ini file) of the NC. The system variable for the magazine
name is $TC_MAP2[magNo]. The

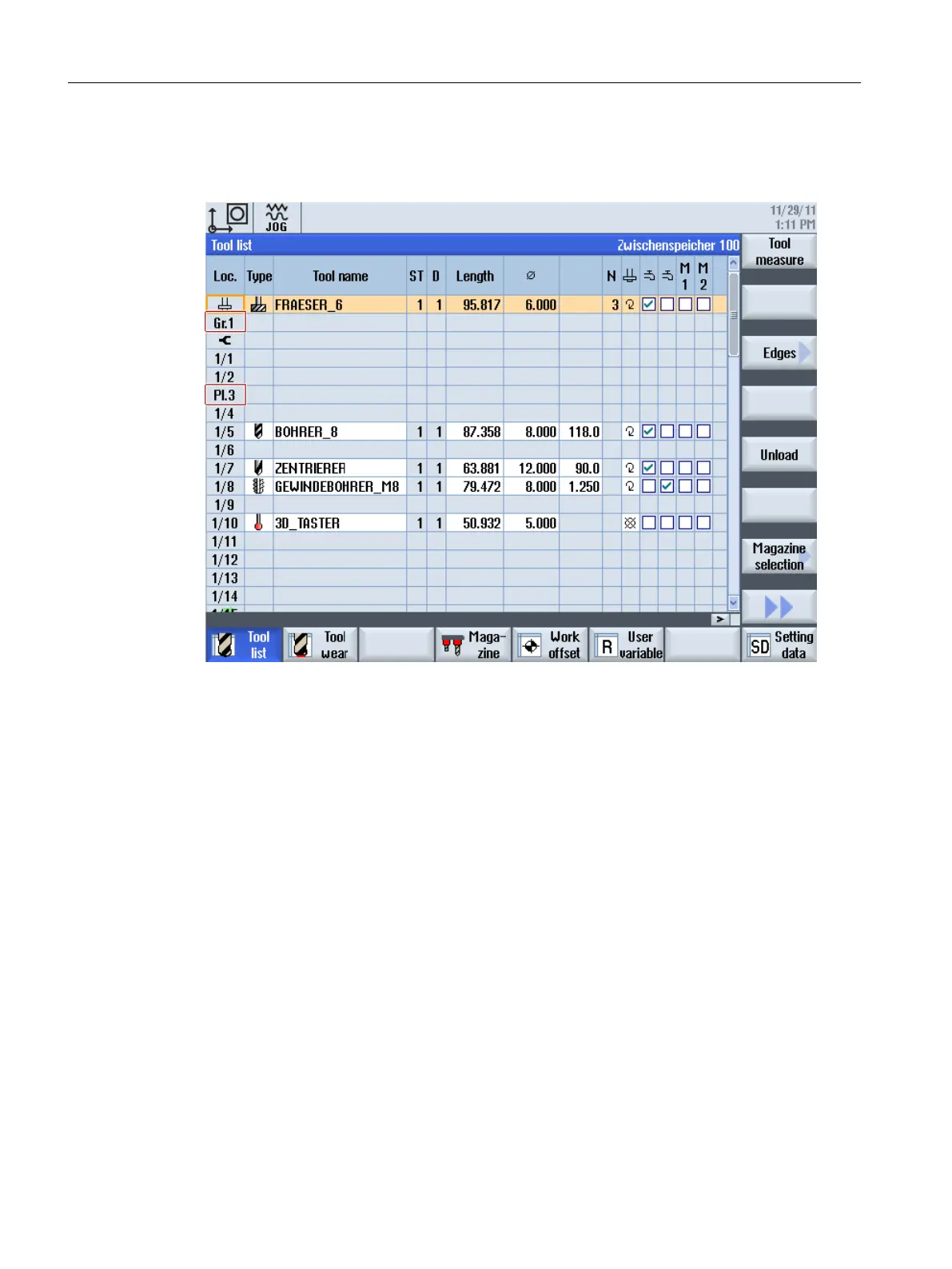

magazine name is displayed at the top right in the tool lists.
Example
Magazine 1 should have the name "main magazine".
$TC_MAP2[1]="main magazine"
If the "main magazine" text is to be output language-dependent, then the language-dependent
texts for the text identifier "main magazine" must be created.
See also
Please refer to the following section for the procedure to create language-dependent text:
Creating OEM texts (Page 288)
Tool management
9.2 Configuring the user interface
SINUMERIK Operate
270 Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3
