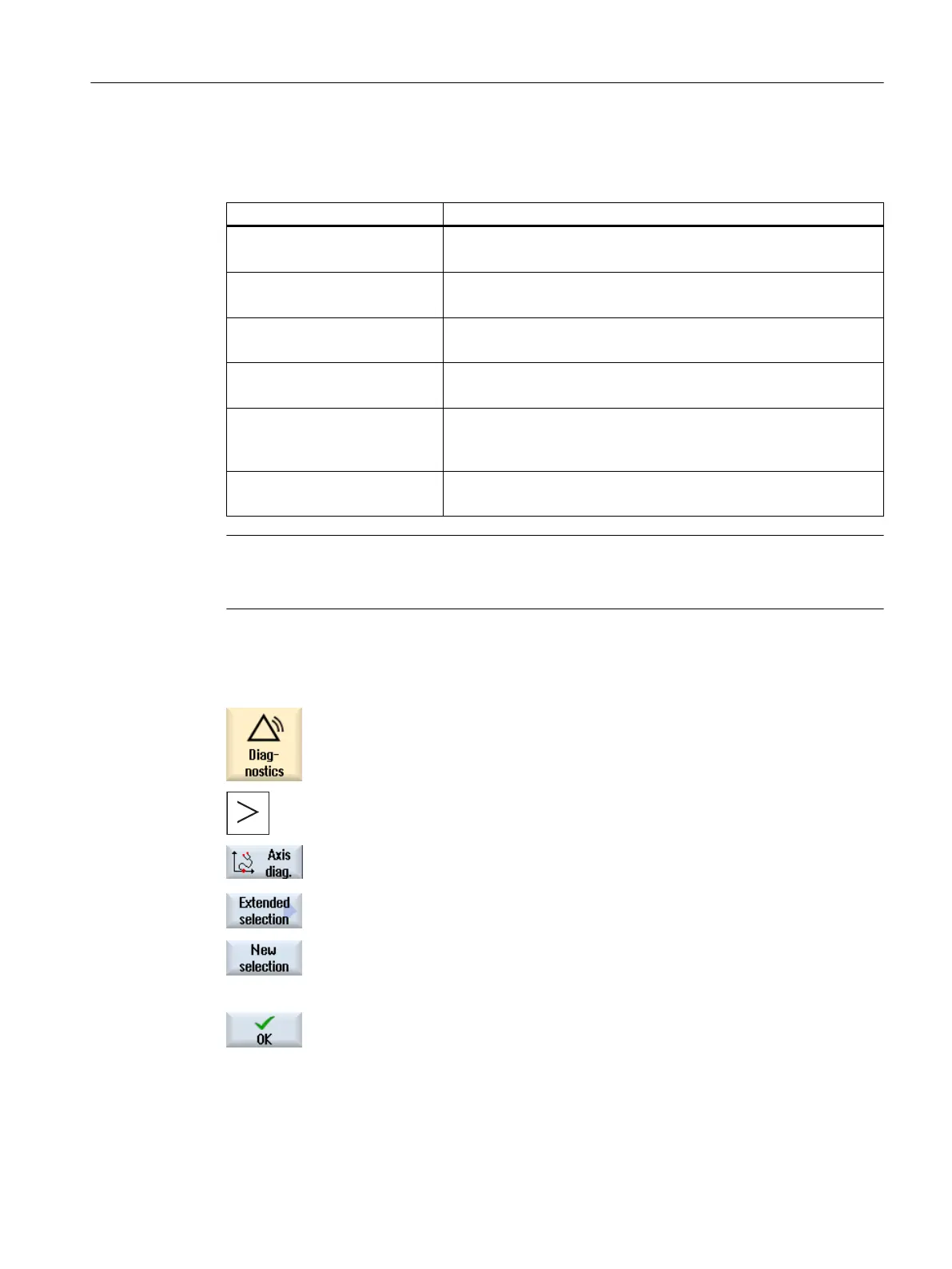

Selection overview
The following information is provided in the selection overview.
Column Description
Bus No. Bus number for drives without NC assignment.
No entry for NC axes.
Slave address Slave address for drives without NC assignment.
No entry for NC axes.
Device No. Device number for drives without NC assignment.
No entry for NC axes.
Drive object No. Drive object number for drives without NC assignment.
No entry for NC axes.
Name/identifier For NC axes contains the standard machine axis identifier and the
user-defined machine axis names.
For
drives without NC
assignment, contains the drive object names.
Assignment NC is displayed for an internal object assignment.
PLC is displayed for an external object assignment.
Note
The selection overview differs in the information provided regarding the slave address and
device number between PROFIBUS and PROFINET configuration.
Procedure
1. Select the "Diagnostics" operating area.
2. Press the menu forward key.
New horizontal softkeys are displayed.
3. Press the "Axis diagn." softkey.
The "Service Overview" window opens.
4. Press the "Extended selection" softkey.
The window "Extended selection: Axes and drives" opens.
5. Press the "New selection" softkey.
The "New selection" dialog is opened.
6. Enter a display and a file name in the entry fields.
7. Confirm the entry with the "OK" softkey.
The "Edit selection" window is opened for the newly created selection.
8. Set checkmarks in the check boxes for the axes and drives that you wish
to display.
- OR -
Press one of the following softkeys to obtain a certain selection:
Service and diagnostics
10.2 Displaying the Service overview
SINUMERIK Operate
Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3 327
