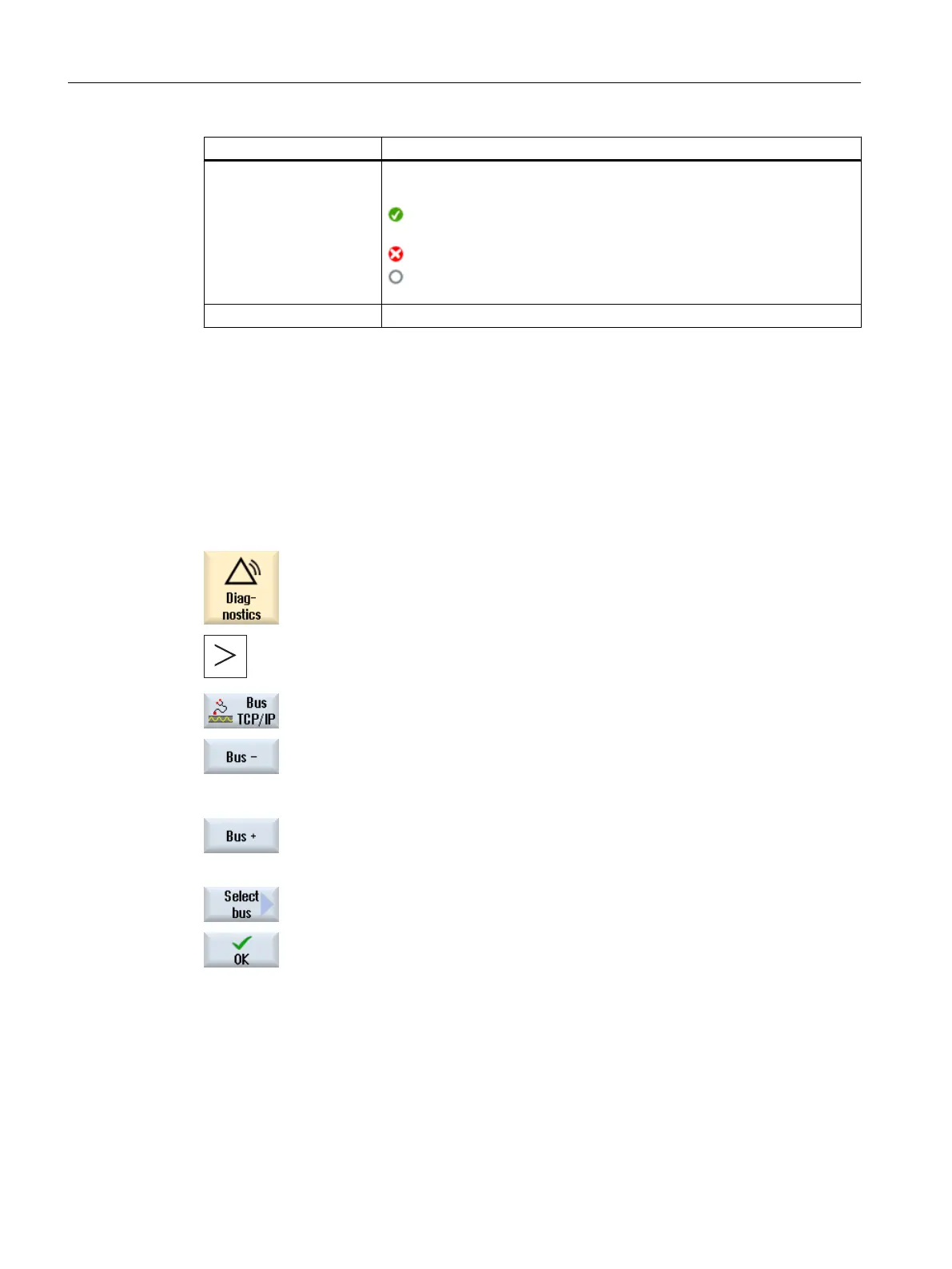

Display Meaning/information
Synchr. with NC Information as to whether the PROFINET device is running synchronously
to NC on the bus.
Green: The PROFINET is running synchronously to the NC on the
PROFINET, i.e. there is an isochronous data exchange.
Red: Incorrect response / no communication
Gray: The PROFINET device is not assigned to the NC, but rather to
the PLC.
Number of subslots Number of configured subslots within the PROFINET device.
References
For further information about the network interface for PROFINET, please refer to:
● SINUMERIK 828D PPU Manual
● SINUMERIK 828D Commissioning CNC Commissioning Manual
Procedure
1. Select the "Diagnostics" operating area.
2. Press the menu forward key and the "Bus TCP/IP" softkey.
The "PROFINET/PROFIBUS Diagnostics" window opens.
...
3. Press the "Bus -" or "Bus +" softkey to select the desired bus.
- OR -
4. Press the "Select bus" softkey and select the desired bus in the displayed
list.
5. Press the "OK" softkey.
Service and diagnostics
10.3 PROFINET diagnostics
SINUMERIK Operate
342 Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3
