or

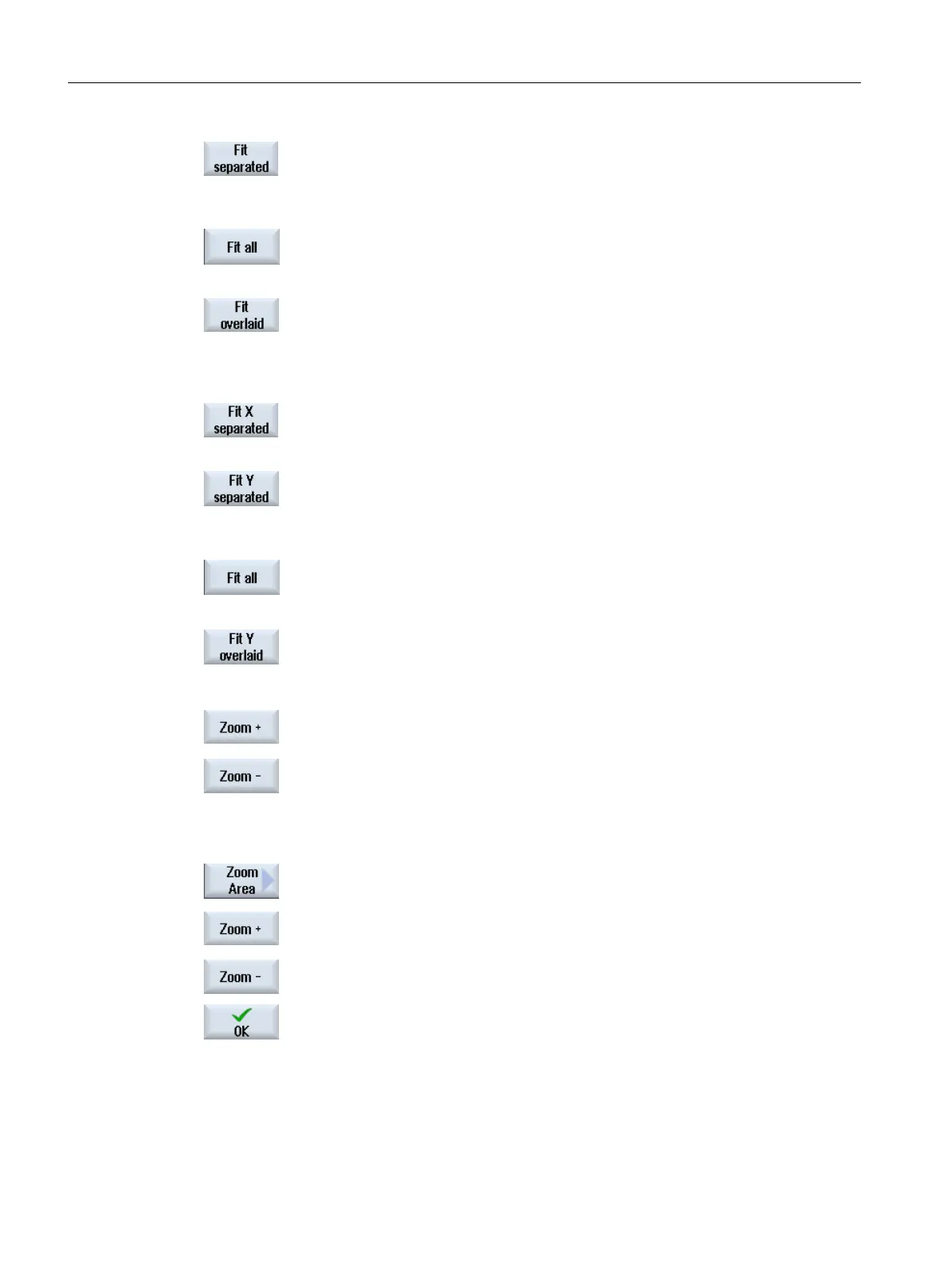

4. Press the "Adapt individually" or "Adapt all" softkey if you wish to display
all selected characteristic graphs
in a separate area positioned one above
the other.
- OR -
Press the "Adapt together" softkey if you wish to adapt all of the charac‐
teristic graphs to the graphic window.
As all of the curves fill the complete window area, they are displayed
superimposed on one another.
- OR -
Press the "Individually adapt X" softkey if you wish to normalize the X time
axis only in the graphic window.
- OR -
or
Press the "Individually adapt Y" or "Adapt all" softkey if you only wish to
scale the Y value axis in the graphic window.
- OR -
Press the "Adapt Y together" softkey if you wish to adapt the value axis
of all characteristic graphs to the graphic window.
As all curves fill the complete window area, they are displayed superim‐
posed.
5. Press the "Zoom +" or "Zoom -" softkey until the desired display size is
reached.
Zoom in/zoom out area
Press the "Zoom area" softkey to define a specific section.
A frame is displayed.
Press the "Zoom +" or "Zoom -" softkey to change the frame step-by-step.
Press the "OK" softkey to display the zoom area.
Service and diagnostics
10.4 Trace
SINUMERIK Operate
358 Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3
