File type Name of the file Meaning Storage location in operating

area Setup > System data

Bitmaps The control system supports

BMP and PNG formats.

Manufacturer's folder > sub‐

directory "ico"

The bitmaps are

saved in the

subdirectory for the screen

resolution belonging to the

control.

Note: If a path to the bitmap

file is specified, the files can

be stored in this directory di‐

rectly.

XML files inserted in the

"xmldial.xml" control file

with the "INCLUDE"

XML

tag.

E.g. "machine_settings.xml" These files also contain pro‐

grammed instructions for dis‐

playing the dialog forms and

parameters in SINUMERIK

Operate.

Manufacturer's folder > sub‐

directory "appl" for the appli‐

cations

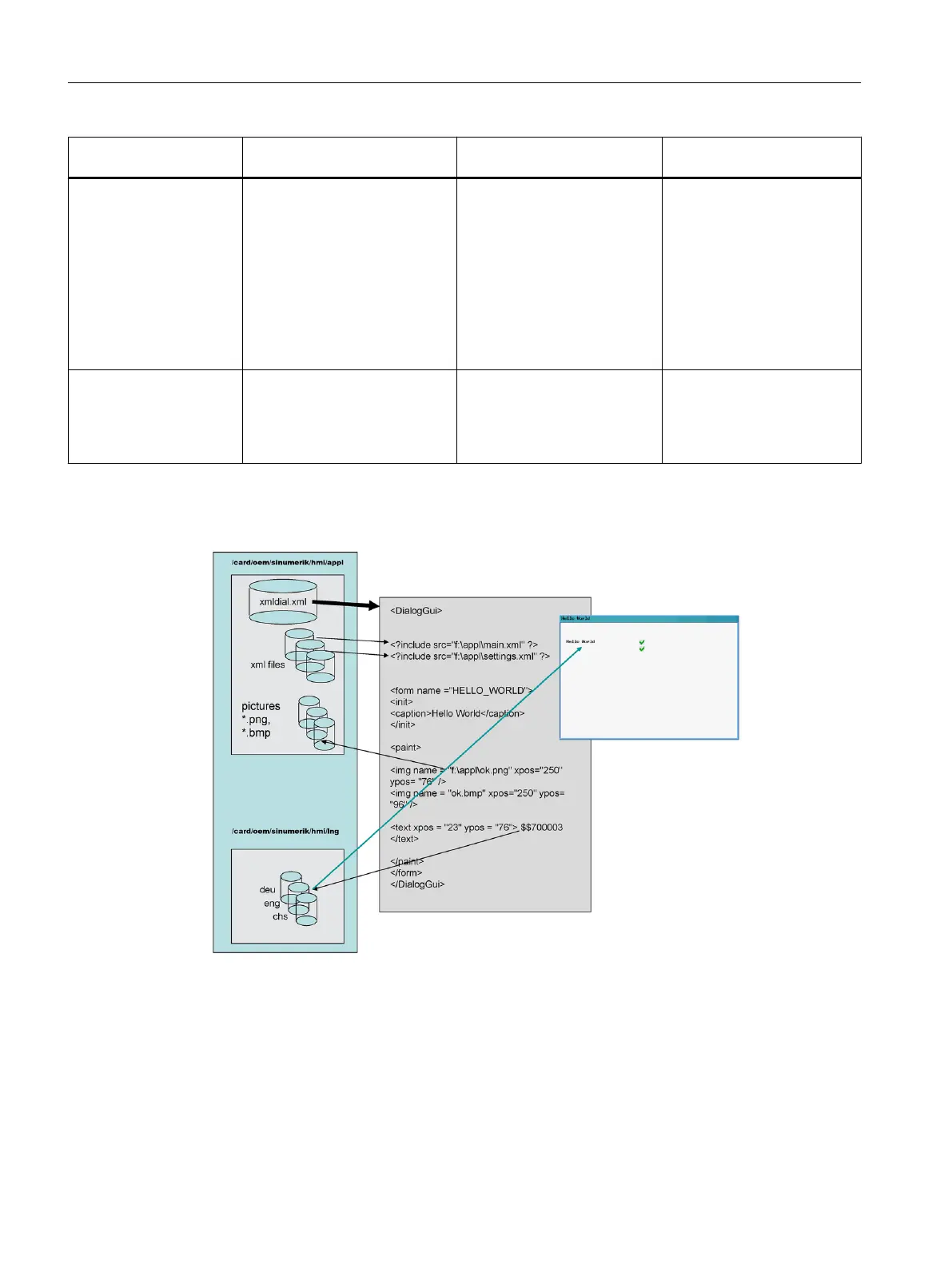

Dependencies of files for configuring user dialogs

Figure 1-4 Dependencies

Generating user dialogs

1.3 Configuration files

Easy XML

10 Programming Manual, 10/2015, 6FC5397-3DP40-5BA3
