RM0440 Rev 4 1287/2126
RM0440 General-purpose timers (TIM2/TIM3/TIM4/TIM5)
1343

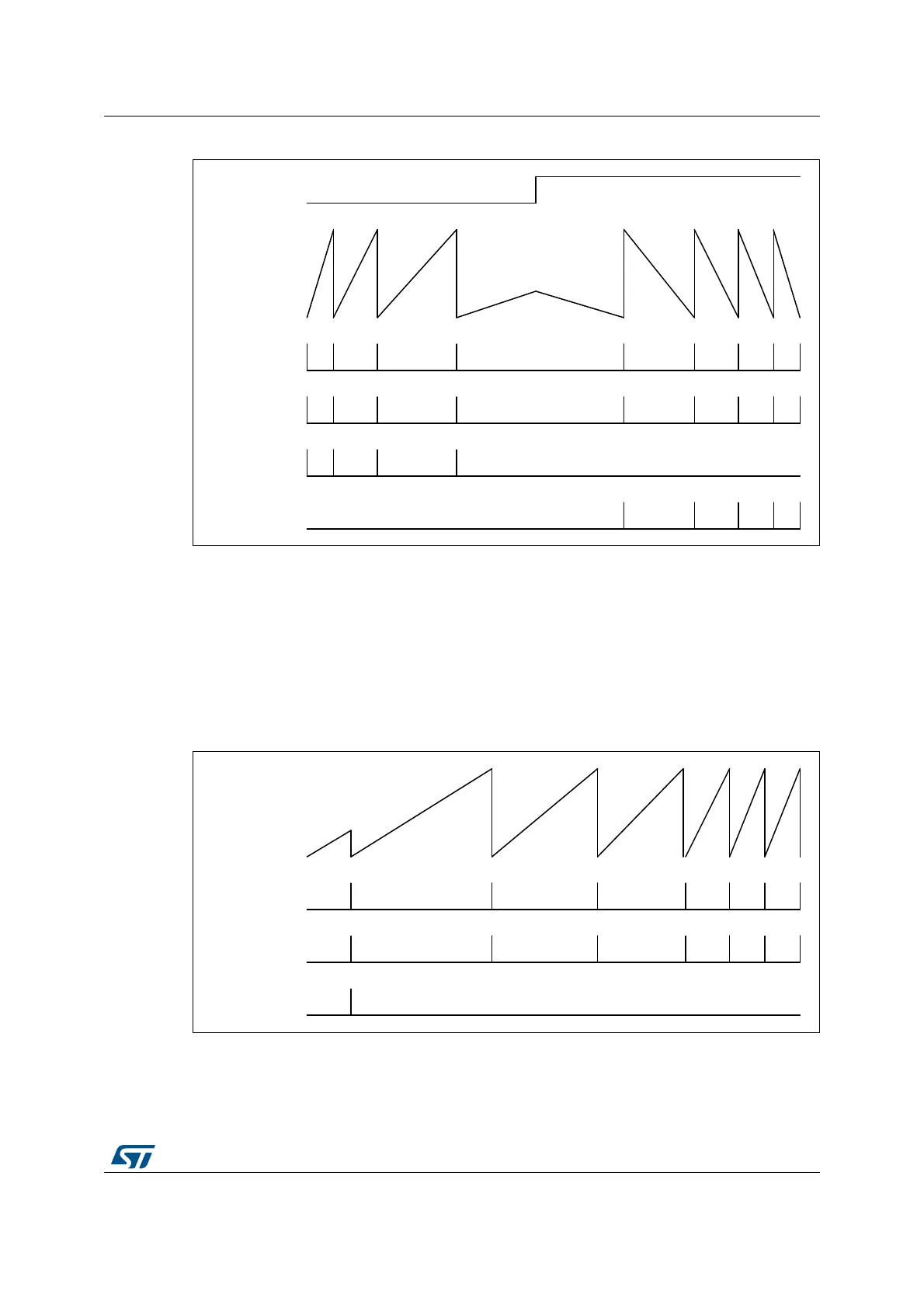

Figure 420. Directional index sensitivity
Special first index event management
The FIDX bit in the TIMx_ECR register allows the Index to be taken only once, as shown on
the Figure 421 below. Once the first index has arrived, any subsequent index will be
ignored. If needed, the circuitry can be re-armed by writing the FIDX bit to 0 and setting it
again to 1.
Note: When FIDX = 1, the index can be issued twice (IDXF flag set) if the direction changes at
position 0 (index active).
Figure 421. Counter reset as function of FIDX bit setting
MSv45774V1
Index input
DIR bit
Counter
Counter reset
IDIR[1:0]=00
IDIR[1:0]=01
IDIR[1:0]=10
UP-counting Down-counting
MSv45775V1
Index input
Counter
Counter reset
FIDX = 0
FIDX = 1
