RM0440 Rev 4 879/2126
RM0440 High-resolution timer (HRTIM)
1083

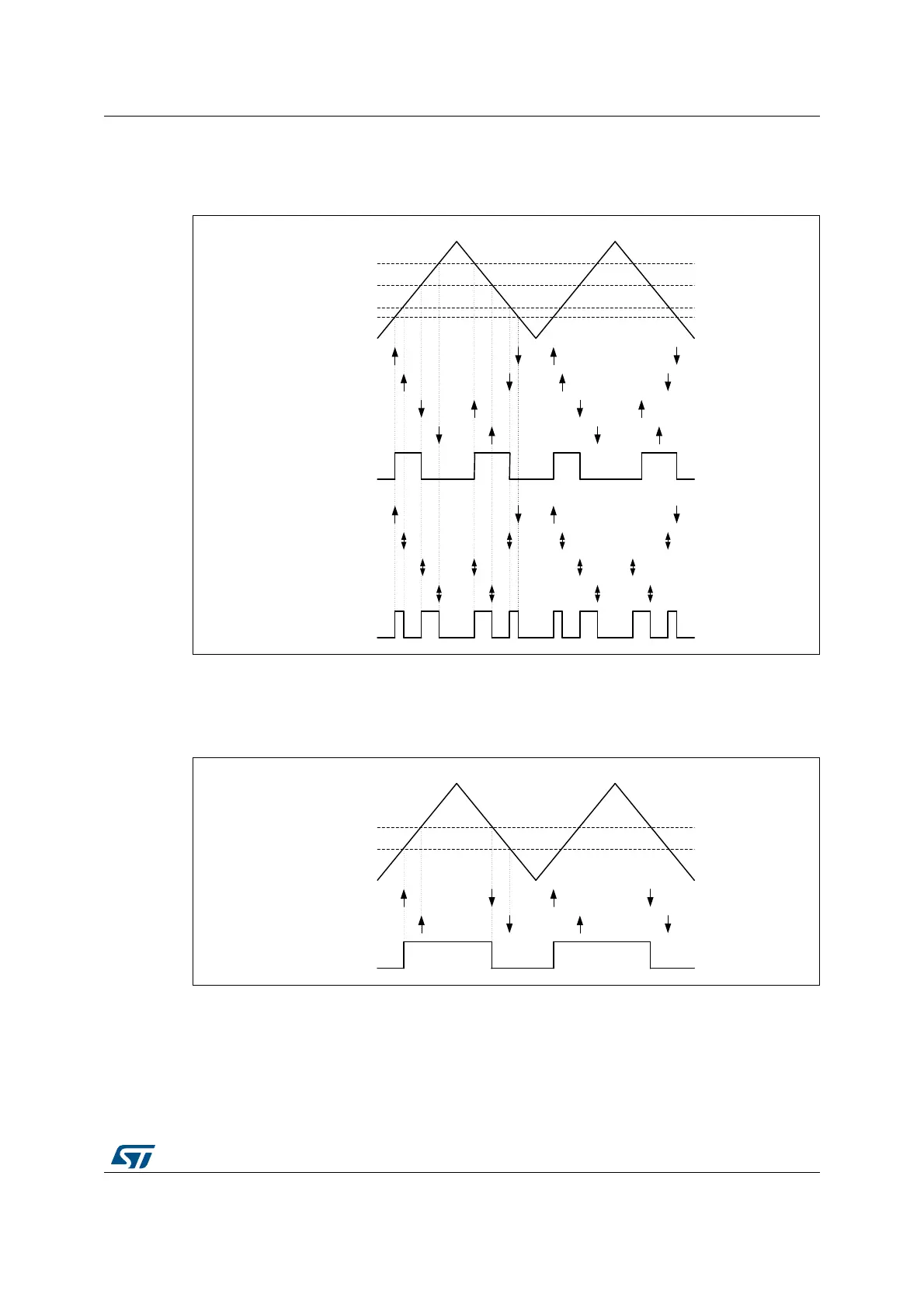

The Figure 206 below shows how to generate some more complex waveforms, using the 4
available compare units and the toggle mode.
Figure 206. Complex symmetric waveform in up-down counting mode
The Figure 207 shows how to generate an asymmetric waveform. In this case, it must be
noticed that it is necessary to have compare 2 value greater than compare 1 value for the
waveform to be asymmetric.
Figure 207. Asymmetric waveform in up-down counting mode
Note: For asymmetric operation, it is required that CMP2 > CMP1.
MSv45798V2
Counter
HRTIM_CHx1
Set on CMP1
Set on CMP1
Toggle on CMP4
HRTIM_CHx2
CMP1
CMP2
CMP3
CMP4
Set on CMP2
Reset on CMP3
Reset on CMP4
Toggle on CMP2
Toggle on CMP3
MSv47417V2
Counter
HRTIM_CHx2
Set on CMP1
CMP1
CMP2
Set on CMP2
