High-resolution timer (HRTIM) RM0440
884/2126 RM0440 Rev 4
Figure 214 below shows how the repetition counter is decremented in up-down counting
mode.

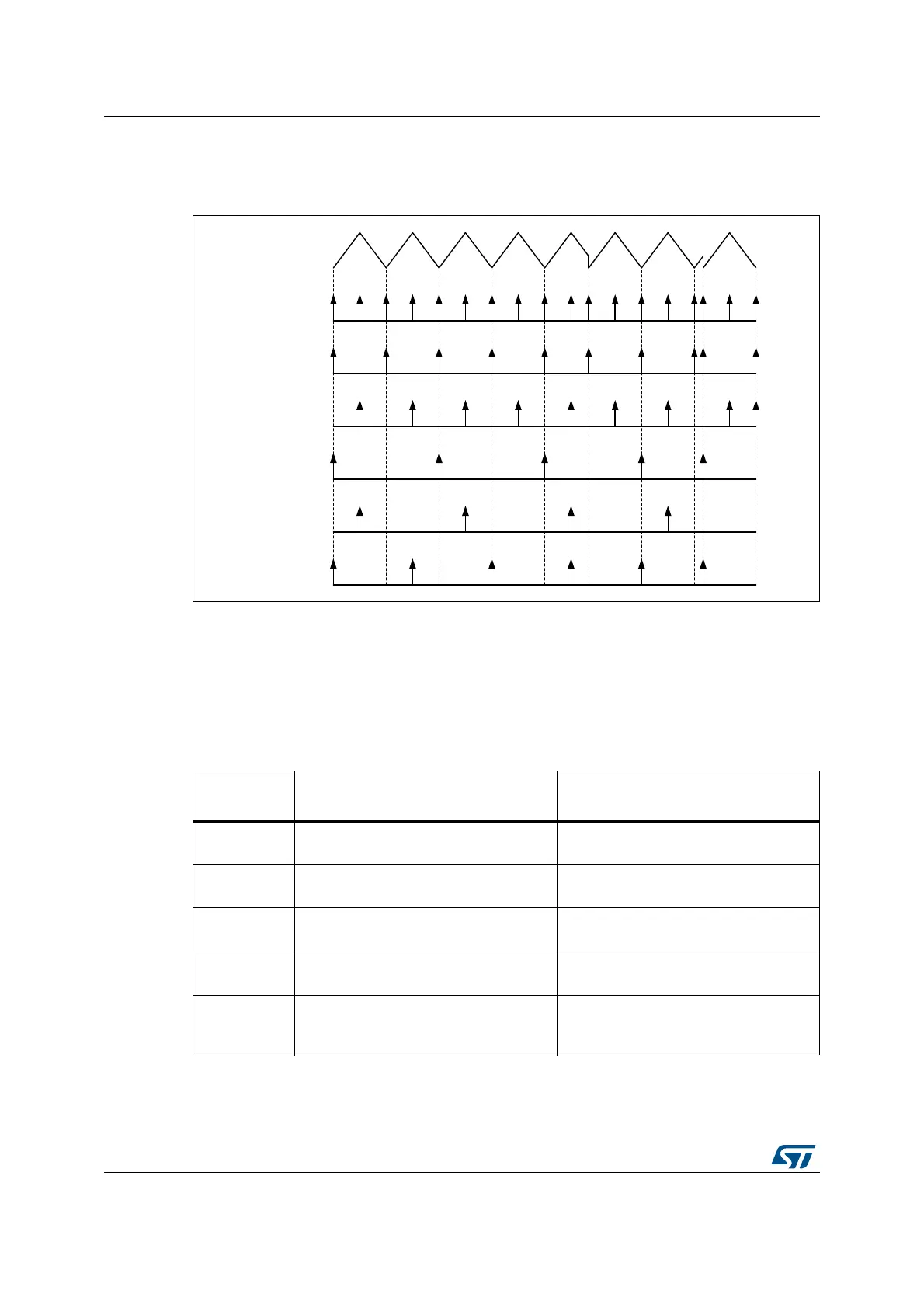

Figure 214. Repetition counter behavior in up-down counting mode
The dual channel DAC triggers are working as for the up-counting mode.
The event blanking and windowing differs so as to have the blanking or windowing done
within the output pulse, at a programmable time. The EExFLTR[3:0] codes are depending
on the UDM bit setting, as per the Table 221 below. Whenever the roll-over event is used for
blanking or windowing, the ROM[1:0] programming applies for defining when it is
generated.
Table 221. EExFLTR[3:0] codes depending on UDM bit setting
EE1FLTR[3:0]
Up-counting mode
(UDM = 0)
Up/down-counting mode
(UDM = 1)
0010
Blanking from counter reset/roll-over to
compare 2
Blanking from compare 1 to compare 2,
only during the up-counting phase
0100
Blanking from counter reset/roll-over to
compare 4
Blanking from compare 3 to compare 4,
only during the up-counting phase
1101
Windowing from counter reset/roll-over
to compare 2
Windowing from compare 2 to compare
3, only during the up-counting phase
1110
Windowing from counter reset/roll-over
to compare 3
Windowing from compare 2 to compare
3, only during the down-counting phase
1111
Windowing from another timing unit:
TIMWIN source (see Table 19 for details)
Windowing from compare 2 during the
up-counting phase to compare 3 during
the down-counting phase
MSv47421V1
REP = 2
ROM[1:0] = 00
REP = 1
ROM[1:0] = 10
REP = 1
ROM[1:0] = 01
REP = 0
ROM[1:0] = 10
REP = 0
ROM[1:0] = 01
REP = 0
ROM[1:0] = 00
Counter
