RM0440 Rev 4 1885/2126
RM0440 Inter-integrated circuit (I2C) interface
1928

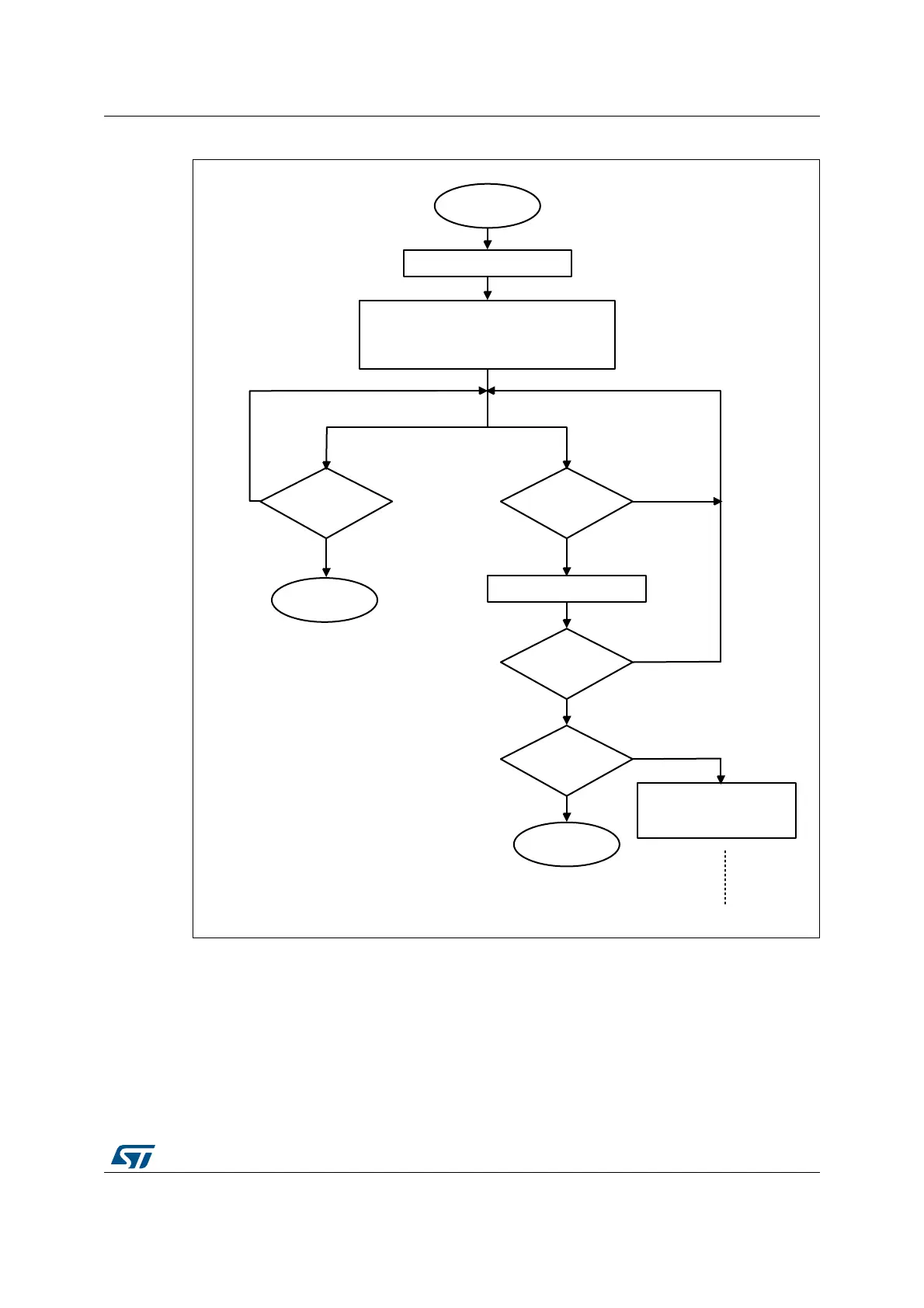

Figure 646. Transfer sequence flowchart for I2C master transmitter for N≤255 bytes
MS19860V2
Master initialization
Master
transmission
Write I2C_TXDR
I2C_ISR.TXIS
=1?
No
Yes
I2C_ISR.NACKF =
1?
Yes
No
NBYTES = N
AUTOEND = 0 for RESTART; 1 for STOP
Configure slave address
Set I2C_CR2.START
End
NBYTES
transmitted?
I2C_ISR.TC =
1?
Yes
End
No
Yes
No
Set I2C_CR2.START with
slave addess NBYTES ...
