High-resolution timer (HRTIM) RM0440
880/2126 RM0440 Rev 4
The behavior of the software forcing bits and external events EXTEVNT1..10 is identical for
up-only and up-down counting mode. The Figure 208 below shows how a pulse can be
shorten in response to external events.

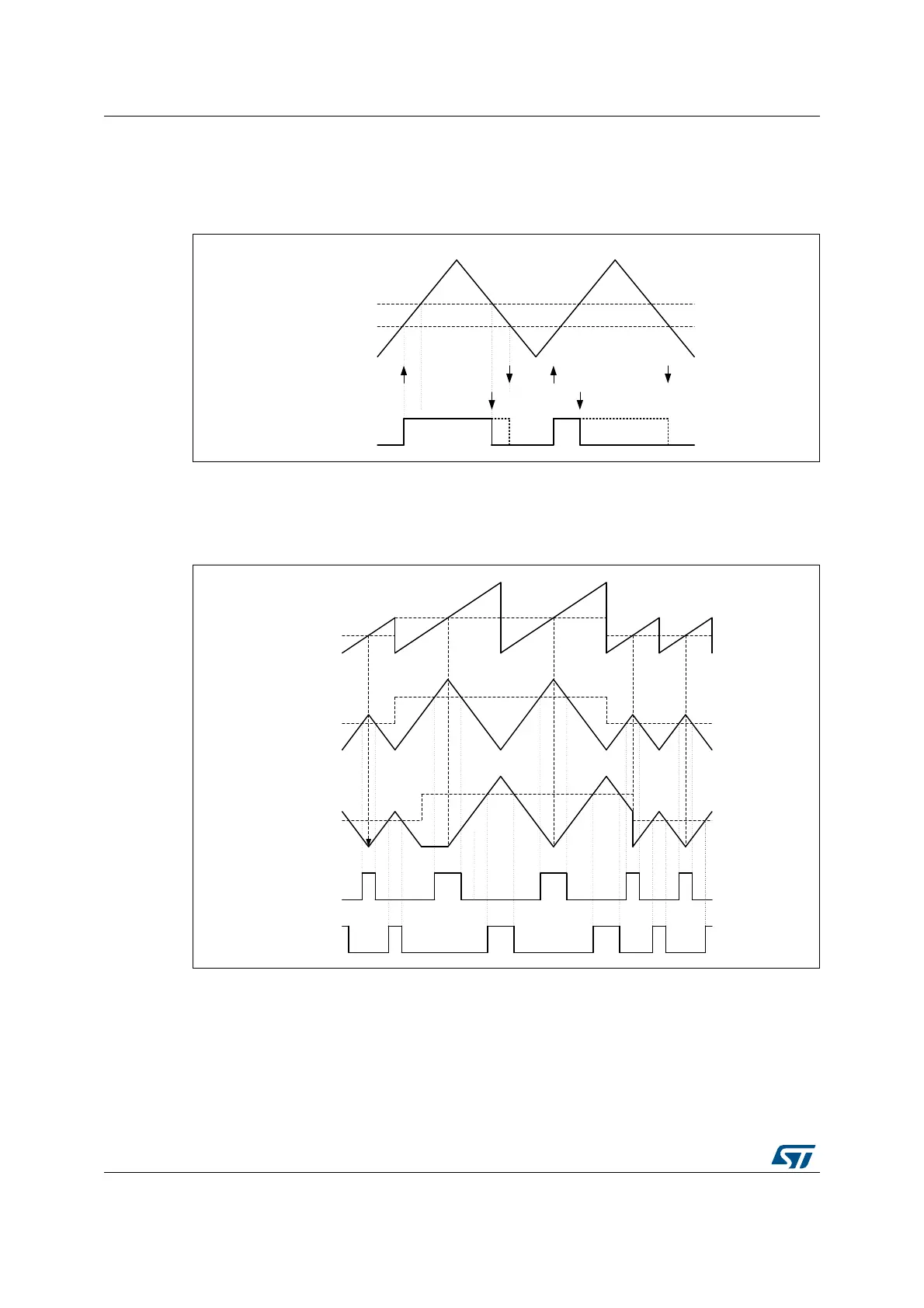

Figure 208. External event management in up-down counting mode
The up-down counting mode is available for both continuous and single-shot (retriggerable
and non-retriggerable) operating modes. A reset causes the counter to re-start from 0. The
Figure 209 below shows the counter behavior in single-shot retriggerable mode, for TimB.
Figure 209. Interleaved up-down counter operation
MSv47418V2
Counter
HRTIM_CHx2
Set on CMP1
CMP1
CMP2
External event 1
MSv47419V2
HRTIM_CHy1
TimA
Master
HRTIM_CHx1
TimB
Master
timer
resets
TIMB
