Flexible static memory controller (FSMC) RM0440
526/2126 RM0440 Rev 4

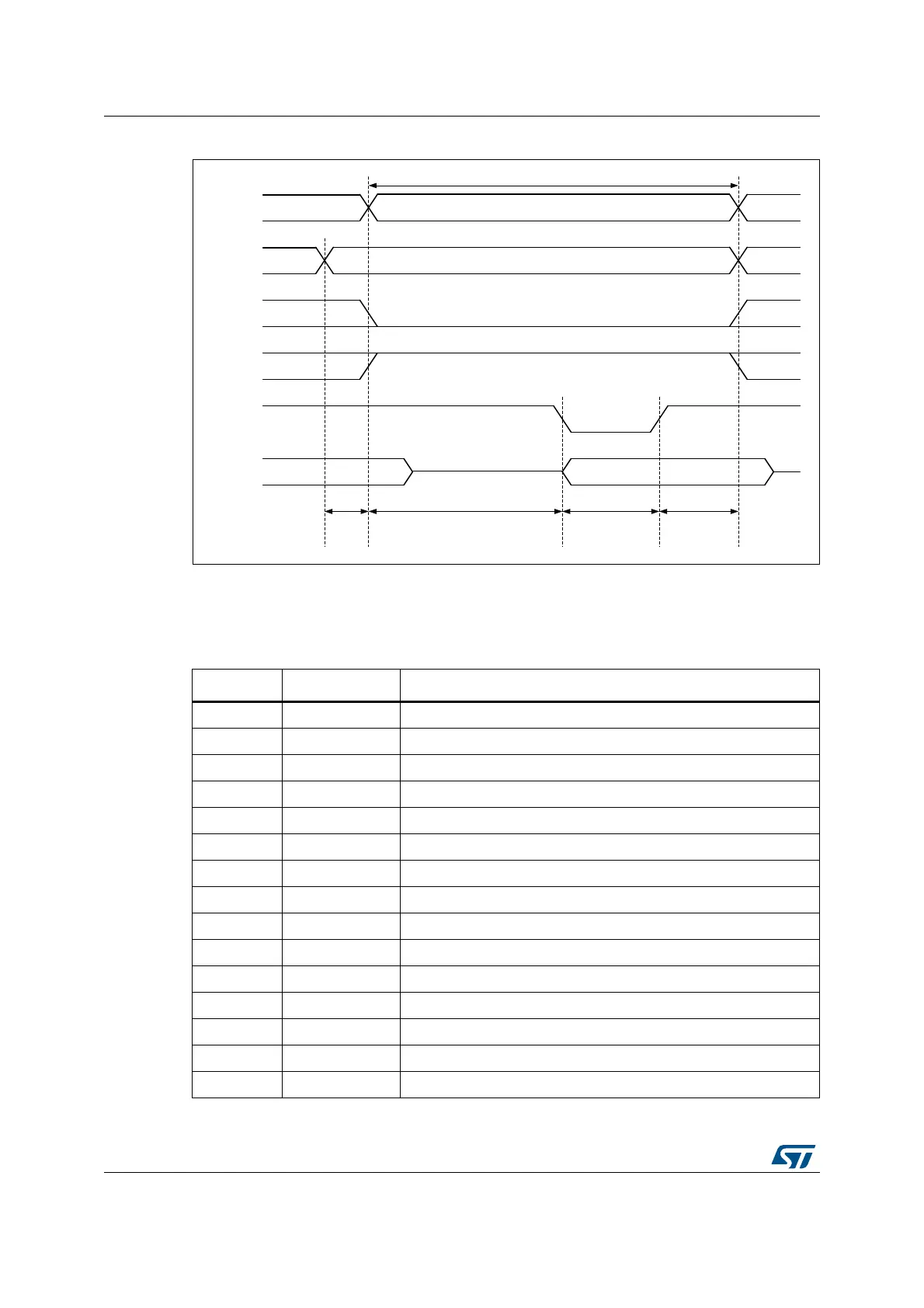

Figure 55. Mode 1 write access waveforms
The DATAHLD time at the end of the read and write transactions guarantee the address and
data hold time after the NOE/NWE rising edge. The DATAST value must be greater than
zero (DATAST > 0).
Table 129. FMC_BCRx bitfields (mode 1)
Bit number Bit name Value to set
31:24 Reserved 0x000
23:22 NBLSET[1:0] As needed
20 CCLKEN As needed
19 CBURSTRW 0x0 (no effect in Asynchronous mode)
18:16 CPSIZE 0x0 (no effect in Asynchronous mode)
15 ASYNCWAIT Set to 1 if the memory supports this feature. Otherwise keep at 0.
14 EXTMOD 0x0
13 WAITEN 0x0 (no effect in Asynchronous mode)
12 WREN As needed
10 Reserved 0x0
9 WAITPOL Meaningful only if bit 15 is 1
8 BURSTEN 0x0
7 Reserved 0x1
6 FACCEN Don’t care
5:4 MWID As needed
MSv41665V1
A[25:0]
Memory transaction
NBL[x:0]
NEx
NOE
Data driven by controller
NWE
Data bus
NBLSET
HCLK
cycles
ADDSET HCLK cycles DATAST HCLK cycles DATAHLD +1
HCLK cycles
