Advanced-control timers (TIM1/TIM8/TIM20) RM0440
1102/2126 RM0440 Rev 4

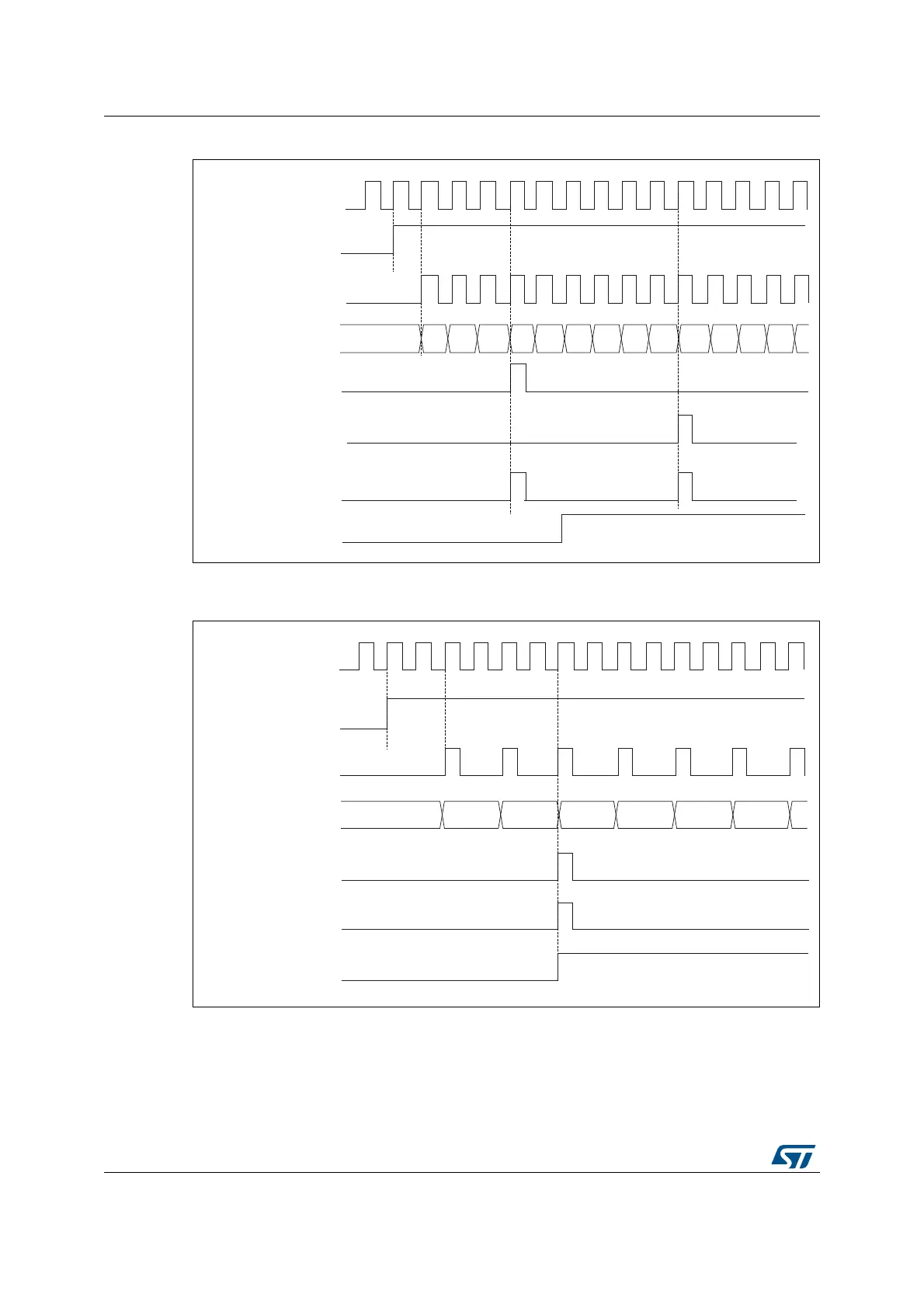

Figure 283. Counter timing diagram, internal clock divided by 1, TIMx_ARR = 0x6
1. Here, center-aligned mode 1 is used (for more details refer to Section 28.6: TIM1/TIM8/TIM20 registers).
Figure 284. Counter timing diagram, internal clock divided by 2
MSv62310V1
tim_psc_ck
tim_cnt_ck
Counter register
Update event (UEV)
Counter overflow
Update interrupt flag
(UIF)
00020304
05
06
01
CEN
02 03 0401 05 0304
Counter underflow
MSv62311V1
tim_psc_ck
CEN
tim_cnt_ck
Counter register
Update event (UEV)
Counter underflow
Update interrupt flag
(UIF)
0003
0002
0001
0000
0001
0002
0003
